Procedures

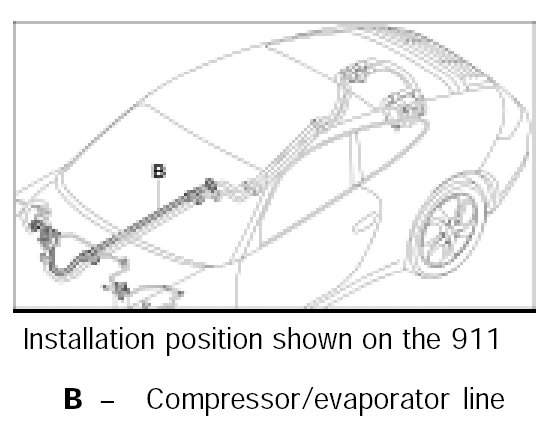

Laying Compressor/Evaporator Line







NOTE: Close off all lines and connections using suitable plugs during removal. Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.

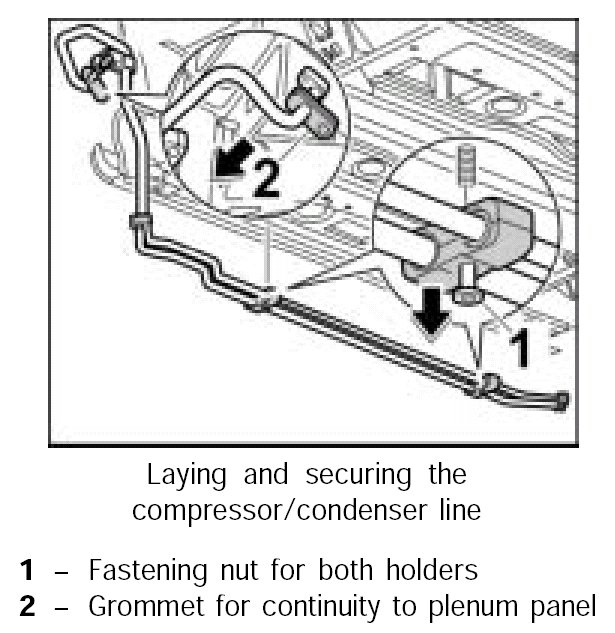

Remove the compressor/evaporator line and the compressor/condenser line together.
