Windshield Washer Spray Nozzle: Service and Repair

WM 926619 Removing and installing spray nozzle for windscreen washer system

Preliminary work

Preliminary work for spray nozzle for windscreen washer system

Remove battery cover. -> 27121900 Removing and installing battery cover - section on "Removing" 27121900 Removing and installing battery cover

Removing spray nozzle for windscreen washer system

Information

There are different types of connectors:

- 1) Connectors with release mechanism at the front.

- 2) Connectors with release mechanism at the side.

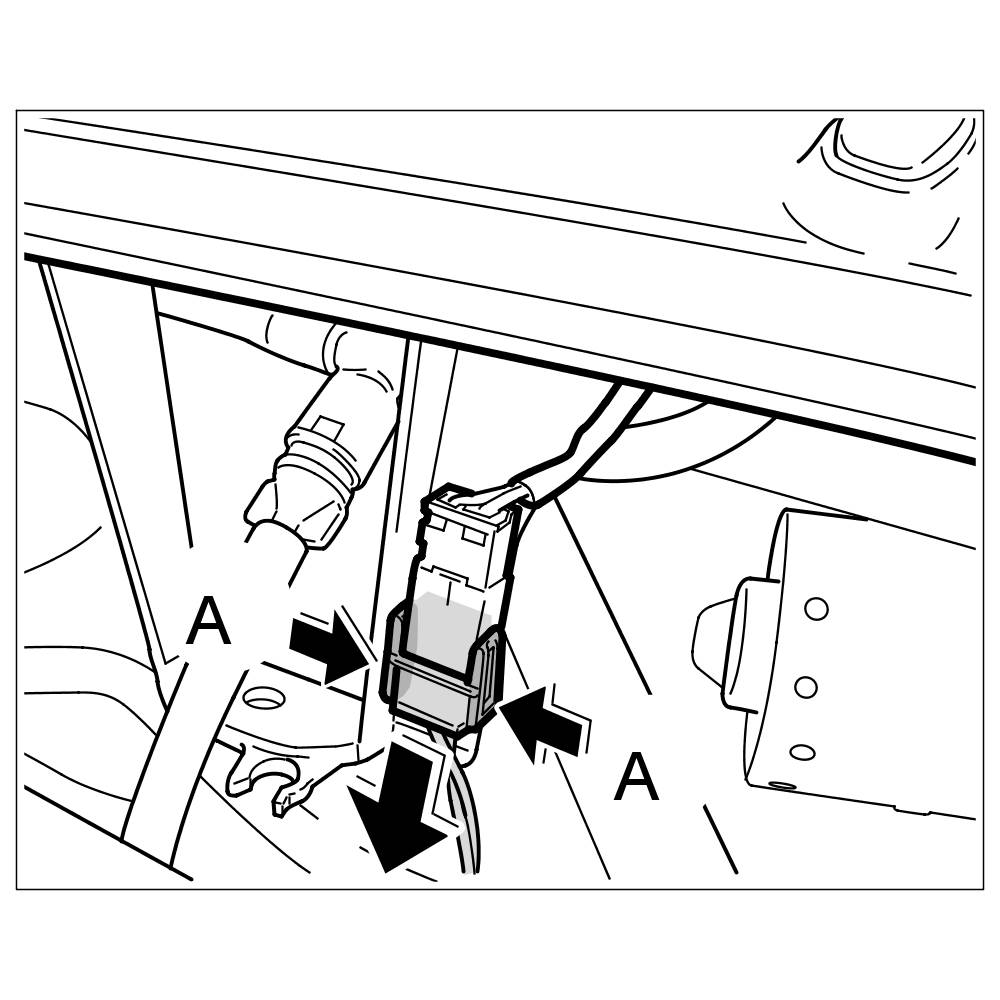

1. Release electric plug connection, e.g. for left spray nozzle -A- and pull it apart.

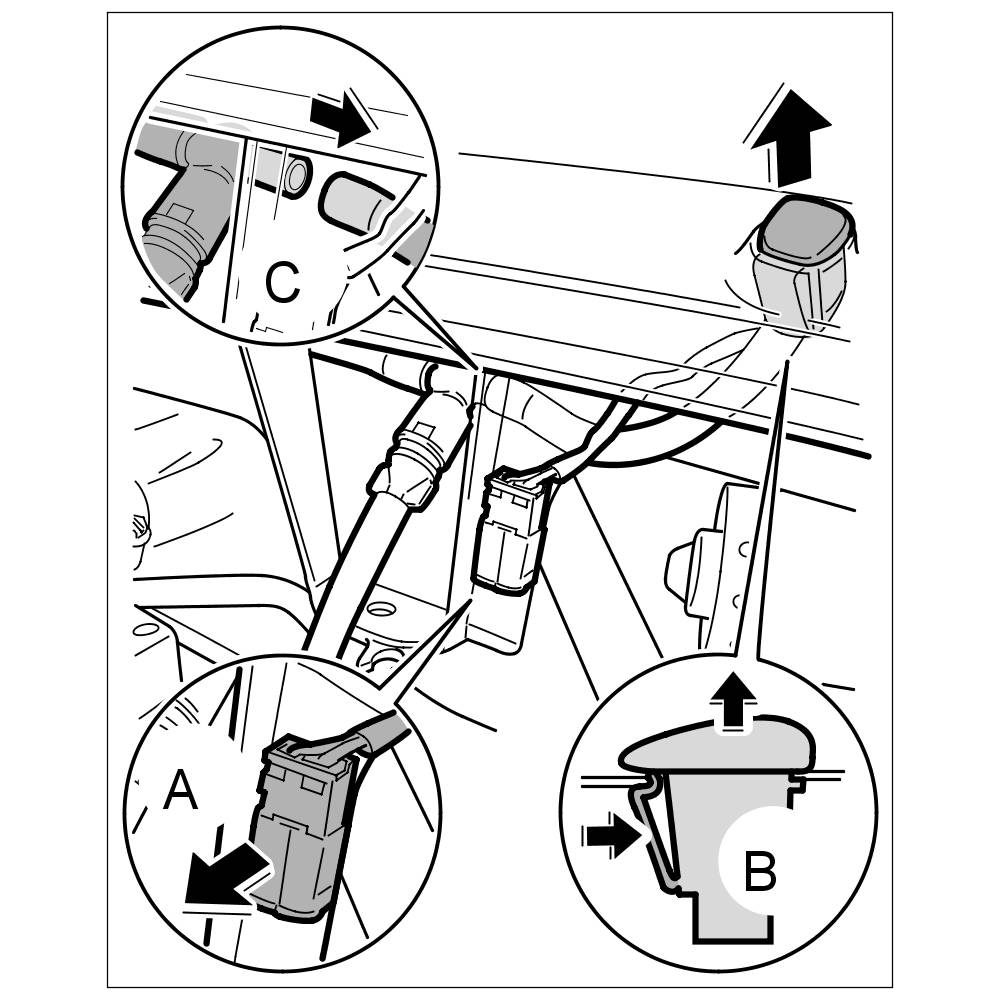

Variant 2: Releasing electric plug connection

2. -A- Release electric connector on the cowl panel cover from underneath (move locking hook to the side) and slide it up out of the cowl panel cover.





Removing spray nozzle

3. -B- Press spray nozzle together from below and push it out of cowl panel cover.
4. -C- Pull water hose off the T-piece (below the cowl panel cover).
5. Pull out spray nozzle with water hose and electric line.

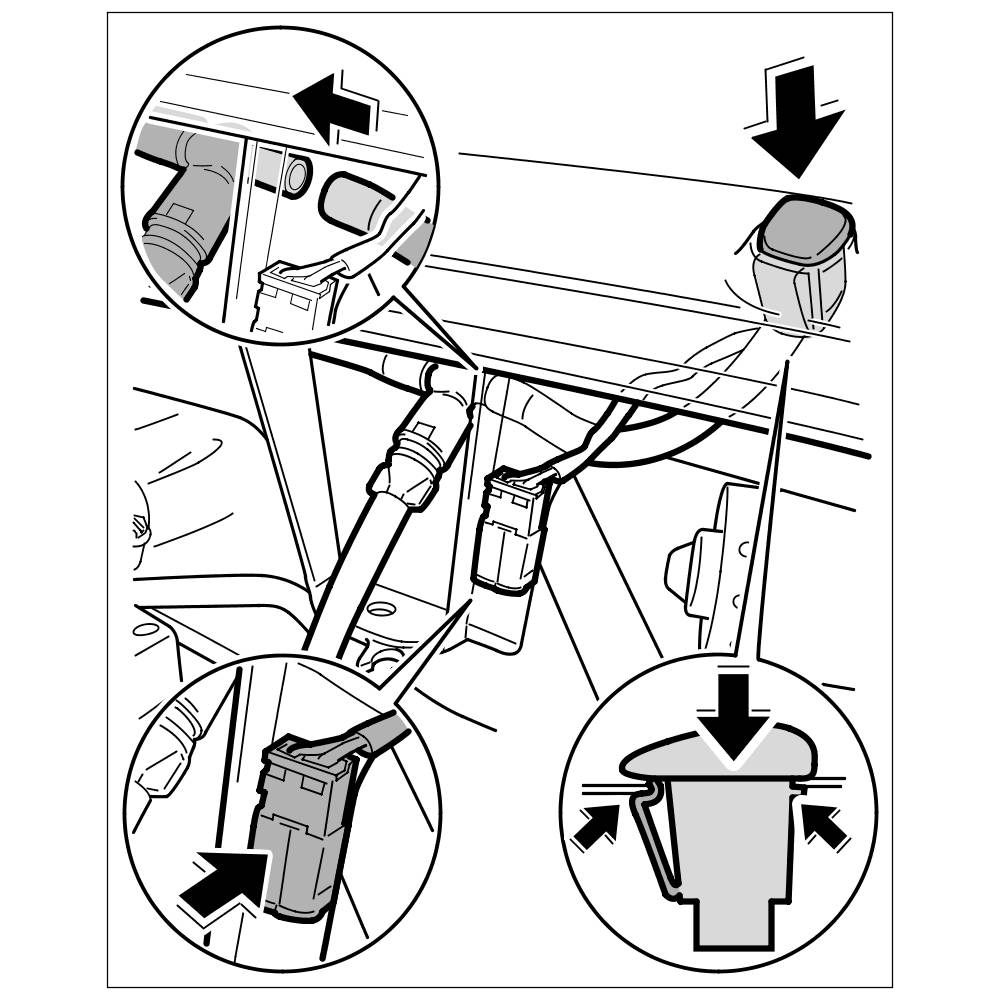

Installing spray nozzle for windscreen washer system

1. Push spray nozzle, together with hose and electric connector, through the cowl panel cover and engage it.





Installing spray nozzle

2. Push water hose onto the T-piece and check that it is seated securely.
3. Push electric connector onto the mount on the cowl panel cover.
4. Plug in electric connector for the spray nozzle until it clicks into place.





Plugging in connector

Subsequent work

Subsequent work for spray nozzle for windscreen washer system

Install battery cover. -> 27121900 Removing and installing battery cover - section on "Installing" 27121900 Removing and installing battery cover.
