Cargo Cover: Service and Repair

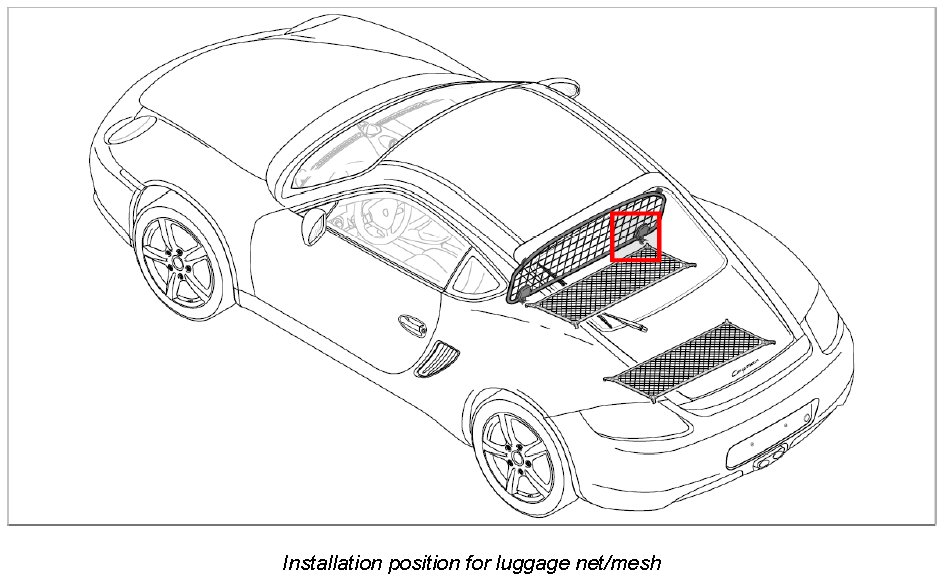

Removing And Installing Luggage Net/Mesh

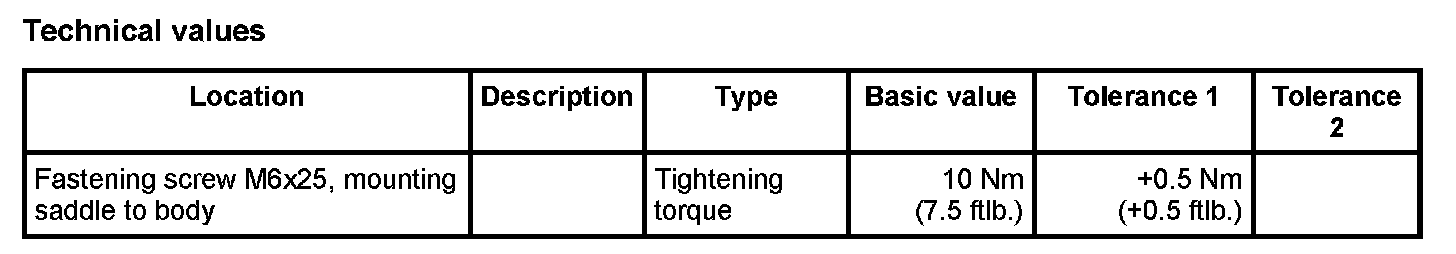

Technical values

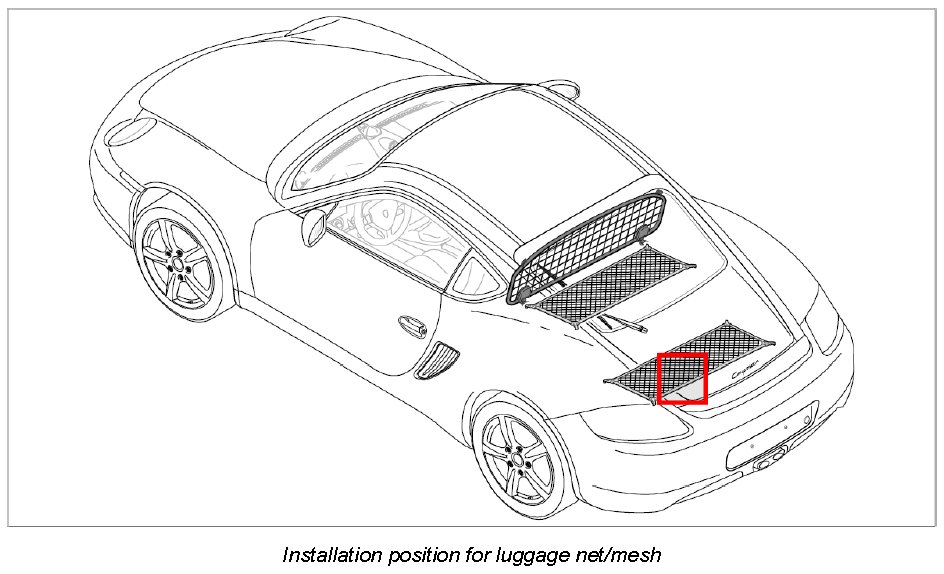

Removing luggage net/mesh

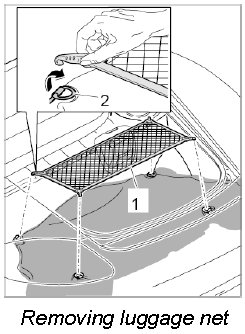

Removing luggage net







1. Open the rear lid.
2. Disengage luggage net -1- from the tie-down rings -2- and remove.

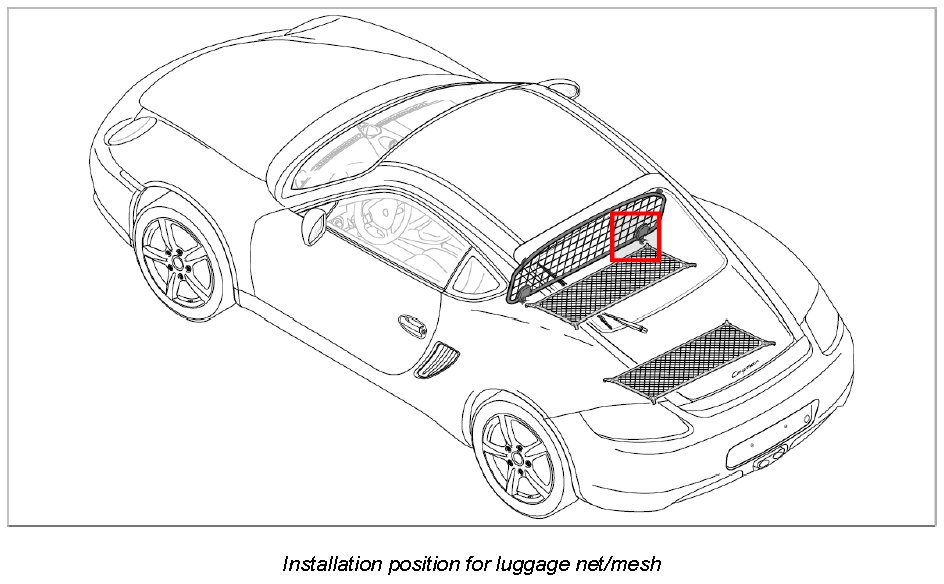

Removing luggage mesh







1. Fold front seat forwards.
2. Open the rear lid.

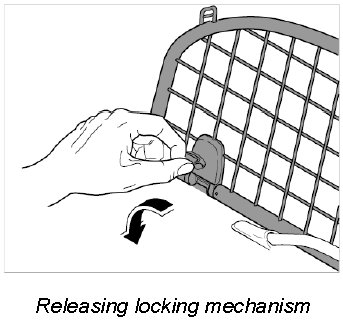

3. Release locking mechanism of luggage mesh right and left in -direction of arrow-.

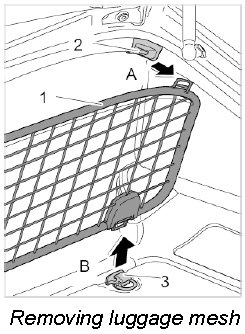

4. Disengage luggage mesh -1- right and left from the bodyshell hooks -2- -Arrow A- and then remove from mounting saddle -3- -Arrow B-.

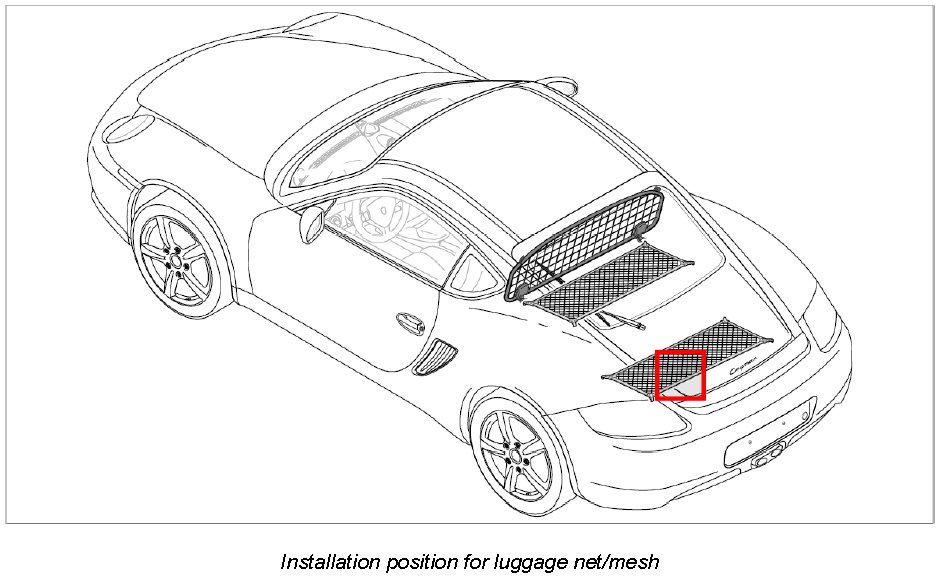

Installing luggage net/mesh

Fitting fastening parts







INFORMATION: If the luggage mesh is retrofitted, the following spare parts must be fitted for the luggage mesh.

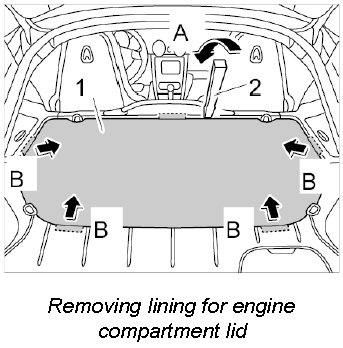

1. Lift lining of engine compartment lid at the front -1- with a plastic wedge -2- -Arrow A- and pull out to the front -Arrows B-.

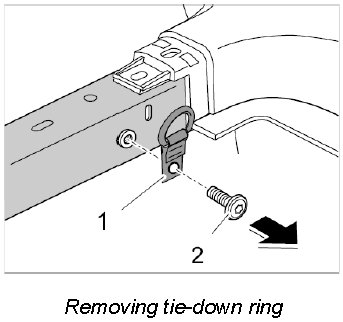

2. Unscrew fastening screw -2- and remove tie-down ring -1- right and left.







3. Position mounting saddle -1- right and left on the body and screw down with fastening screw -2-. Tightening torque: 10 Nm (7.5 ftlb.)+0.5 Nm (+0.5 ftlb.)

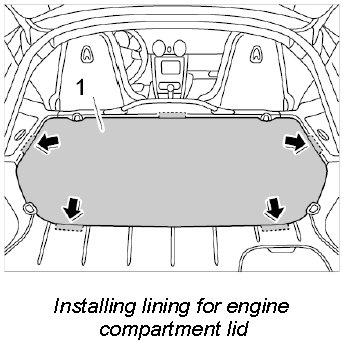

4. Insert lining for engine compartment lid -1- with the clips -arrows- in the mounting points and press downwards.

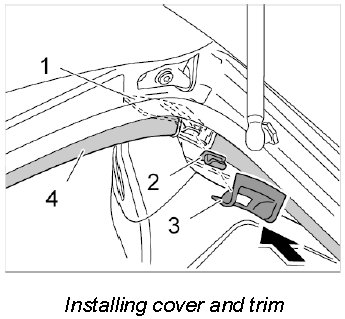

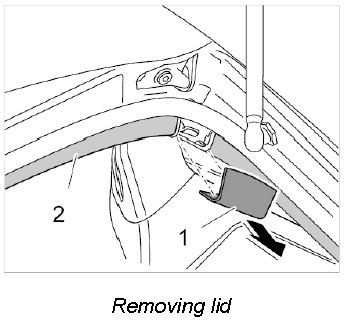

5. Unclip lid -1- right and left from the C-pillar trim panel -2-.







6. Push cover -2- right and left fully onto the bodyshell hooks -1-.







7. Clip trim -3- right and left into the C-pillar trim panel -4-.

Installing luggage mesh

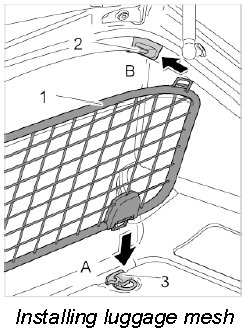

1. Insert luggage mesh -1- right and left in the mounting saddle -3- -Arrow A- and then engage in the bodyshell hooks -2- -Arrow B-.

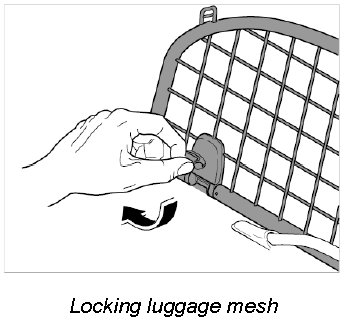

2. Lock the locking mechanism of the luggage mesh right and left in -direction of arrow-.







3. Close rear lid.
4. Fold back front seat.

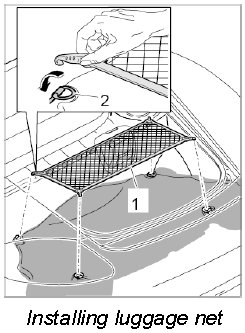

Installing luggage net







1. Position luggage net -1- and engage in the tie-down eyes -2-.







2. Close rear lid.
