Antenna, Radio: Service and Repair

WM 914719 Removing and installing radio antenna

Preliminary work

Preliminary work - radio antenna

=> Removing and installing cowl panel cover -removing

Removing radio antenna

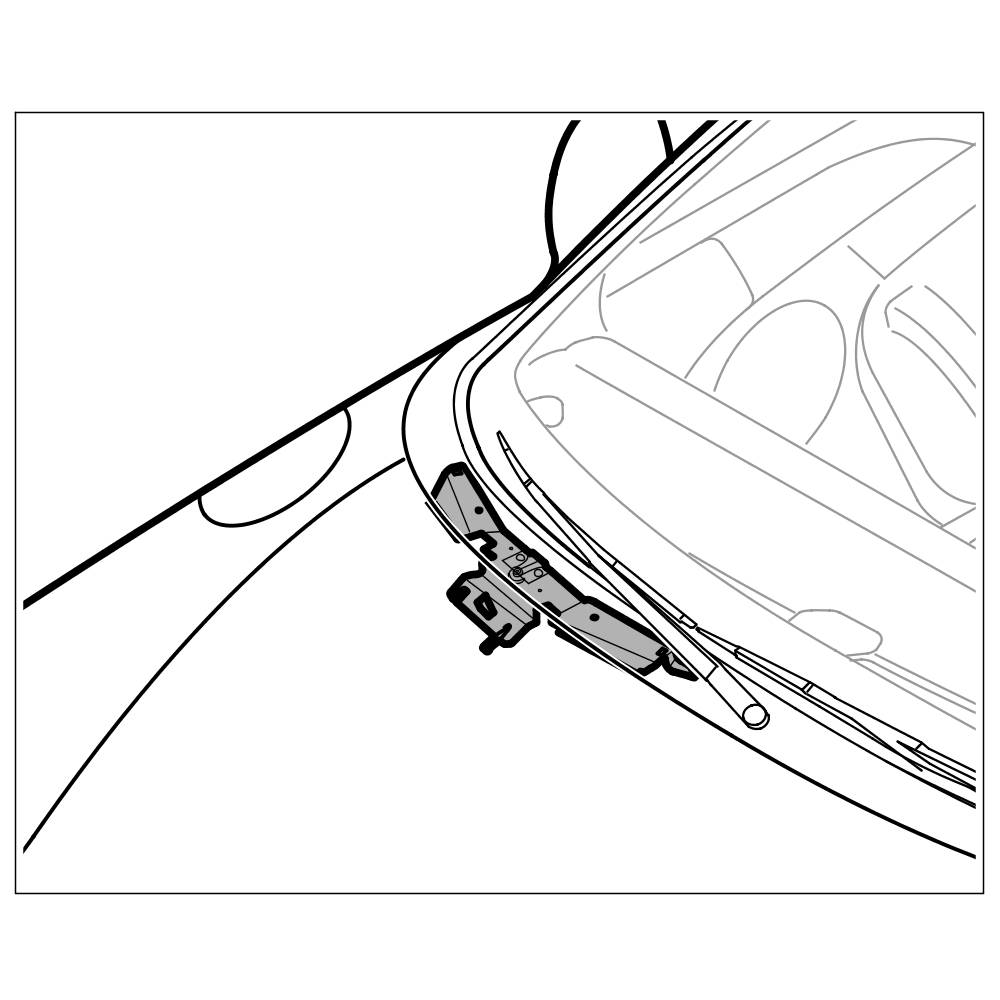

Install location

CAUTION

Voltage peaks can damage the audio system.

-> Before unplugging/removing audio components, remove ignition key and switch off audio system.

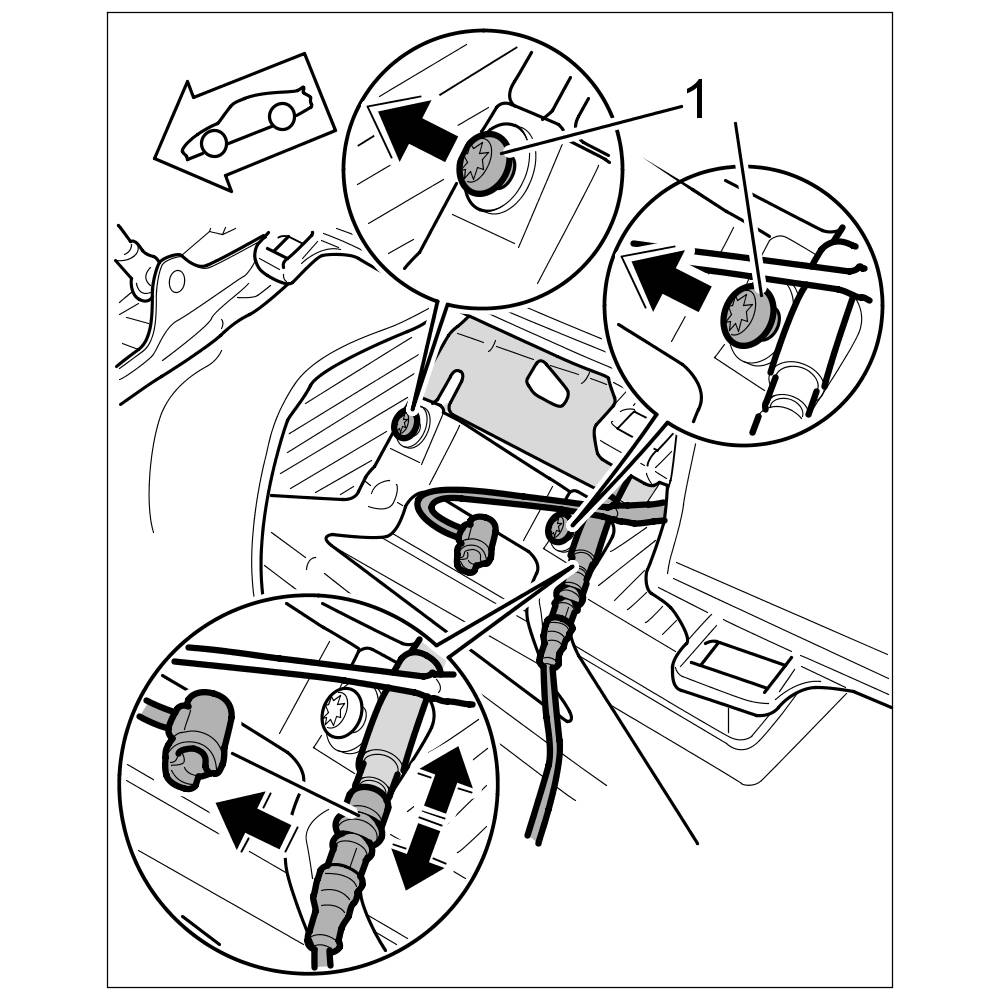

1. Before removing cowl cover, unclip the retaining clamps for the antenna lead. Disconnect antenna lead and undo the fastening screws -1-.





Antenna lead

2. Turn around cowl cover and unscrew the two fastening screws -3-.





Radio antenna installation

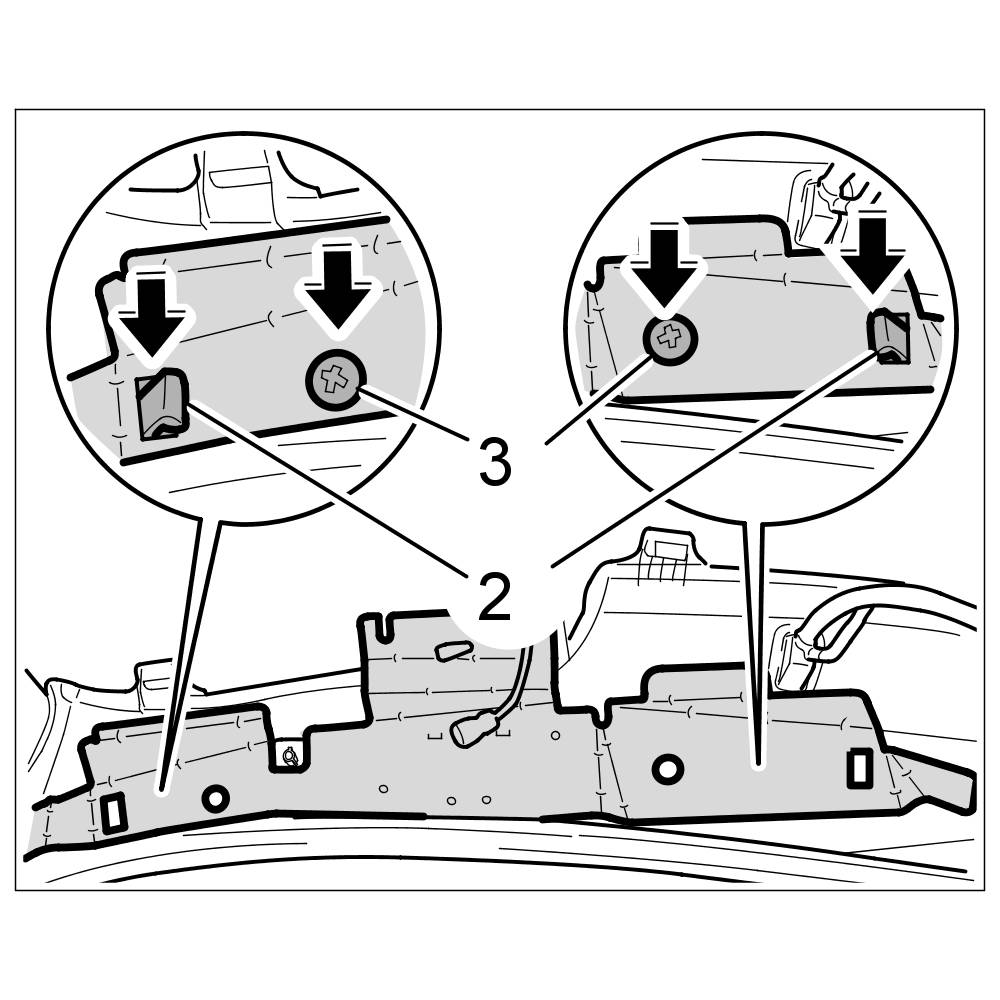

3. Unclip the radio antenna from the cowl in both places -2-.

Installing radio antenna

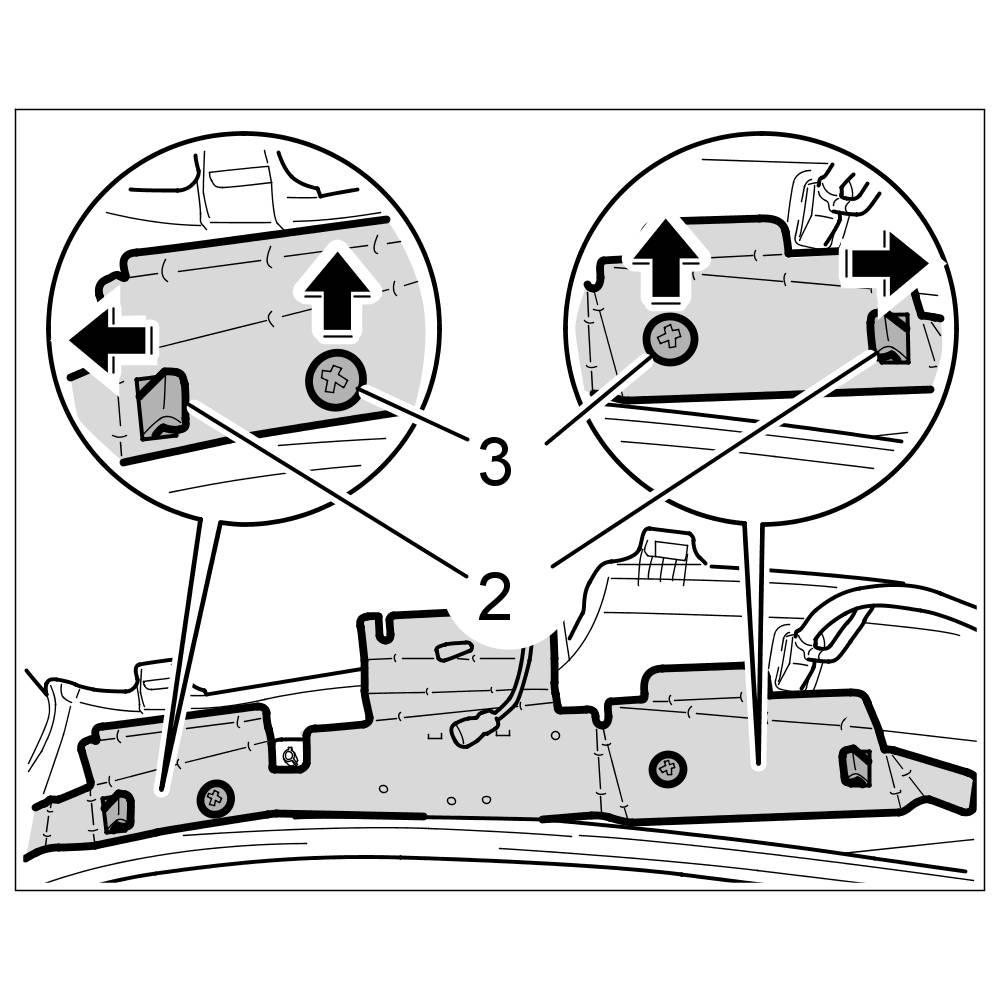

1. Clip the antenna onto the cowl cover to the left and right -2-.





Radio antenna installation

2. Screw down radio antenna with both fastening screws -3-.
3. Connect the antenna lead and clip on the fuse.





Antenna lead

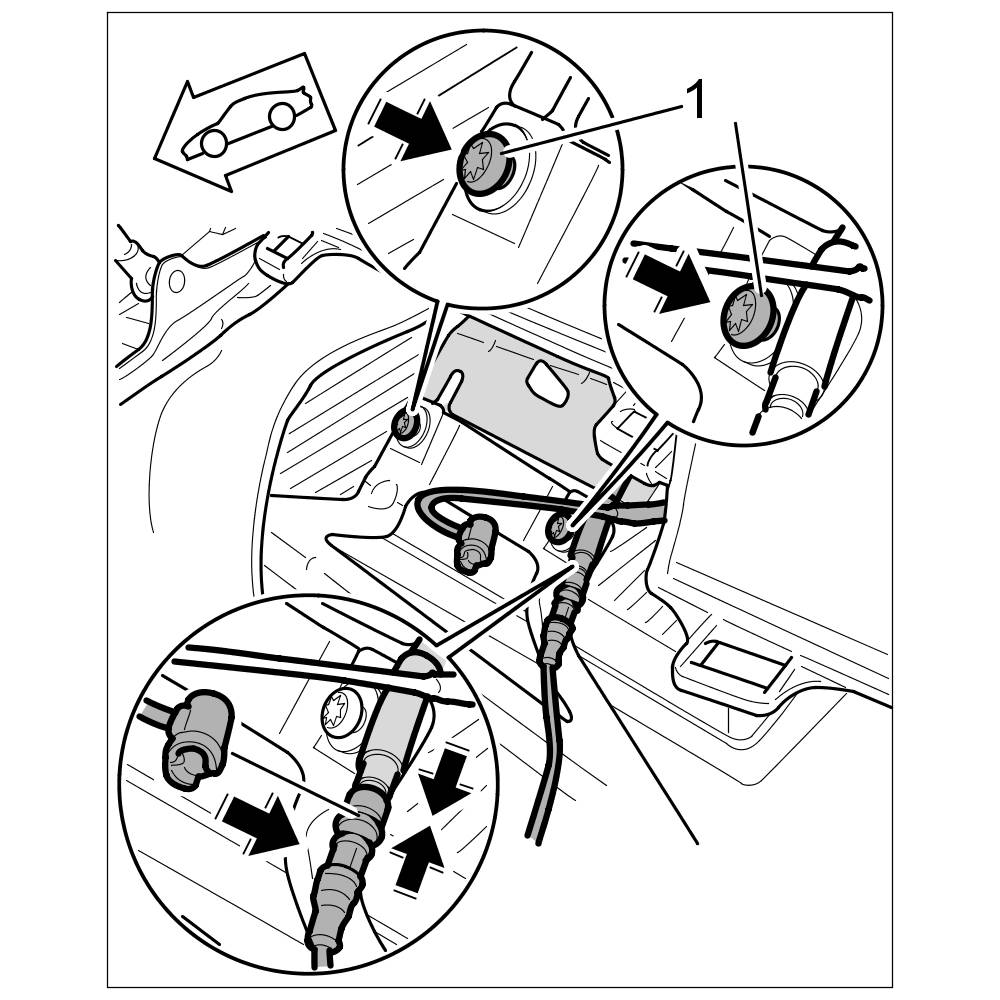

4. Position the antenna on its bracket and screw it down tight with fastening screws -1-.

Subsequent work

Subsequent work - radio antenna

=> Removing and installing cowl panel cover - removing
