556219 Removing and Installing Front Emergency Release

WM 556219 Removing and installing front emergency release

Technical values





Removing front emergency release

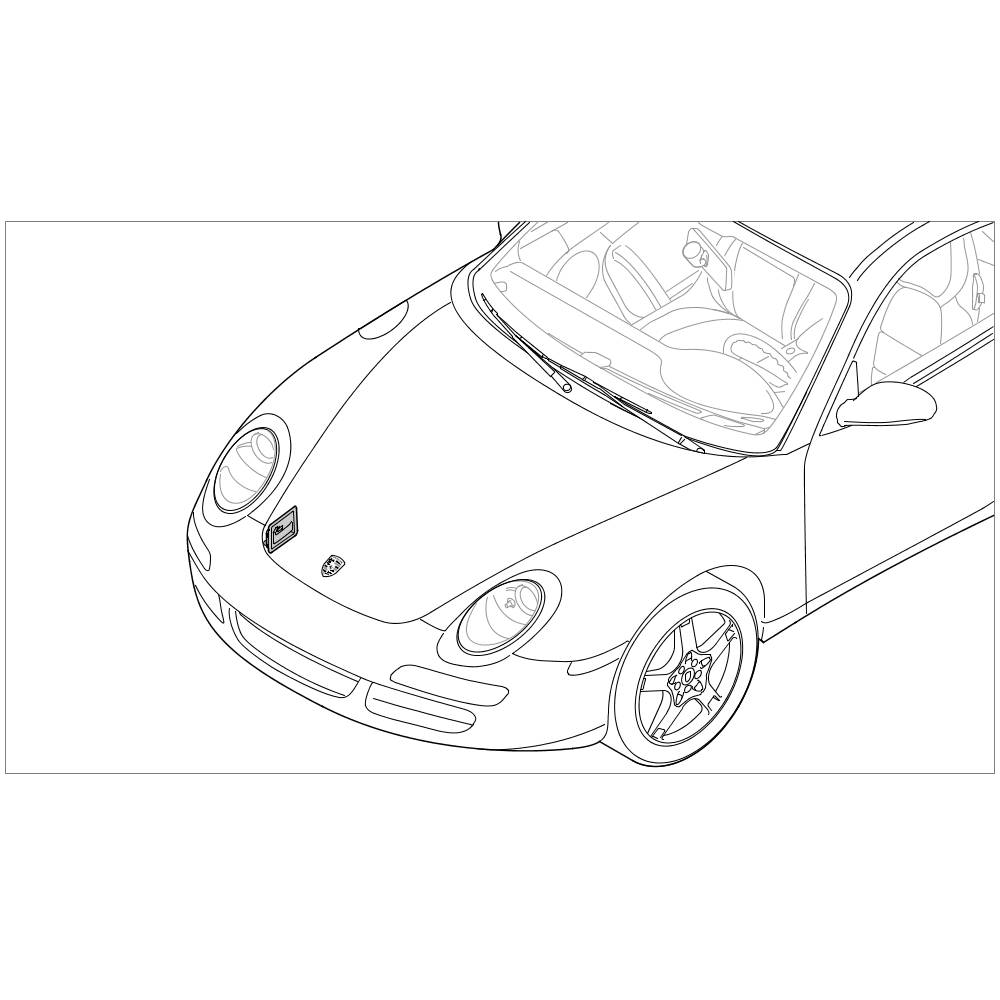

Installation position of front emergency release

1. Open front lid.

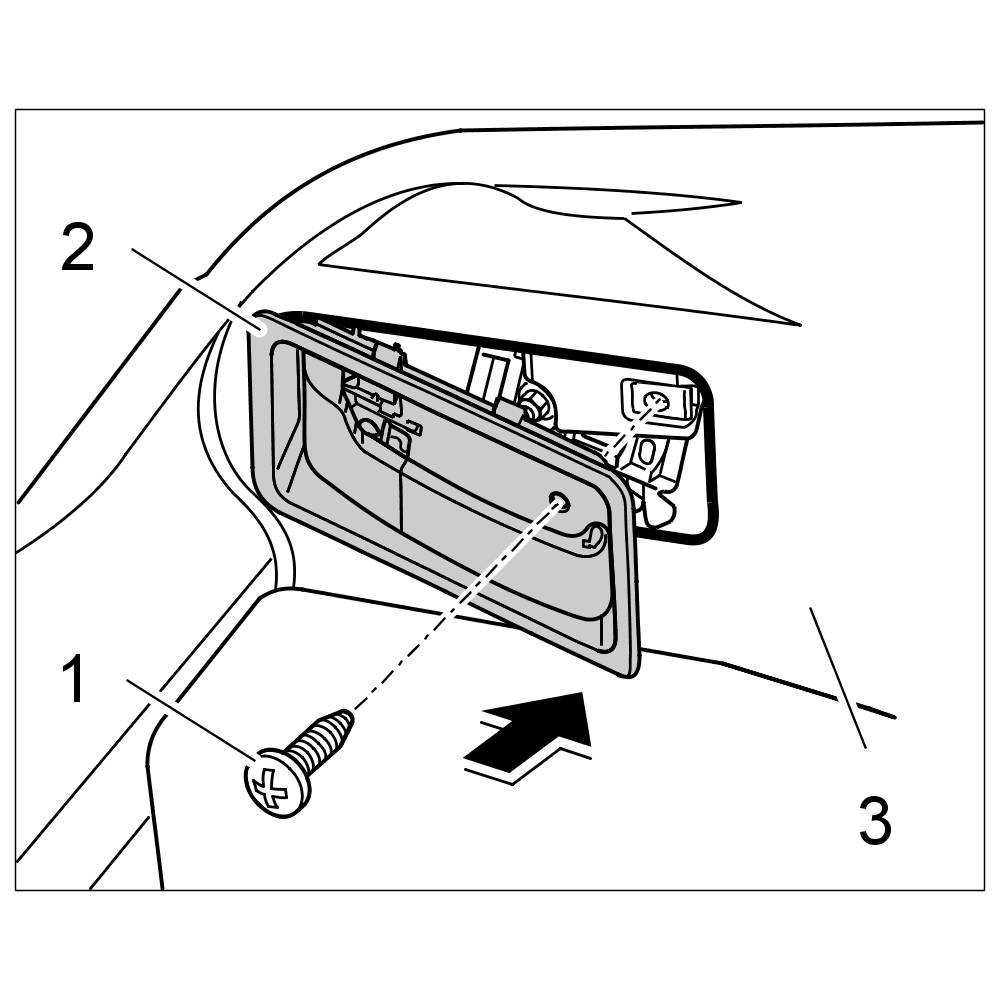

2. Unscrew fastening screw -1- and unclip release handle -2- from the luggage compartment trim -3-.





Removing release handle

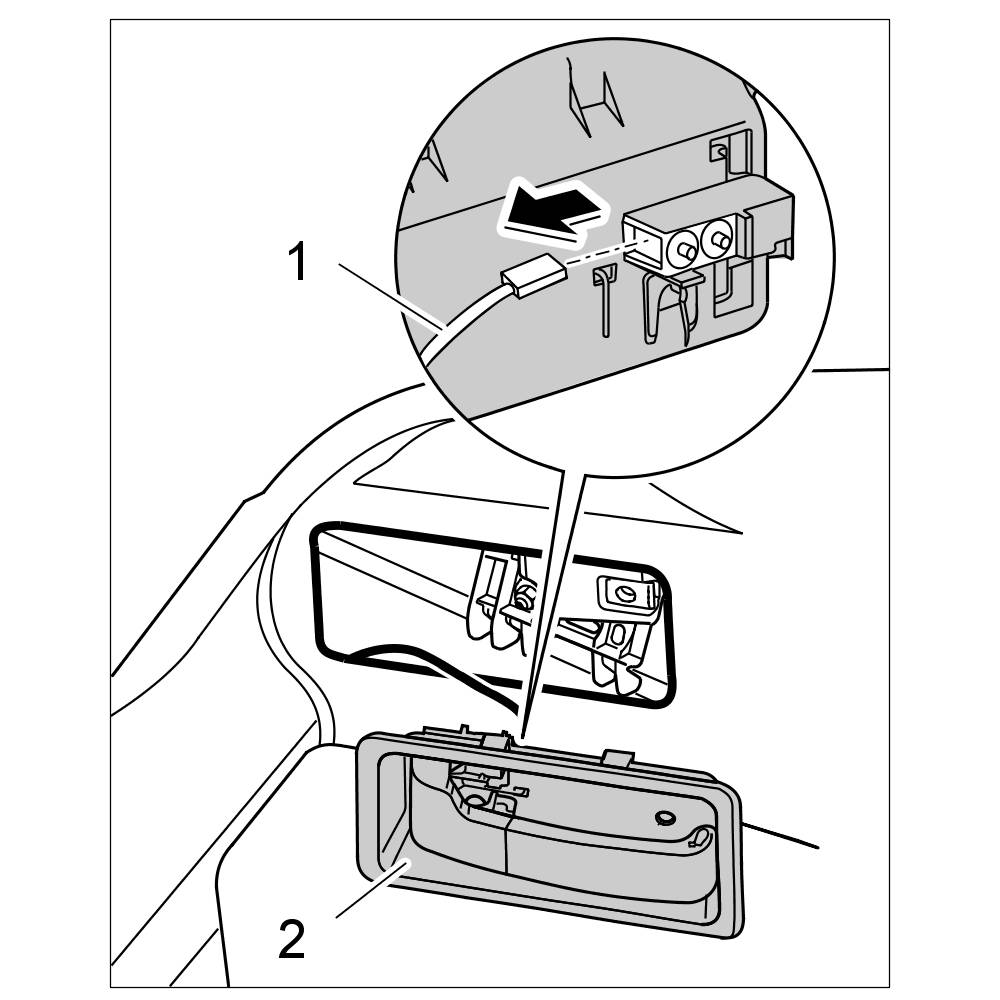

3. Disconnect electric plug connection -1- for microswitch and remove release handle -2-.





Disconnecting plug connection

Installing front emergency release





Installation position of front emergency release

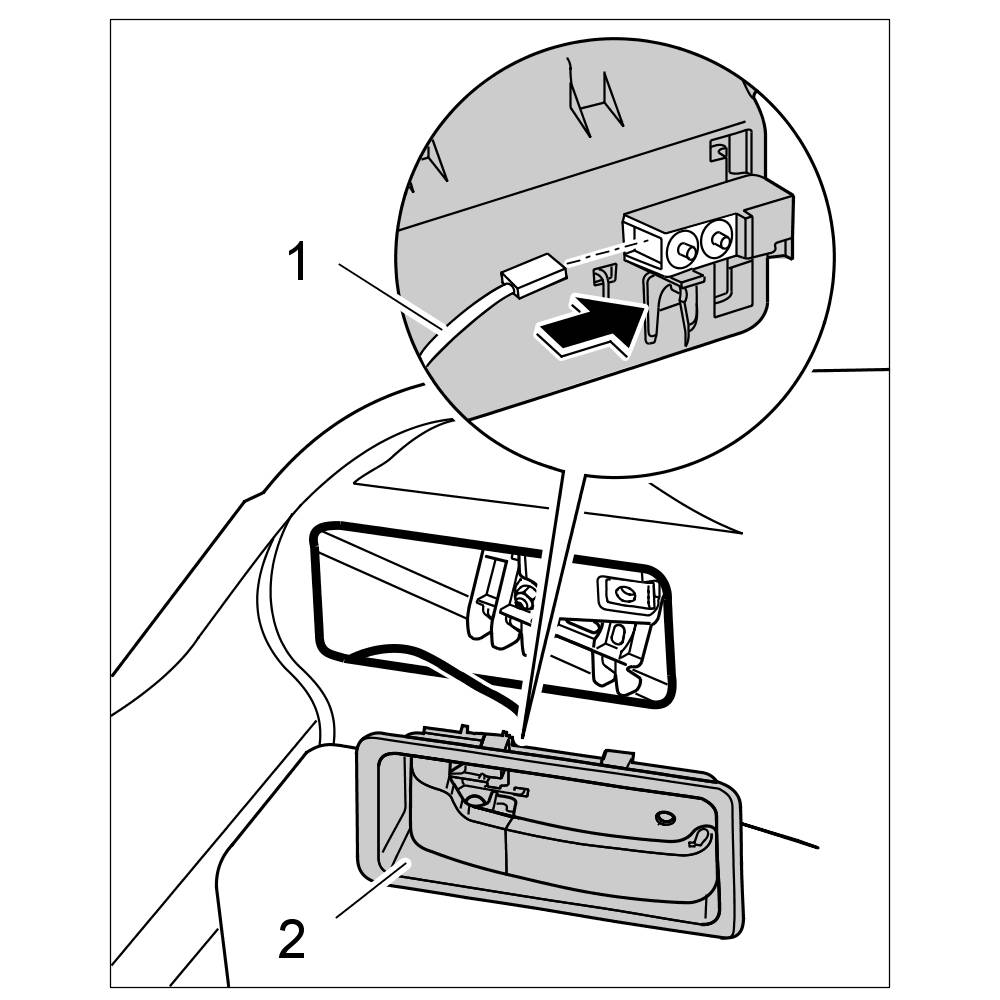

1. Insert electric plug connection -1- for microswitch.





Inserting plug connection

2. Press release handle -2- into the luggage compartment trim -3- and screw in the fastening screw -1-. => Tightening torque:: 2.5 Nm (2 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)





Fastening release handle

3. Check inner luggage compartment release (Trunk Entrapment).

Checking inner release of luggage compartment (Trunk Entrapment)





Overview, emergency release

WARNING

The luggage compartment lid opens when the vehicle is in motion if a person trapped in the luggage compartment unlocks the lid.

- The warning light comes on.

-> Stop the vehicle immediately when the warning lights light up.

1. Check whether the upper part of the lock automatically disengages from the lower part of the lock.
2. => Upper part of lid lock = tool (Porsche spare part) must engage in the lower part of lid lock -direction of arrow-.





Checking the release

3. Unlock unlocking lever in the luggage compartment. Check whether the upper part of the lid lock disengages automatically.
