665019 Removing and installing the rear logo

WM 665019 Removing and installing the rear logo

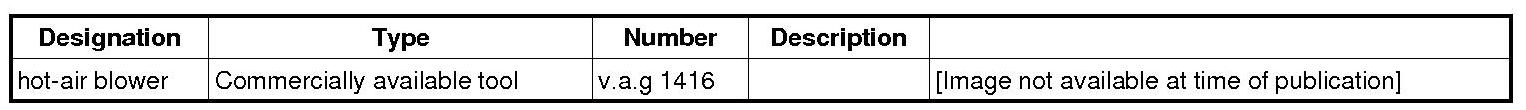

Tools

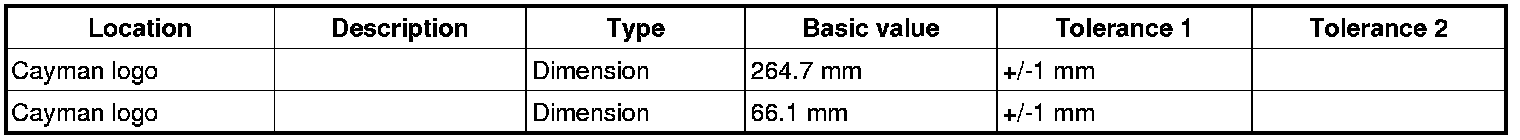

Technical values






Removing rear logo

1. Heating the rear lid

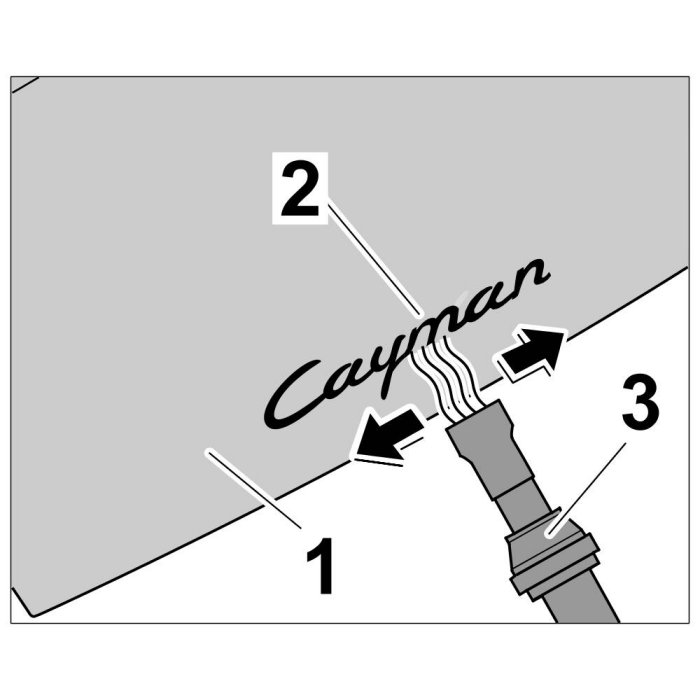

1.1. Heat the rear lid -1- in the area of the logo -2- using the hot-air blower v.a.g 1416 -3-.





Heating logo

2. Levering off the logo using a plastic spatula

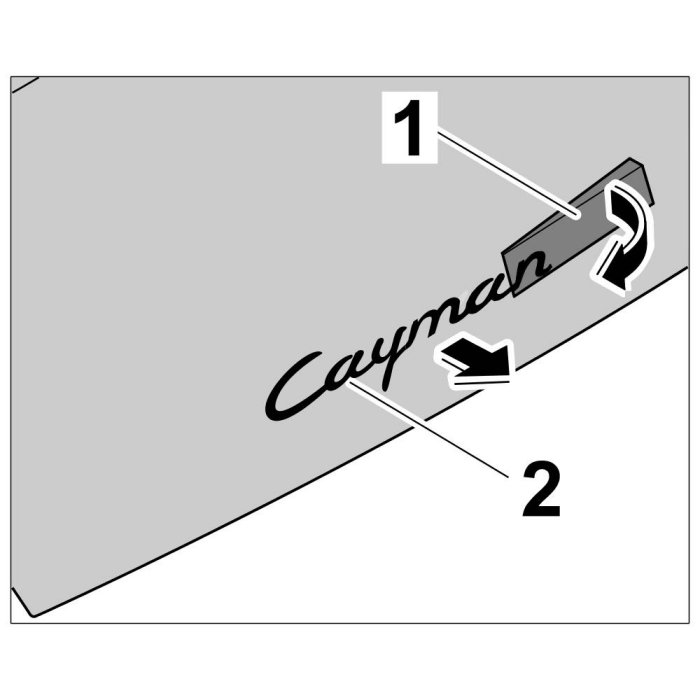

2.1. Slide a plastic spatula -1- under the logo -2- and lever off the logo.





Levering off logo

3. Cleaning the lid

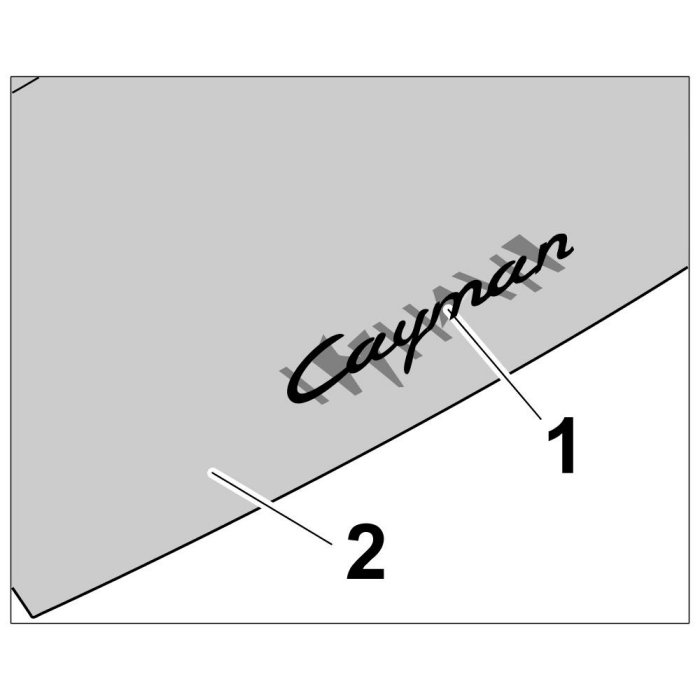

3.1. Loosen the adhesive residue -1- on the lid -2- using a silicone remover and remove it.





Cleaning the lid

Replacing model logo

Replacing the Cayman model logo

1. Find the centre of the lid.





Cayman logo

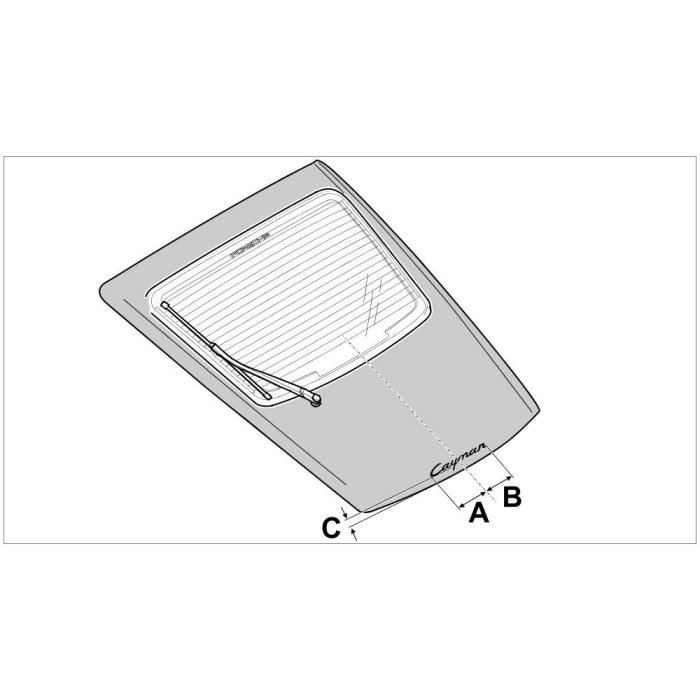

2. Position logo -Cayman- with the dimensions -A and B- => Dimension: 264.7 mm+/-1 mm and -C- => Dimension: 66.1 mm+/-1 mm on the lid and stick it on.
