Grille: Service and Repair
WM 660419 Removing and installing front air grille
Preliminary work
1. Remove the front apron. -> 631519 Removing and installing front apron - section on "Removing" 631519 Removing and installing front spoiler
Information
- Only for vehicles with headlight cleaning system.
2. Remove spray nozzle for headlight washer system and set it aside. -> 927219 Removing and installing spray nozzle for headlight washer system - section on "Removing" 92721900 Removing and installing spray nozzle for headlight cleaning system
Removing front air grille
Removing front outer air grille

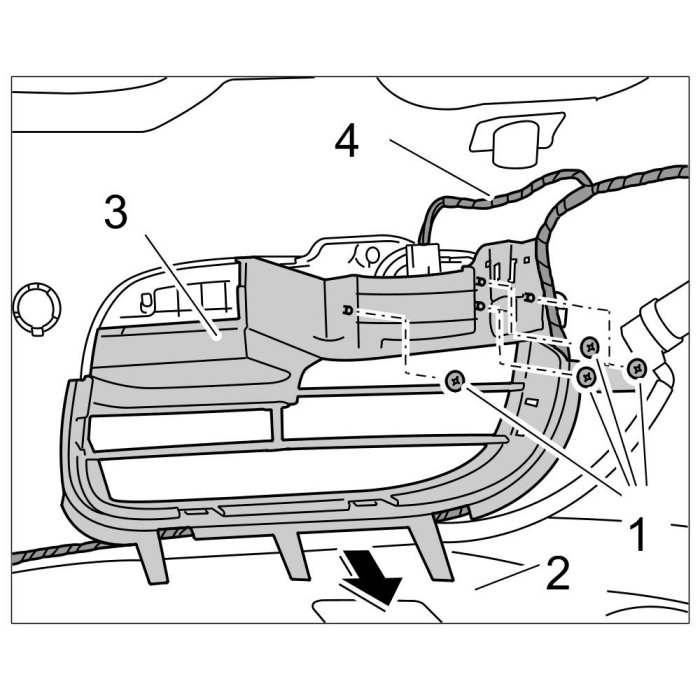

1. Press out retaining pins -1- with a screwdriver.
Removing outer air grille
2. Insert a screwdriver between front apron -2- and air grille -3- at the same time releasing the locking tabs and remove air grille -3-.
3. Disengage wire harness -4- from air grille.
Removing front centre air grille

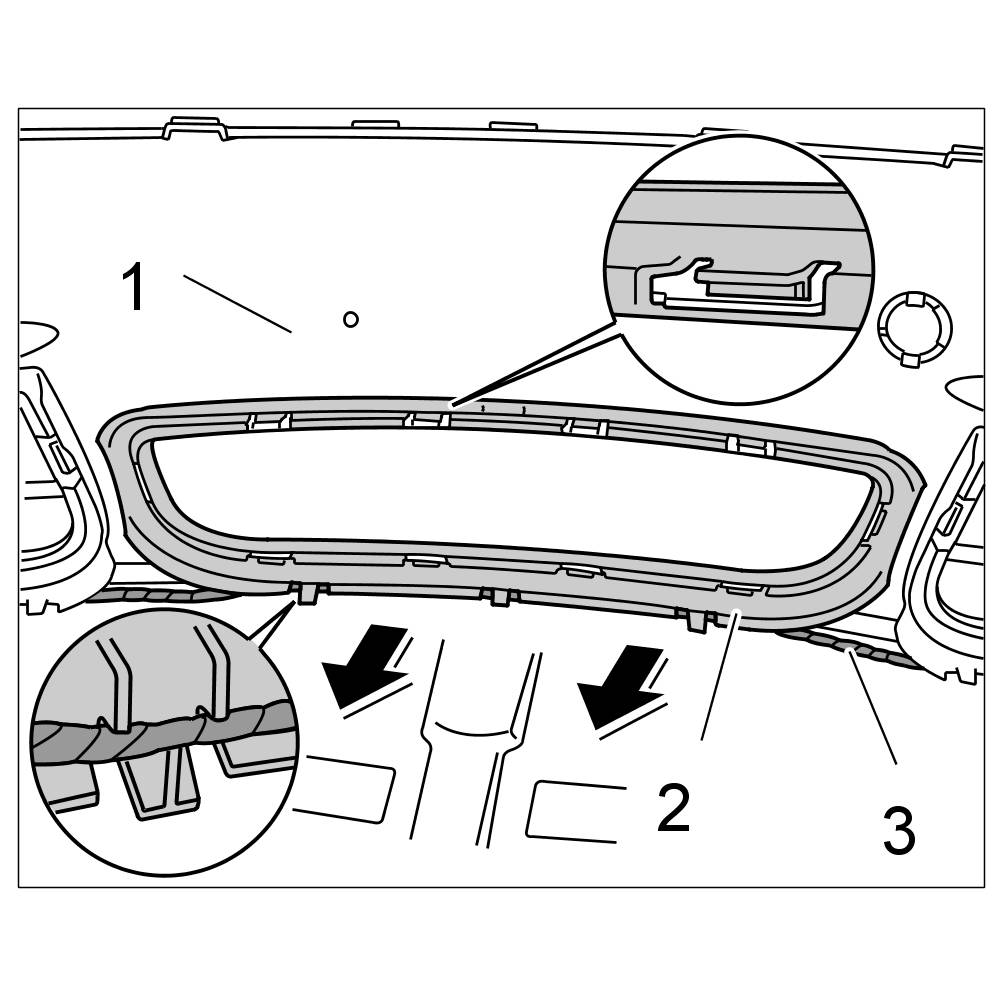

1. Insert a screwdriver between front apron -1- and air grille -2- at the same time releasing the locking tabs and remove air grille -2-.
Removing centre air grille
2. Disengage wire harness -3- from air grille -inset-.
Installing front air grille
Installing front centre air grille

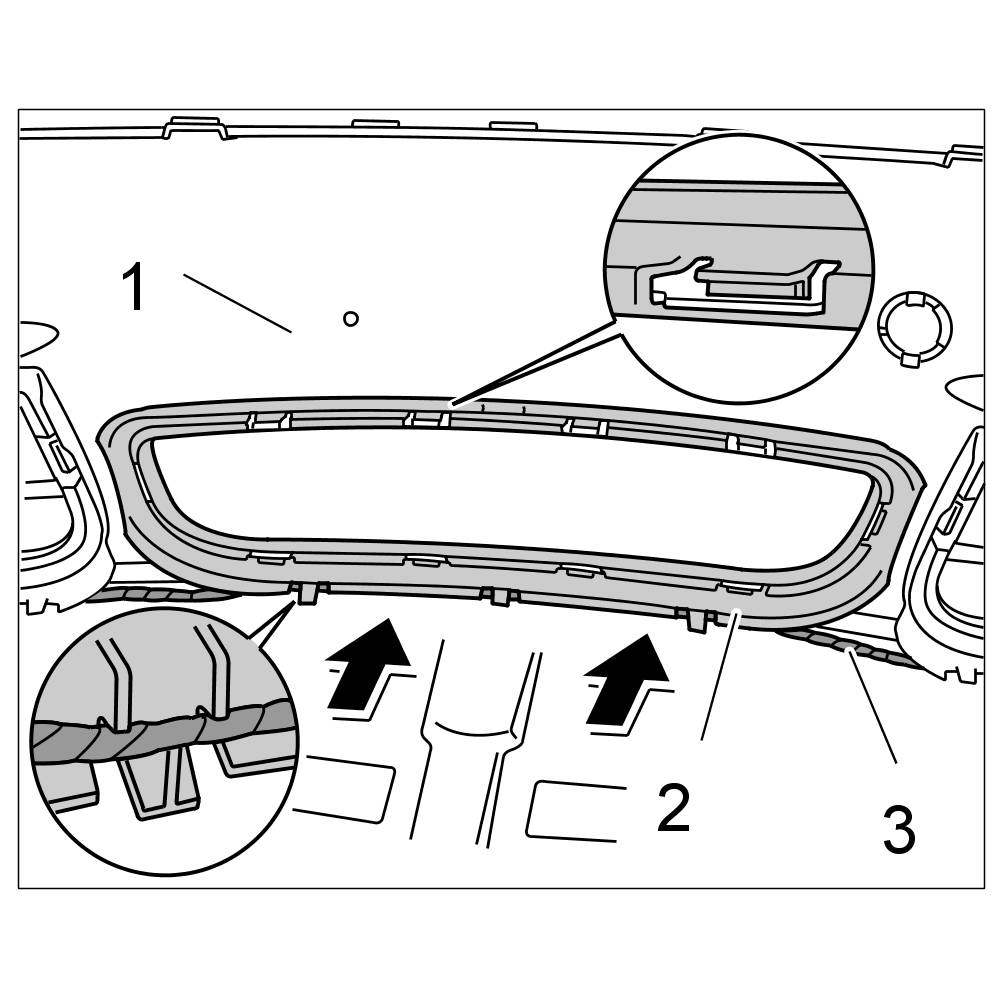

1. Engage wire harness -3- on air grille -2- -inset-.
Installing centre air grille
2. Position air grille -2- all the way round in the pegs of the front apron -1-.
3. Press air grille -2- into the front apron -1- until the locking tabs are felt to engage.
Installing front outer air grille
1. Engage wire harness -4- on air grille -3-.
Installing outer air grille
2. Position air grille -3- all the way round in the pegs of the front apron -2-.
3. Press air grille -3- into the front apron -2- until the locking tabs are felt to engage.
4. Press in new retaining pins -1-.
Subsequent work
Information
- Only for vehicles with headlight cleaning system.
1. Install spray nozzle for headlight washing system. -> 927219 Removing and installing spray nozzle for headlight washer system - section on "Installing" 92721900 Removing and installing spray nozzle for headlight cleaning system
2. Install front apron. -> 631519 Removing and installing front apron - section on "Installing" 631519 Removing and installing front spoiler
