194019 Removing and installing coolant tank
WM 194019 Removing and installing coolant tank
Technical values
Information
Component overview

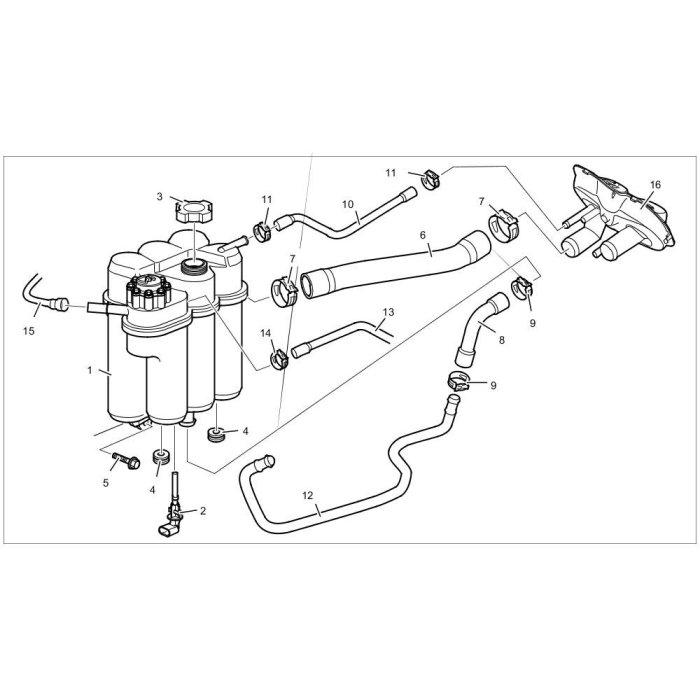

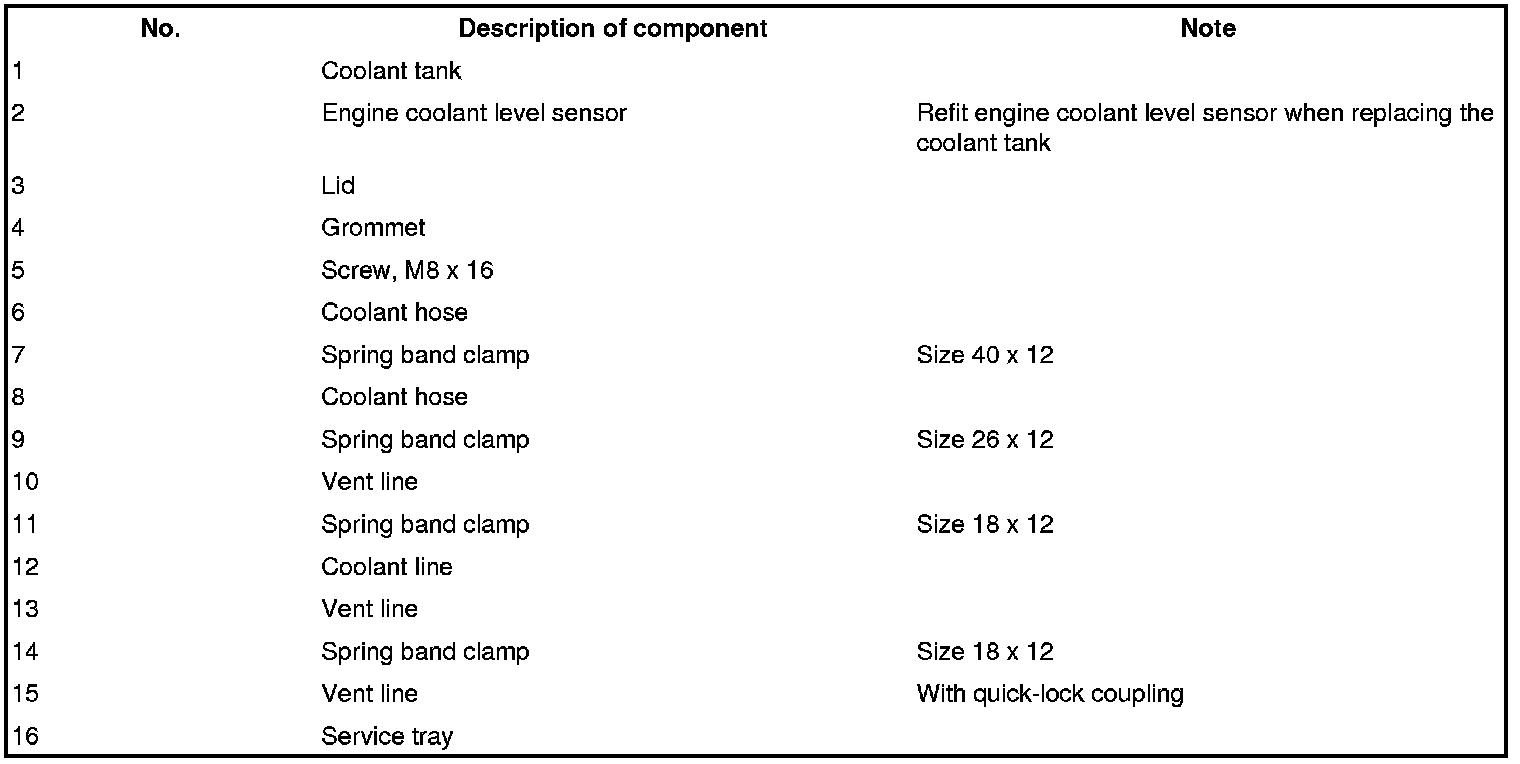

Component overview for coolant tank
Preliminary work
WARNING
Risk of injury from hot engine and hot engine fluids.
- Danger of burns, scalding, damage to skin, injury to the eyes.
-> Do not carry out work on the engine while it is hot.
WARNING
Hot pressurised coolant.
- Danger of scalding and burning.
-> Only work on the coolant system when the engine is "cool".
-> Wear protective clothes, gloves and goggles.
WARNING
Coolant is hazardous to health.
- Risk of skin irritation.
-> Wear protective gloves and goggles.
-> In the event of contact with the skin or eyes, wash immediately with plenty of water.
Information
To facilitate assembly of coolant pipes and hoses, smear with Kluber Syntheso Glep or alternatively Kluberplus S06-100 assembly gel (available in the Porsche Parts Catalogue).
1. Move convertible top to service position -> 6101IN Convertible-top service position 6101IN Convertible-top service position.
2. Remove engine compartment lid -> 557819 Removing and installing engine compartment lid 557819 Removing and Installing Engine Compartment Lid.
3. Drain coolant -> 193817 Draining and filling coolant 193817 Draining and filling in coolant.
Installing coolant tank
WARNING
Coolant is hazardous to health.
- Risk of skin irritation.
-> Wear protective gloves and goggles.
-> In the event of contact with the skin or eyes, wash immediately with plenty of water.
Information
To facilitate assembly of coolant pipes and hoses, smear with Kluber Syntheso Glep or alternatively Kluberplus S06-100 assembly gel (available in the Porsche Parts Catalogue).
Information
When fitting a spring band clamp, make sure that the spring band clamp is positioned between the two markings.

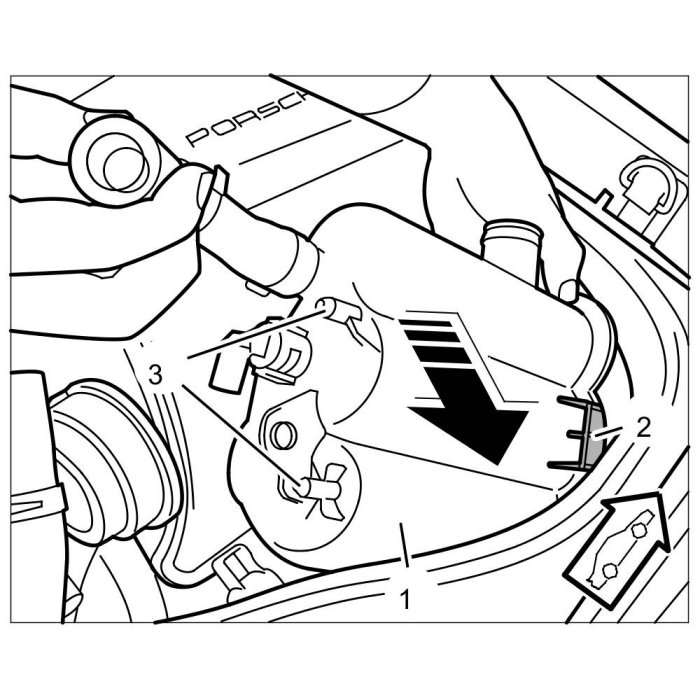

1. Guide coolant tank -1- into the engine compartment, tilt it 180 º against the direction of travel and fix it in place in the holder -2- and guides -3-.
Coolant tank tilted against direction of travel
2. Work on top of coolant tank -1- :
2.1. Slide on coolant hose -1- , position spring band clamp -2- between the markings -3- and fit it at this position.
2.2. Slide on breather hose -3- , position spring band clamp -2- between the markings and fit it at this position.
2.3. Slide on breather hose -5- , position spring band clamp -4- between the markings and fit it at this position.
2.4. Slide on vent line until the quick-lock coupling -8- locks with an audible click.

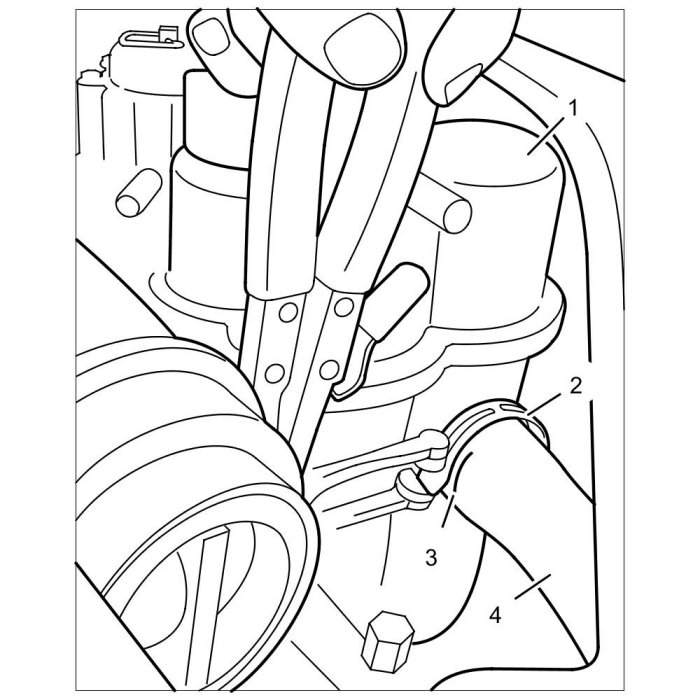

Positioning spring band clamp

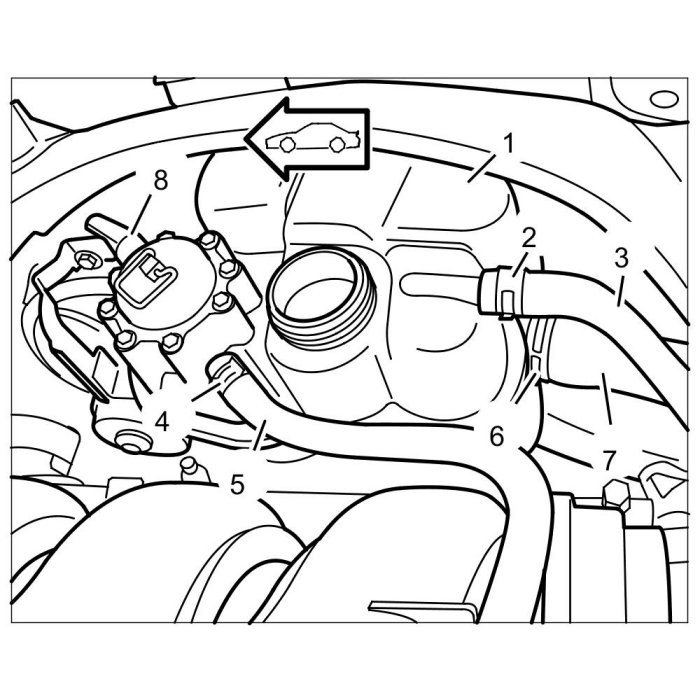

View of coolant tank from above

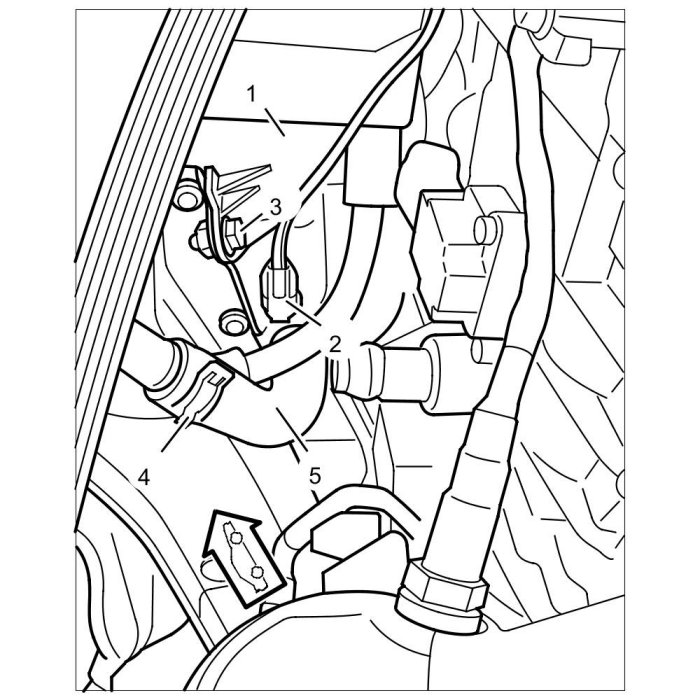

3. Work on bottom of coolant tank:
3.1. Fit M8 x 16 screw -3- and tighten it => Tightening torque: 23 Nm (17 ftlb.)
3.2. Slide on cable plug -2- for engine coolant level sensor until it locks with an audible click.
3.3. Slide on coolant hose -5- , position spring band clamp -4- between the markings and fit it at this position.
View of coolant tank from below
Subsequent work
1. Fill in coolant and bleed the system -> 193817 Draining and filling coolant 193817 Draining and filling in coolant
2. Install engine compartment lid -> 557819 Removing and installing engine compartment lid 557819 Removing and Installing Engine Compartment Lid
3. Test-drive the vehicle, check the engine coolant level in the tank once the engine has cooled down and correct it if necessary (observe Min/Max marking).
