Replacing bulb for reading light

CAUTION

Danger of damage to property if bulbs are used or handled incorrectly!

- Risk of damage to bulbs and bulb housing.

-> Switch off ignition and remove ignition key.
-> To prevent short circuits, the load in question must be switched off while changing bulbs.
-> Only bulbs specified in the bulb table may be used.
-> Bulbs with a higher wattage may damage the bulb housing.
-> New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
-> In certain states, it is compulsory to carry spare light bulbs.

Information

Only use the relevant bulb specified in the bulb table => IN - Bulb table and installation instructions - "Information".

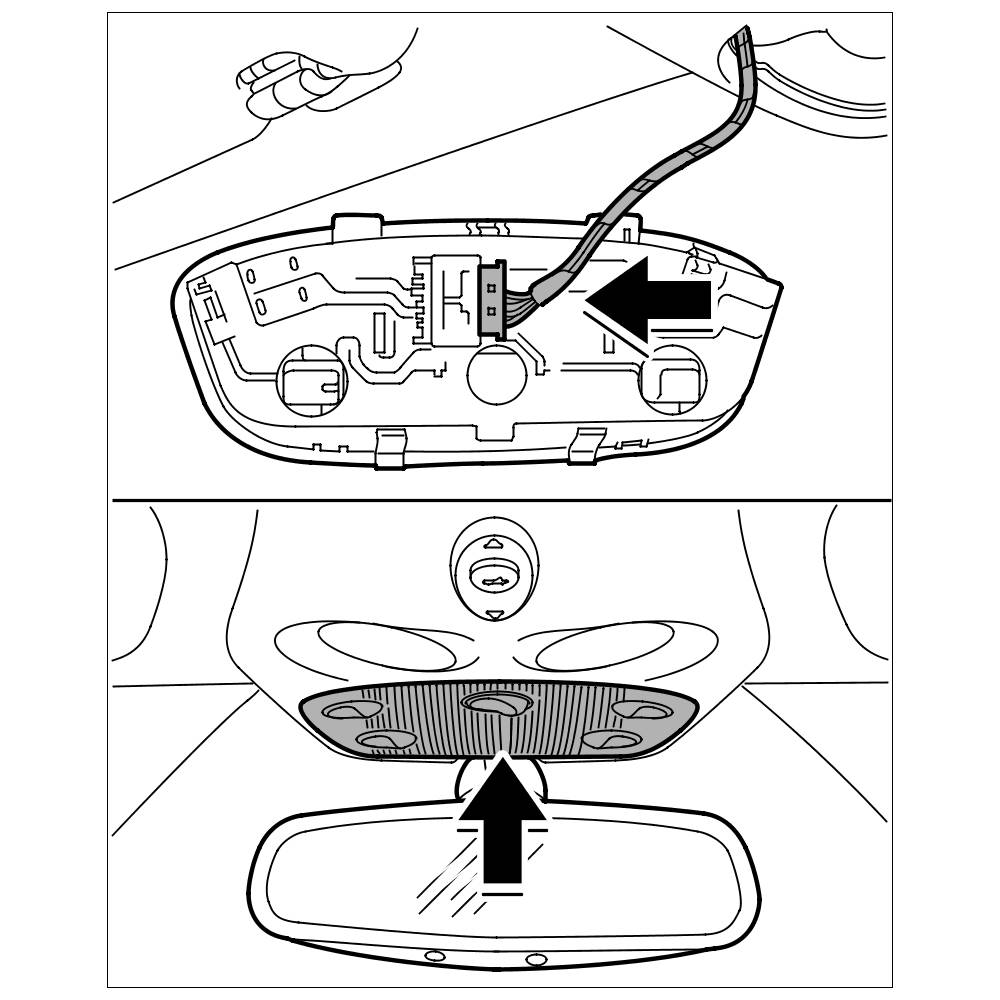

1. Pull the interior light out of the trim panel carefully from the front.





Removing interior light >> shown on the 911

2. Release plug on interior light -arrow a- and pull it off.
3. Loosen bulb holder with bayonet lock -direction of arrow- and remove it.

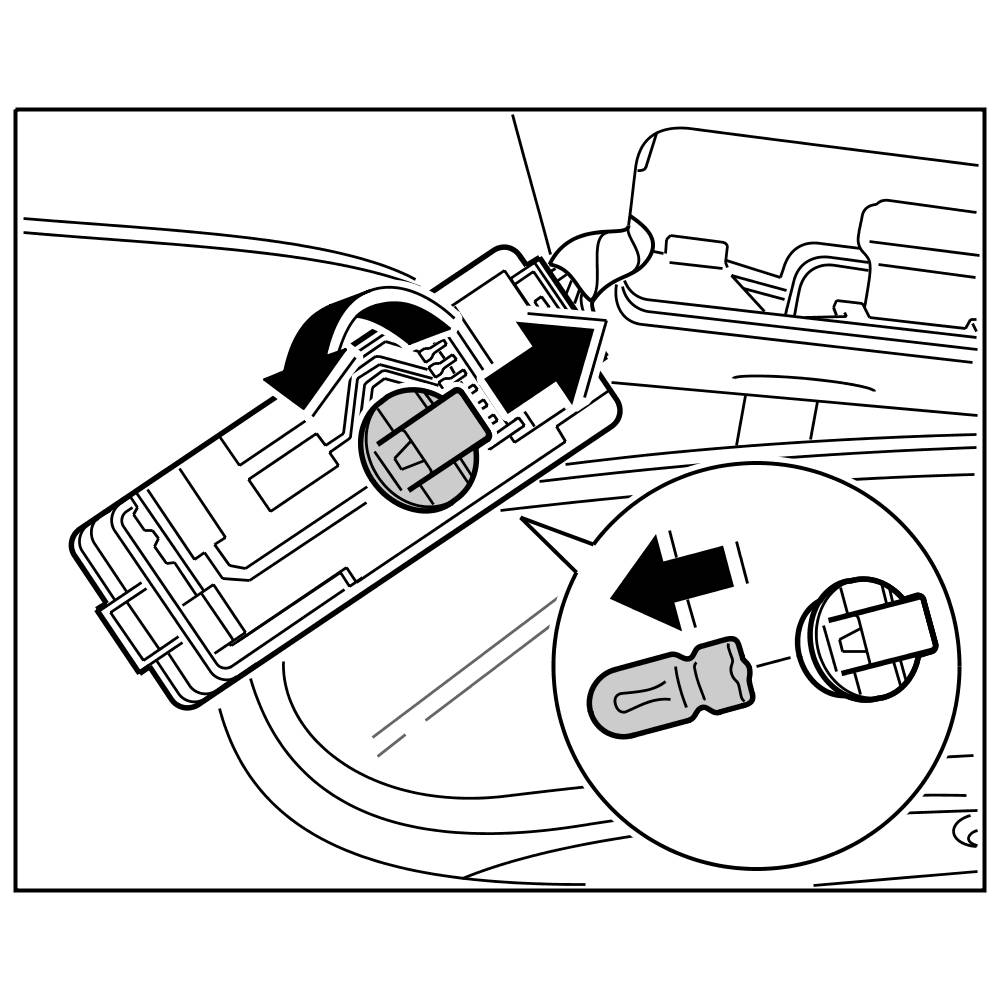

Removing bulb for reading light

4. Take defective bulb out of the bulb holder.
5. Insert new bulb into the bulb holder.

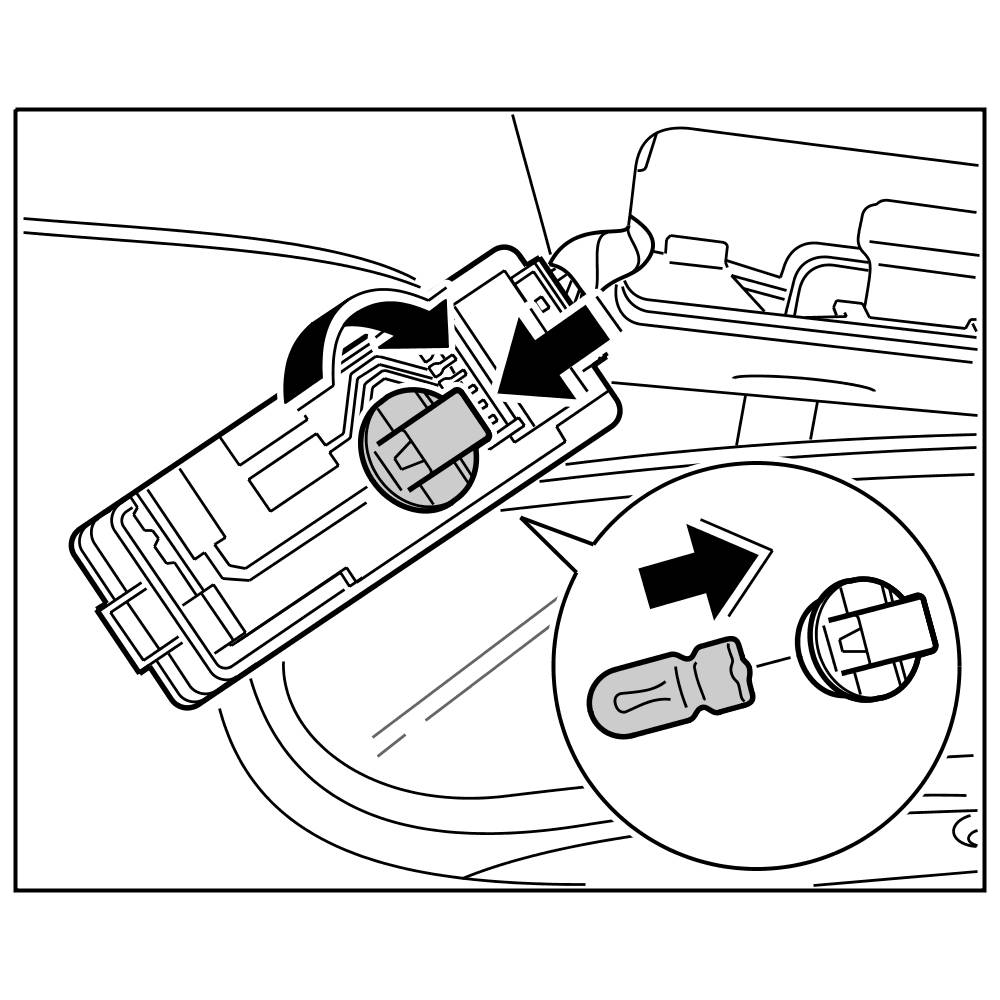

Installing bulb for reading light

6. Insert bulb holder with bayonet lock into the interior light and lock it -direction of arrow-.
7. Connect plug for interior light until the plug engages securely.





Installing interior light

8. Insert interior light into the trim panel at the rear, then press it into the trim panel at the front.
