Glove Box Lamp: Service and Repair

WM 964419 Removing and installing glove compartment light

Removing glove compartment light

CAUTION

Danger of damage to property if bulbs are used or handled incorrectly!

- Risk of damage to bulbs and bulb housing.

-> Switch off ignition and remove ignition key.
-> To prevent short circuits, the load in question must be switched off while changing bulbs.
-> Only bulbs specified in the bulb table may be used.
-> Bulbs with a higher wattage may damage the bulb housing.
-> New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
-> In certain states, it is compulsory to carry spare light bulbs.

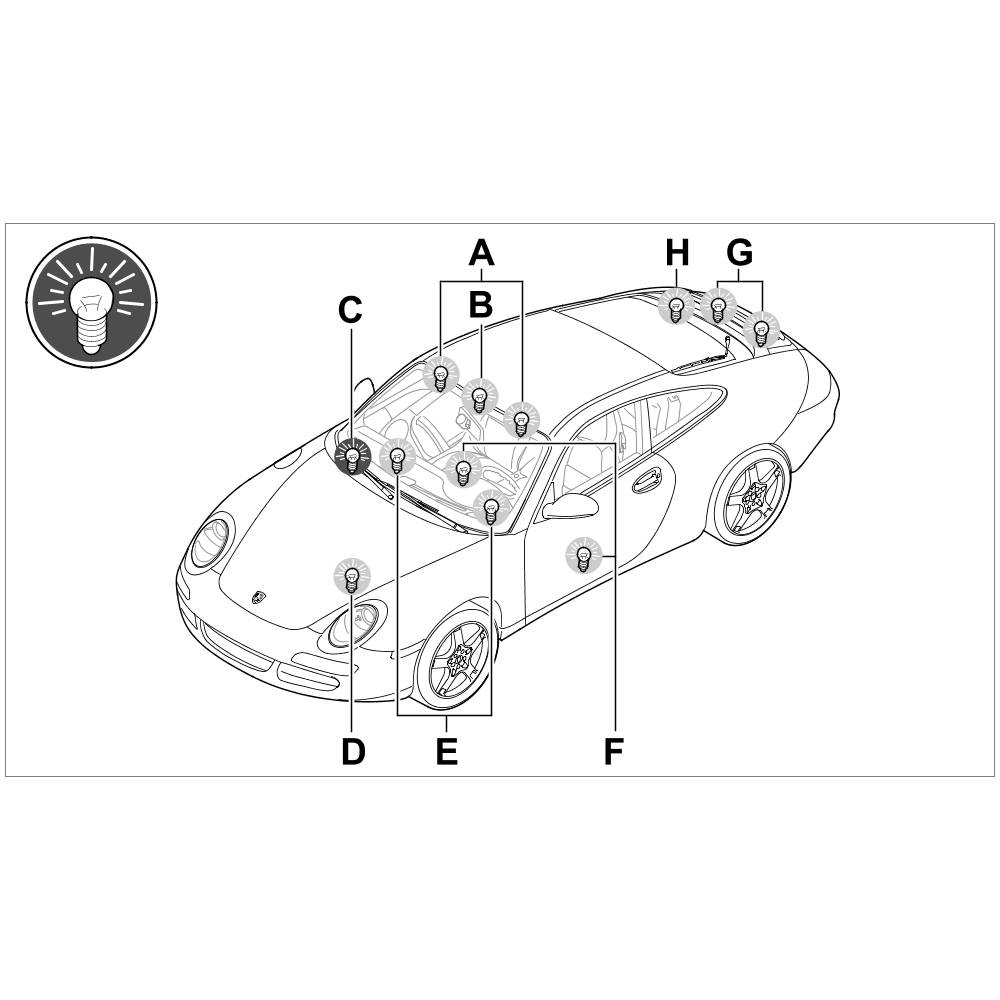

Overview of glove compartment light, shown on the 911

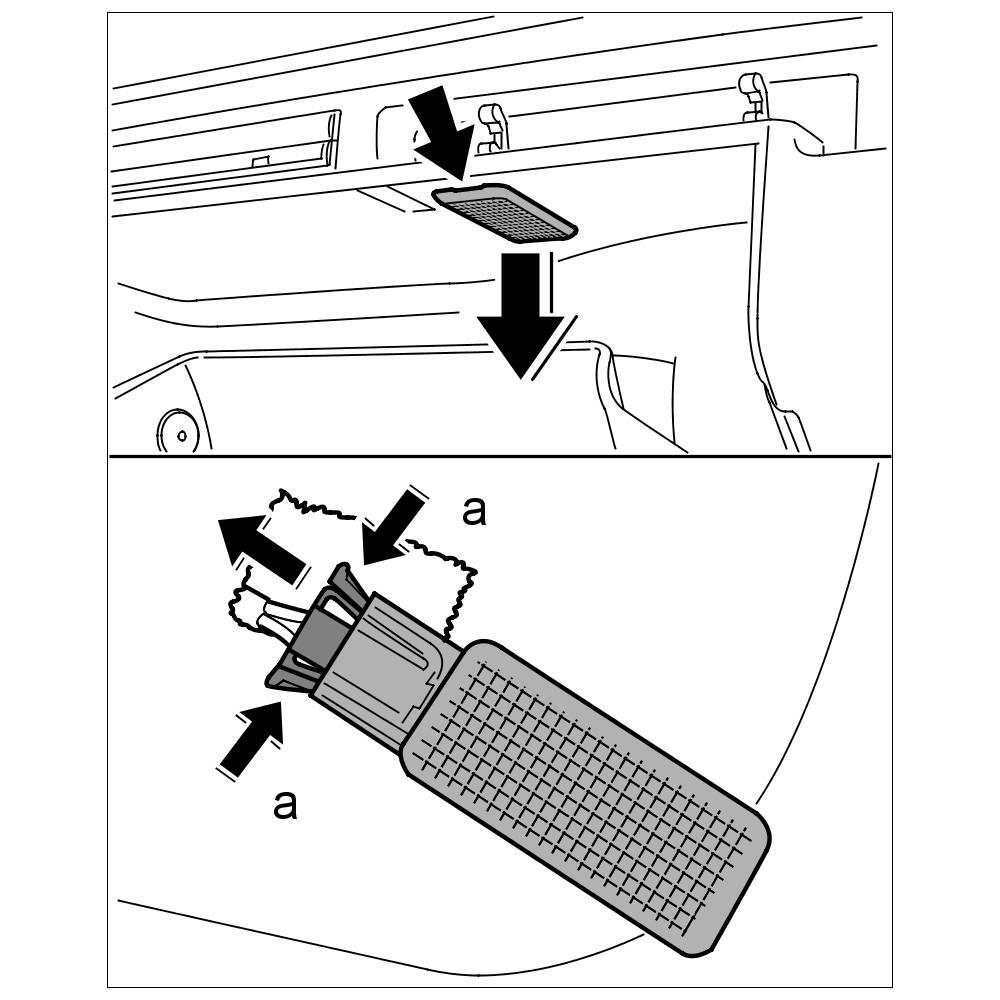

1. Press glove compartment light carefully out of the glove compartment at the cutout -arrow- using a screwdriver.





Removing glove compartment light

2. Release connector on glove compartment light -arrows a- and pull it off.
3. Remove glove compartment light.

Installing glove compartment light

Information

Only use the relevant bulb specified in the bulb table => IN - Bulb table and installation instructions - "Information".





Overview of glove compartment light, shown on the 911





1. Push plug on to glove compartment light until the plug is felt to engage.





Installing glove compartment light

2. Press glove compartment light into the glove compartment.
