Headlamp Servo: Service and Repair

WM 949419 Removing and installing servo motor for headlight levelling system

Tools





Preliminary work

Preliminary work - servo motor for headlight levelling system

1. Remove main headlight. -> 941519 Removing and installing headlight - section on "Removing" 94151900 Removing and installing main headlight

Removing cap of main headlight

1. Unscrew four fastening screws -1- from the cap.





Fastening screws for cap

2. Release cap once at the top and twice at the bottom -a- and remove from the main headlight.





Releasing cap

Removing servo motor for headlight levelling system

1. Unscrew the two fastening screws -1- for the servo motor.





Unscrewing the two fastening screws

2. Slide servo motor vertically downwards and remove.





Disengaging ball head from servo motor for headlight

3. Disconnect electrical plug connection from servo motor and remove the servo motor.





Disconnecting electric plug connection

Installing servo motor for headlight levelling system

Information

After reinstallation or installation of a new servo motor for the headlight levelling system, the headlight must be calibrated.

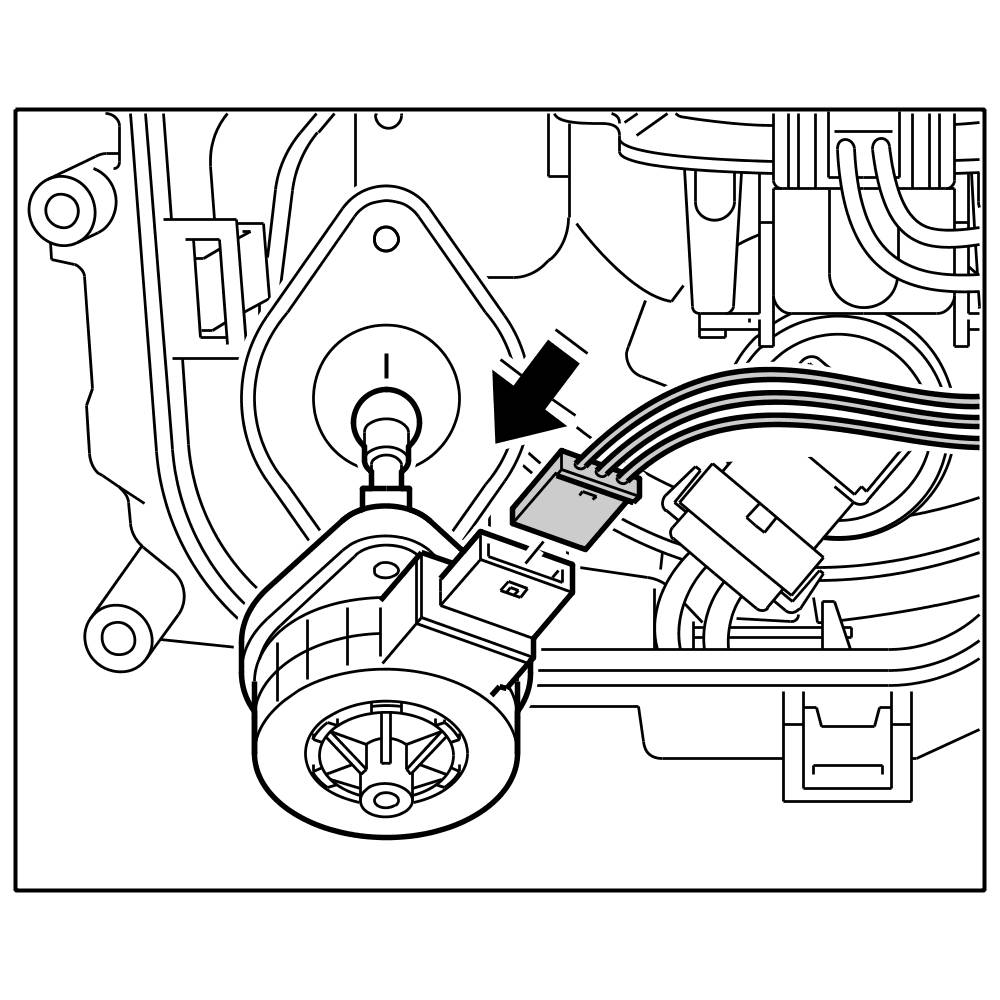

1. Push electric plug onto the servo motor until it is felt to engage.





Connecting the electrical plug connection

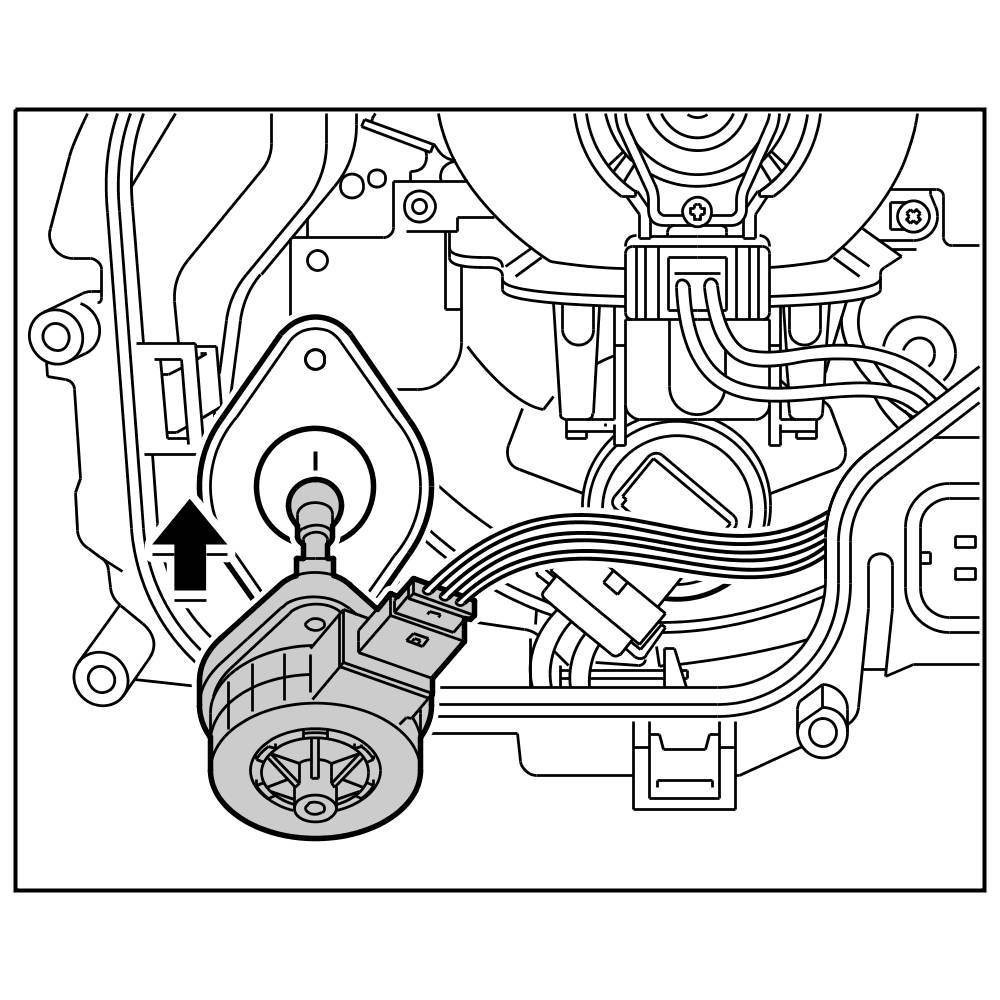

2. Engage servo motor in the actuator for the main headlight and push servo motor upwards.





Engaging ball head

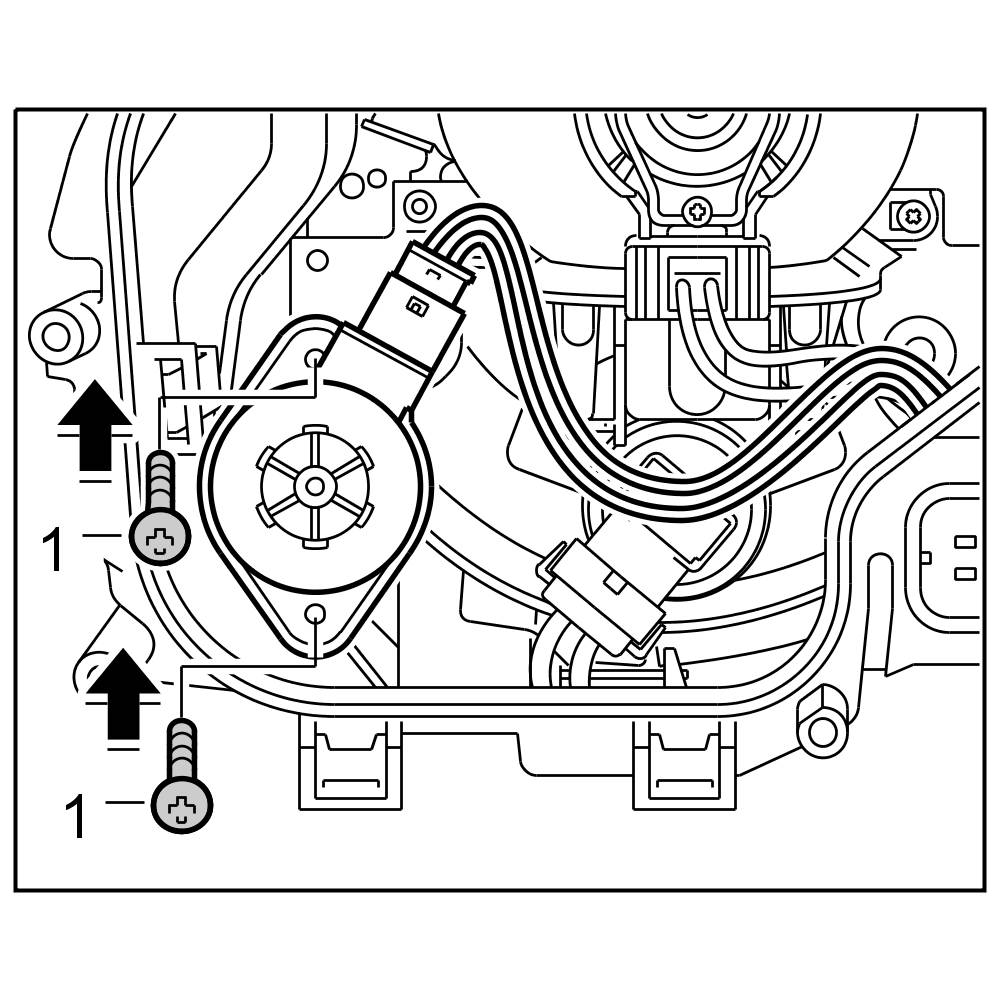

3. Screw down the servo motor with the two fastening screws.





Tightening the two fastening screws

Subsequent work

Installing main headlight cap

1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and twice at the bottom.





Positioning cap

2. Screw in four fastening screws -1- for the cap.





Screwing in the fastening screws

Subsequent work - servo motor for headlight levelling system

Information

After reinstallation or installation of a new servo motor for the headlight levelling system, the headlight must be calibrated.

1. Install main headlight. -> 941519 Removing and installing headlight - section on "Installing" 94151900 Removing and installing main headlight
2. Connect the Porsche System Tester PIWIS Tester 9718 to the vehicle and start the System Tester. Switch on ignition. >> to continue.
3. Select front end on the control unit, carry out calibration menu.
4. Check headlight setting and adjust if necessary.
