Removing and Installing Wheel
WM 440519 Removing and installing wheel
Information
Wheel mounting

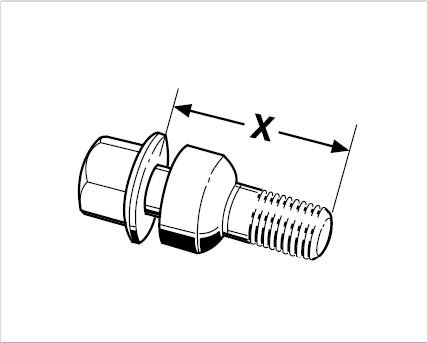

The wheels of the Boxster (987) are secured with standard wheel bolts (M14 x 1.5) the same as for the Boxster (986). Length: dimension -X- --> screw length: approx. 45 mm.
Wheel bolt length
Removing wheel
Removing wheel
Information
^ Use suitable commercially available tools (wrench size 19 mm)! Never use an impact bolter to tighten the wheel bolts.
^ Before the wheel is placed on the wheel hub, re-grease the centering surface of the wheel hub (if required) as necessary with a very thin coat of Optimoly TA (aluminum paste).
^ The wheel bolt consists of two parts that are permanently joined together. Other wheel bolts must not be used.
Caution: Removing/fitting the wheels for vehicles with PCCB (Porsche Ceramic Composite Brake).
^ Risk of damage to the brake discs.
--> Use assembly aids (assembly pins) in order to exclude any possibility of heavy contact of the wheel with the brake disc. The assembly aids (2 assembly pins) are located in the luggage compartment.
Information: The assembly pins for removing / mounting the wheel for vehicles with PCCB can be ordered separately as a spare part. Part No.: 999 571 074 30.
- In the case of vehicles with PCCB (Porsche Ceramic Composite Brake), screw the two assembly aids (assembly pins), instead of two wheel bolts, into the wheel hub before removing the wheel. Only then remove the three remaining wheel bolts and remove the wheel carefully, without touching the brake discs.

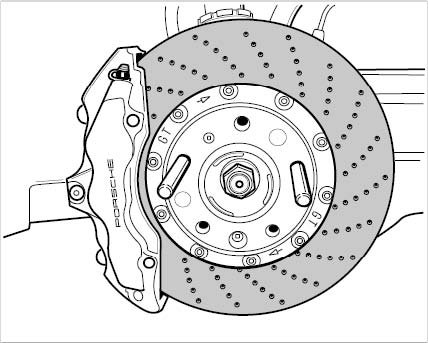

Assembly pins for vehicles with PCCB brakes
Installing wheel
Installing wheel
Information:
^ Use suitable commercially available tools (wrench size 19 mm)! Never use an impact bolter to tighten the wheel bolts.
^ Before the wheel is placed on the wheel hub, re-grease the centering surface of the wheel hub (if required) as necessary with a very thin coat of Optimoly TA (aluminum paste).
^ The wheel bolt consists of two parts that are permanently joined together. Other wheel bolts must not be used.
Information: The assembly pins for removing / mounting the wheel for vehicles with PCCB can be ordered separately as a spare part. Part No.: 999 571 074 30.
Caution: Removing/fitting the wheels for vehicles with PCCB (Porsche Ceramic Composite Brake).
^ Risk of damage to the brake discs.
--> Use assembly aids (assembly pins) in order to exclude any possibility of heavy contact of the wheel with the brake disc. The assembly aids (2 assembly pins) are located in the luggage compartment.
1. In the case of vehicles with PCCB (Porsche Ceramic Composite Brake), screw the 2 assembly aids (assembly pins) into the wheel hub before mounting wheel.
Assembly pins for vehicle with PCCB brakes
2. In the case of heavy soiling, clean the wheel bolts and the concavities in the wheel with a lint-free cloth.

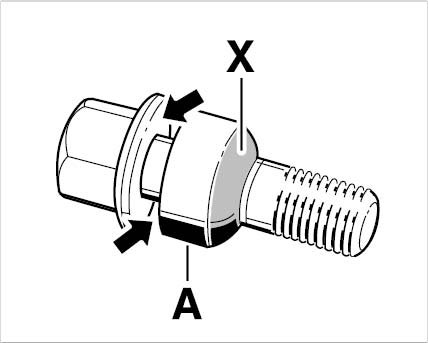

3. Always apply a thin coat of Optimoly TA (aluminum paste) on the thread of the wheel bolts, on the shank and between the bolt head bearing surface and spherical cap ring (under the head) -arrows-. Do not grease the spherical cap bearing surface -X- of the wheel bolts that face the wheel.
-A- - Spherical cap ring (permanently connected with the wheel bolt)
-X- - Spherical cap bearing surface facing the wheel (do not grease)
Wheel bolt
Information: Rework on wheel bolts is impermissible.
4. Always replace damaged wheel bolts.
This damage includes mechanical damage to the thread, the spherical cap and damage resulting from seizure of the bolt head bearing surface and spherical cap ring. It must be possible to rotate the spherical cap ring on the bolt shank and to move it in axial direction.
Information: Always observe the specified tightening torque of 130 Nm (96 ftlb.).
5. Screw in wheel bolts by hand and then tighten evenly. Start at the top when tightening.
