38631950 Removing and installing port plate for ATF cooler

WM 386319 Removing and installing port plate for ATF cooler

Tools

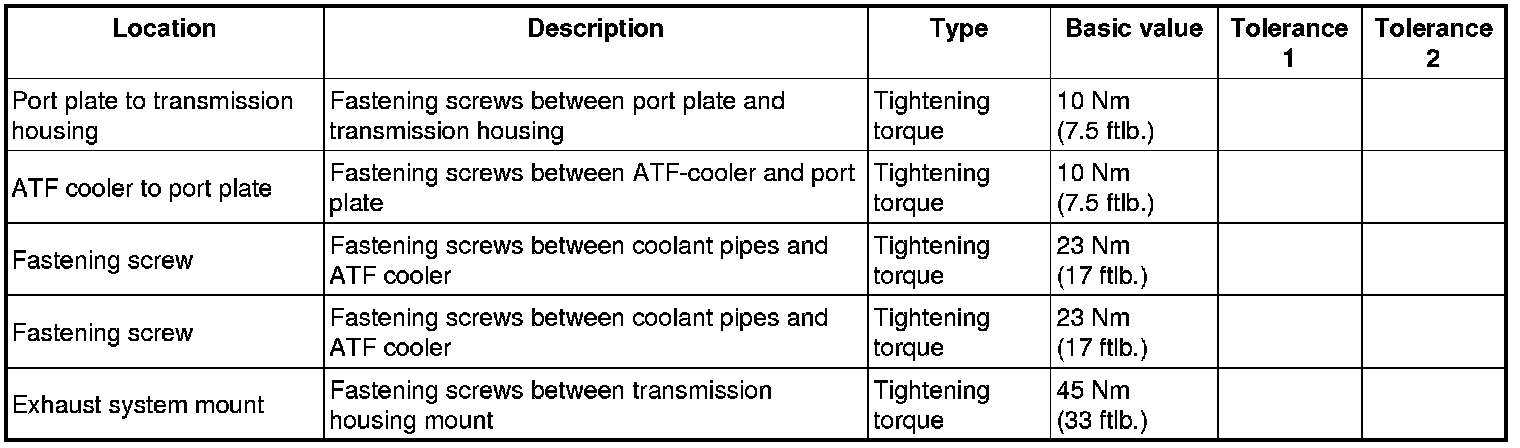

Technical values





Preliminary work

1. Raise the vehicle at the prescribed jacking points. -> 400000 Lifting the vehicle
2. Remove rear underside panel. -> 519419 Removing and installing rear cover - section on "Removing" 519419 Removing and Installing Cover for Rear Underbody
3. Remove rear silencer. -> 263319 Removing and installing rear silencer - section on "Removing" Service and Repair

Removing port plate for ATF cooler

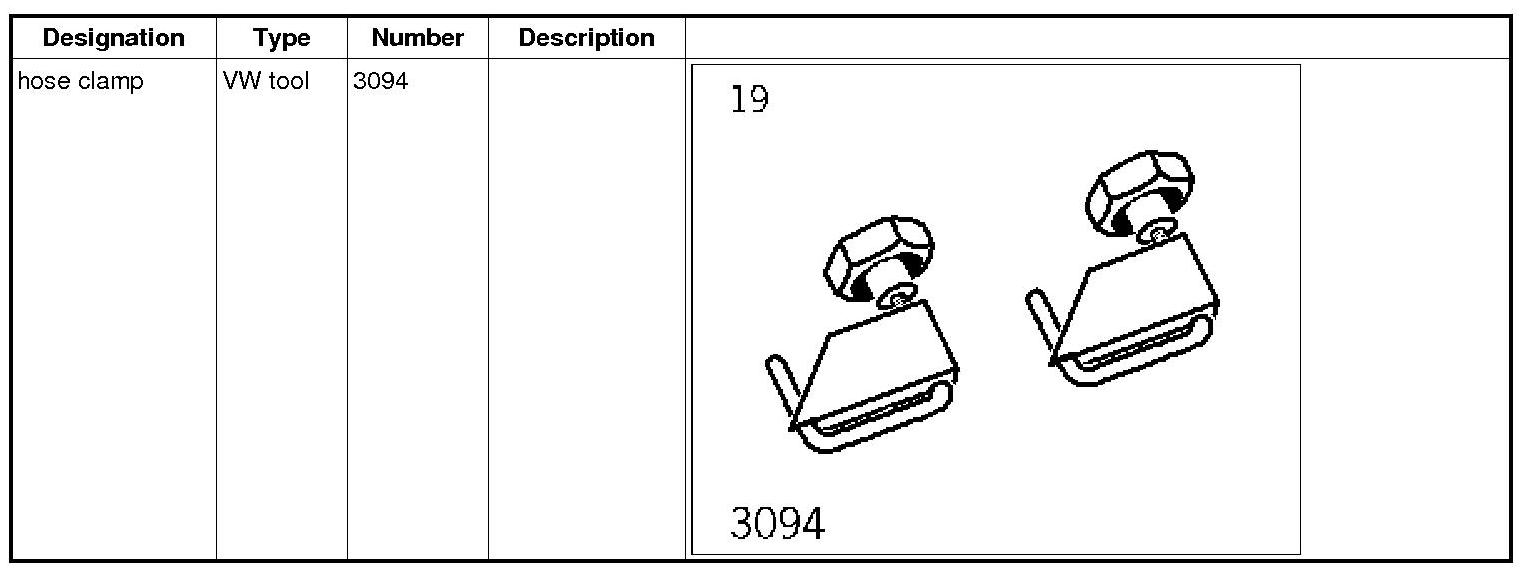

1. Clamp shut coolant hoses (flow and return sides) with hose clamp 3094.





Clamping shut coolant hoses

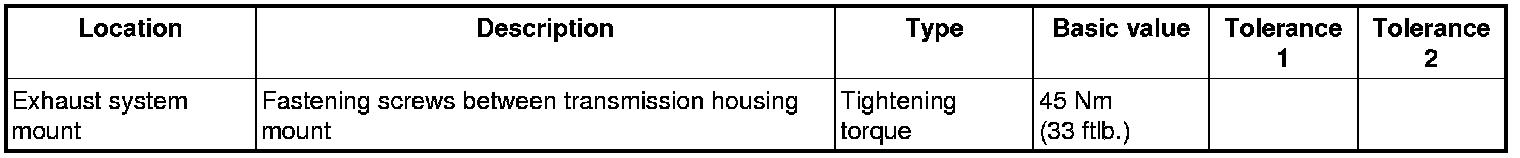

2. Unscrew fastening screws between transmission and mount for exhaust system and remove mount for exhaust system.





Fastening screws

3. Place collection pan for coolant under the transmission.
4. Unscrew fastening screw between ATF cooler and coolant line and pull coolant line out of ATF cooler.





Coolant line

5. Unscrew fastening screw between ATF cooler and coolant line and pull coolant line out of ATF cooler.





Coolant line

Information

If necessary, use a mirror when screwing in and unscrewing the top screws.

6. Unscrew fastening screws between ATF cooler and port plate and remove ATF cooler.





ATF cooler

7. Unscrew fastening screws between port plate and transmission housing and remove port plate.

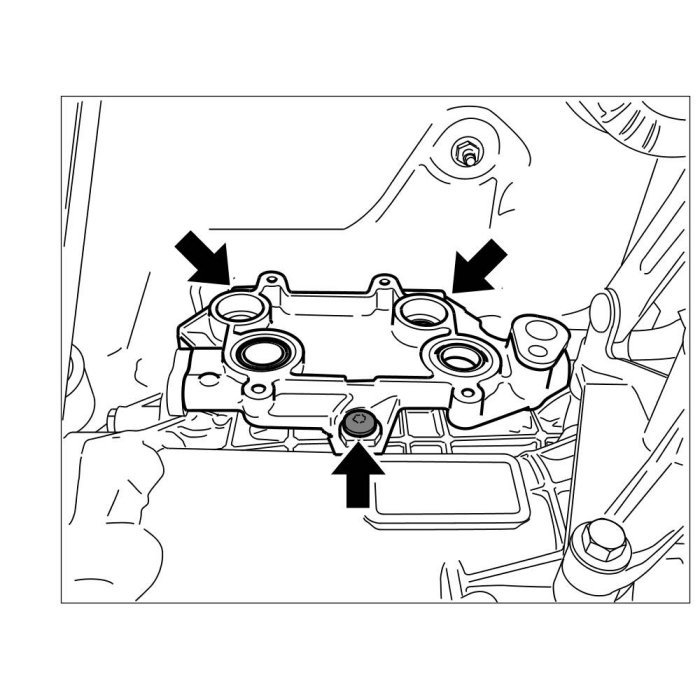

Port plate

Installing port plate for ATF cooler

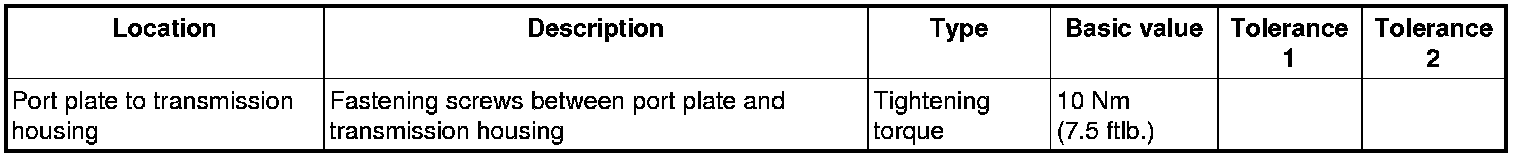

1. Position port plate with new sealing rings on transmission housing and screw in fastening screws.





Port plate





Information

If necessary, use a mirror when screwing in and unscrewing the top screws.

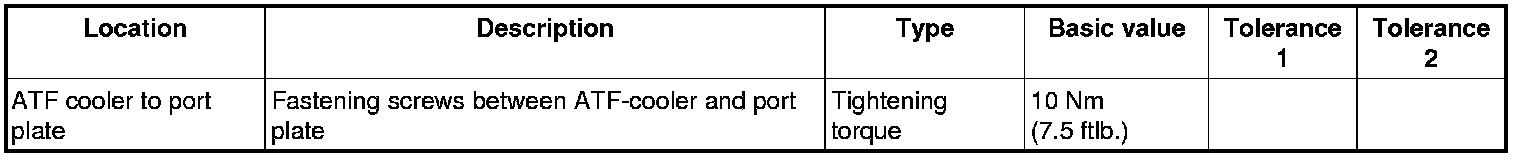

2. Position ATF cooler on port plate and screw in screws.





ATF cooler

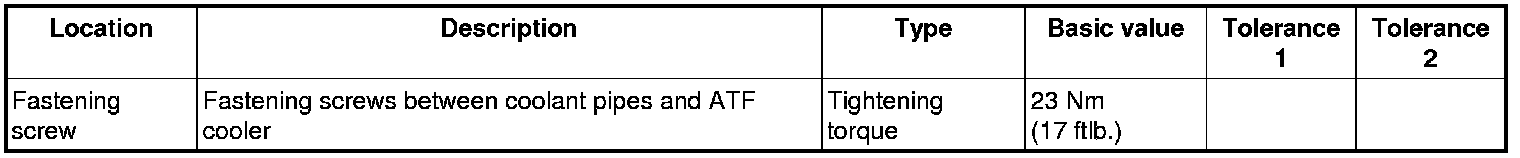

3. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.





Coolant line





4. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.





Coolant line





5. Install engine mount for exhaust system and tighten fastening screws between transmission and engine mount for exhaust system.





Fastening screws





6. Remove hose clamp 3094 from coolant pipes (flow and return sides).

Subsequent work

1. Install rear mufflers. -> 263319 Removing and installing rear muffler - section on "Installing". Service and Repair
2. Fill in coolant and bleed cooling system. -> 193817 Draining and refilling coolant 193817 Draining and filling in coolant
3. Check and if necessary, top up the ATF. -> 370235 Checking and topping up the ATF 370235 Checking and Topping Up ATF
4. Install rear underside panel. -> 519419 Removing and installing rear cover - section on "Installing" 519419 Removing and Installing Cover for Rear Underbody
