Solar Cell: Service and Repair

WM 871419 Removing and installing sun sensor

Preliminary work

Remove cover for centre loudspeaker.-> 709019 Removing and installing cover for loudspeaker - section on "Removing" 709019 Removing and installing cover for loudspeaker

Removing sun sensor

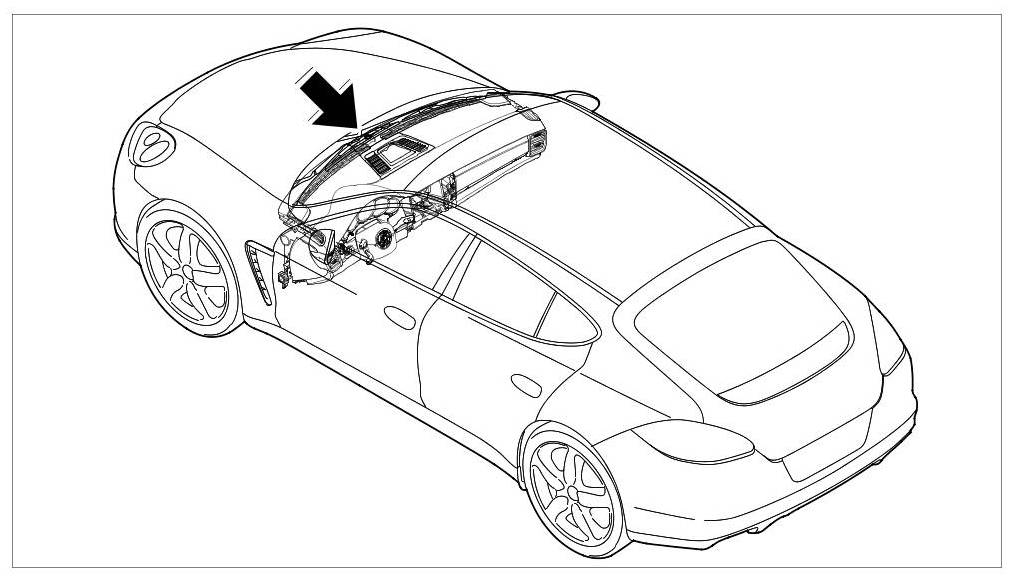

Installation position of sun sensor

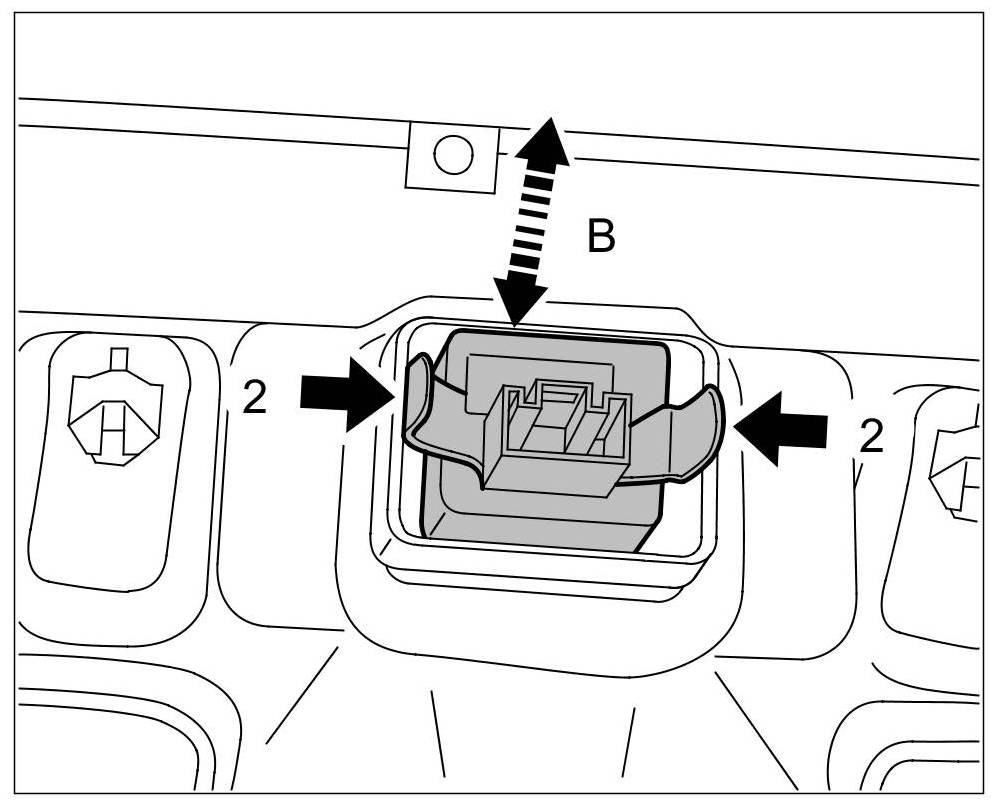

1. Carefully press locking lugs -2- for sun sensor inwards and remove sun sensor from the inside out of the cover for the centre loudspeaker -arrow B-.





Removing sun sensor

Installing sun sensor

1. Position sun sensor in holder into the cover for the centre loudspeaker and press in -arrow B-. Make sure that the locking lugs -2- engage securely.





Pressing in sun sensor

Subsequent work

Install cover for centre loudspeaker.-> 709019 Removing and installing cover for loudspeaker - section on "Installing" 709019 Removing and installing cover for loudspeaker
