1987
>>
Alliance/Encore L4-1397cc 1.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Electronically Tuned Radio, W/Graphic Equalizer, Wiring Circuit
Electronically Tuned Radio, W/Graphic Equalizer, Wiring Circuit

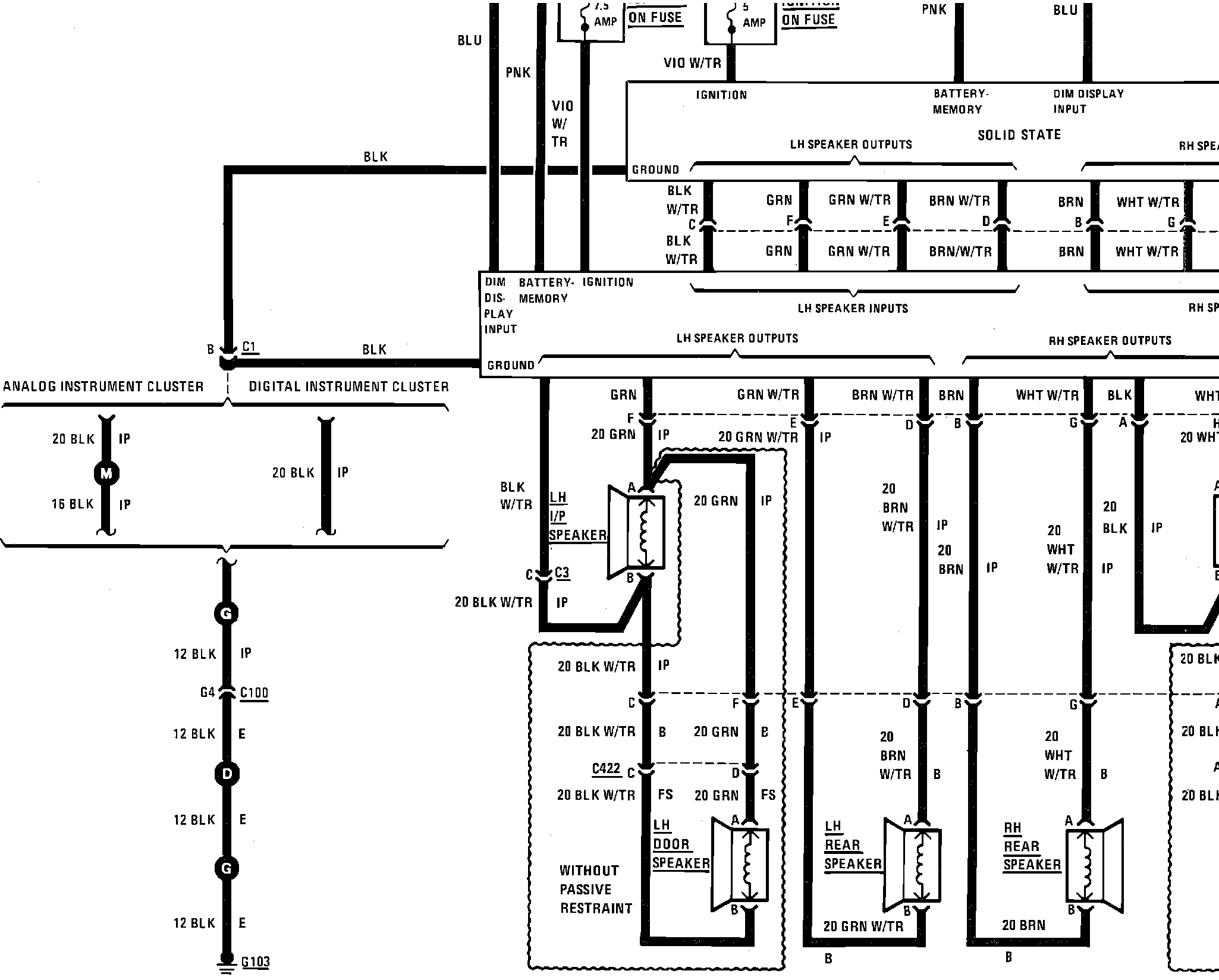

B����U��Fig. 9 Electronically tuned radio, W/graphic equalizer, wiring circuit:
