Shift Linkage: Adjustments

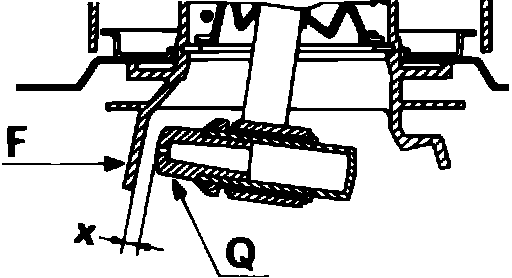

Fig. 5 Gearshift linkage adjustment.:

1. Loosen yoke retaining nut, then position gearshift lever at transaxle in third-fourth gear position.
2. Install .079 inch shim (2 mm) on four speed transaxles or .394 inch shim (10 mm) on five speed transaxles between end piece (Q) and housing surface (F), Fig. 5.
3. Tighten yoke retaining nut, then remove shim.
