Front Bumper Reinforcement - Removal

REMOVAL







1. Remove the fascia. Remove the fascia.

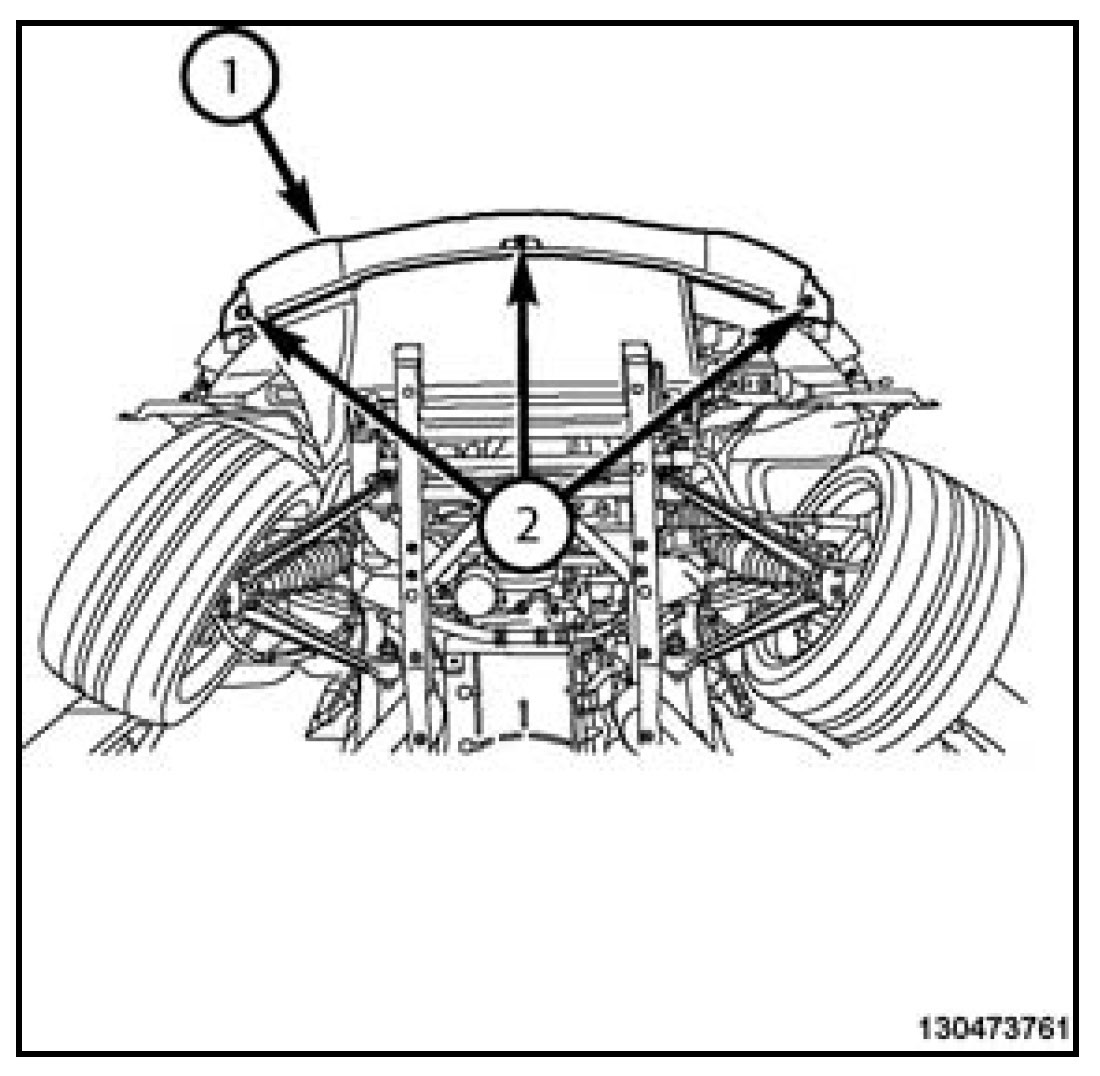

2. Remove the three fasteners (2) from the lower valance (1).







3. Remove the two fasteners (1) per side from the front wheelhouse extensions.Remove the two fasteners (1) per side from the front wheelhouse extensions.
4. Remove the two fasteners (3) and backing plates per side for the front bumper reinforcement (2).Remove the two fasteners (3) and backing plates per side for the front bumper reinforcement (2).
5. Remove the front bumper reinforcement (2) from the vehicle.
