Housing Assembly HVAC: Service and Repair

Air Inlet Housing Replacement

Removal Procedure
1. Remove the Heater and Air Conditioning Evaporator and Blower Module.

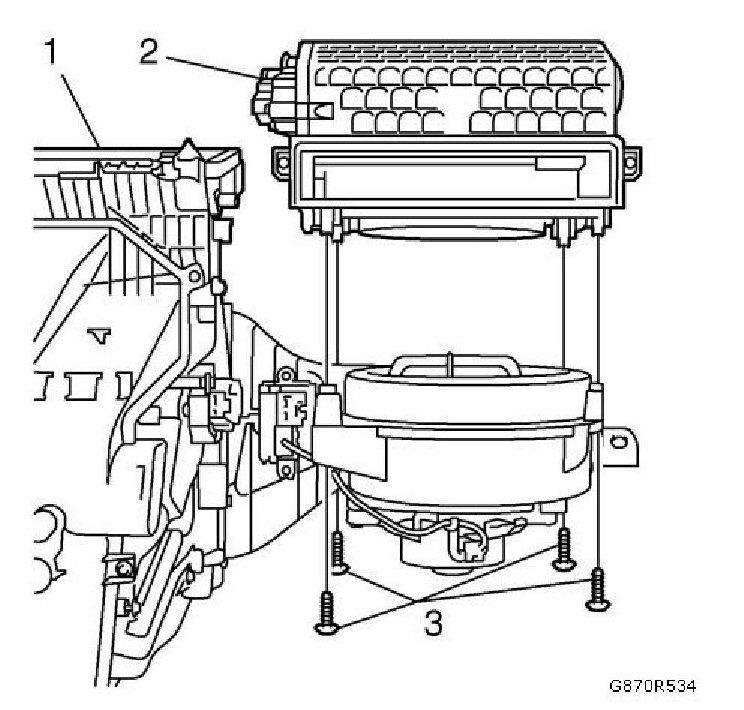

2. Remove the air inlet housing (2) from the heater and air conditioning evaporator and blower module (1).







- Disconnect the electrical connectors.
- Remove the 4 air inlet housing bolts (3).

3. Remove the air inlet valve actuator.
4. Remove the air inlet valve and inside air valve control cam.

Installation Procedure
1. Install the air inlet valve and inside air valve control cam.
2. Install the air inlet valve actuator.
3. Refer to Fastener Caution.
Install the air inlet housing (2) to the heater and air conditioning evaporator and blower module (1).







- Connect the electrical connectors.
- Install the 4 inlet housing bolts (3) and tighten to 2.5 Nm (23 lb in).

4. Install the heater and air conditioning evaporator and the blower module.
