Shift Control Assembly Replacement

Shift Control Assembly Replacement

- Tools Required
- J 36346 Fascia Retainer Remover

Removal Procedure





1. Using the J 36346 or equivalent, disconnect the shift cable ends from the transaxle by prying on both sides with even pressure.
2. Disconnect the shift cables from the shift cable bracket. Discard the shift cable retaining clips.
3. Raise and support the vehicle.
4. Remove the wheel.
5. Remove the left inner splash shield.





6. Shift the transmission into NEUTRAL.

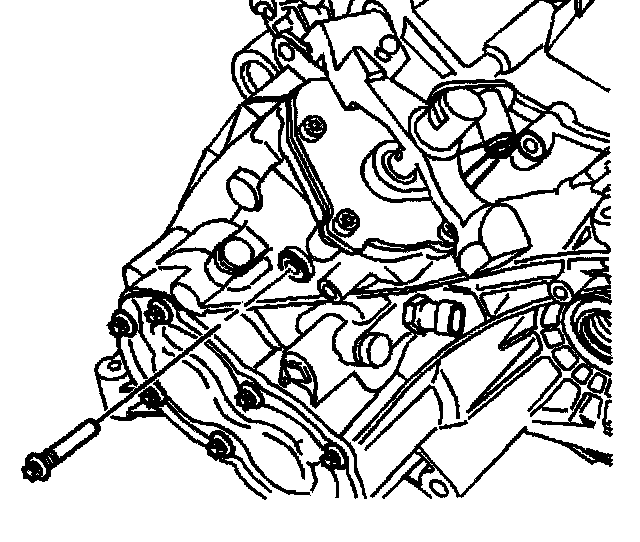

7. Remove the shifter guide bolt.





8. Remove the shifter retaining bolts.
9. Remove the shifter.

Installation Procedure






Important: Ensure there is not any excessive sealer around the shift rod bushing.

1. Apply sealer P/N 12378516 to the transaxle case to shifter cover mating surface.






Important: Install all possible shifter bolts with the shifter in NEUTRAL. Install the last shifter bolt with the shifter in gear, then shift back into NEUTRAL.

2. Install the shifter.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the shifter retaining bolts.
- Tighten the bolts to 25 Nm (18 ft. lbs.).





4. Ensure the transaxle is in NEUTRAL.
5. Apply P/N 21485278 to the shifter guide bolt.

Notice: Hand start and tighten the shifter guide bolt to avoid damaging the shift lover.

6. Install the shifter guide bolt.
- Tighten the bolt to 25 Nm (18 ft. lbs.).
7. Install the left inner splash shield.
8. Install the wheel.






Important: New cable clips must be used to ensure proper retention.

9. Connect the shift cables to the shift cable bracket.
10. Connect the shift cable ends to the transaxle.
11. Lower the vehicle.
