Home >> Saturn Truck >> 2005 >> RELAY AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Sit-N-Lift Seat Fuse Block (AQW)

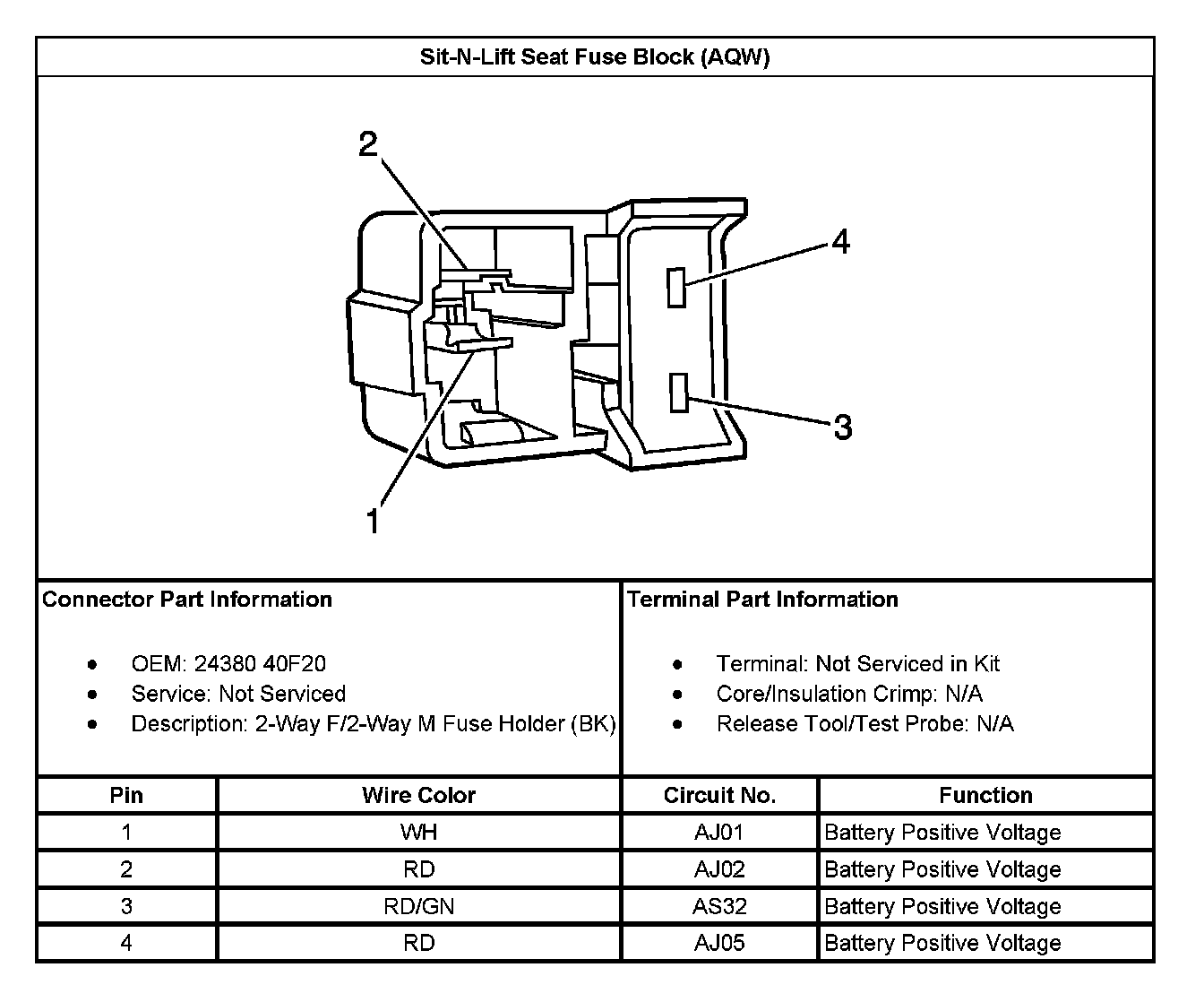

Sit-N-Lift Seat Fuse Block (AQW)

Sit-N-Lift Seat Fuse Block (AQW):
