Blower Motor

BLOWER MOTOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the right side instrument panel (I/P) insulator.




2. Disconnect the blower motor electrical connector.
3. Remove the blower motor mounting screws.

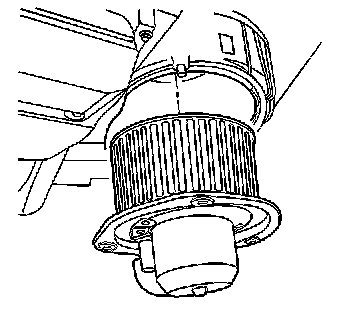

4. Remove the blower motor from the HVAC module assembly.

INSTALLATION PROCEDURE




1. Install the blower motor to the HVAC module assembly.
2. Install the blower motor mounting screws.

Tighten the screws to 1.8 N.m (16 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.




3. Connect the blower motor electrical connector.
4. Install the right side I/P insulator.
