Saturn Truck
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Turn Signal/Multifunction Switch
Turn Signal/Multifunction Switch

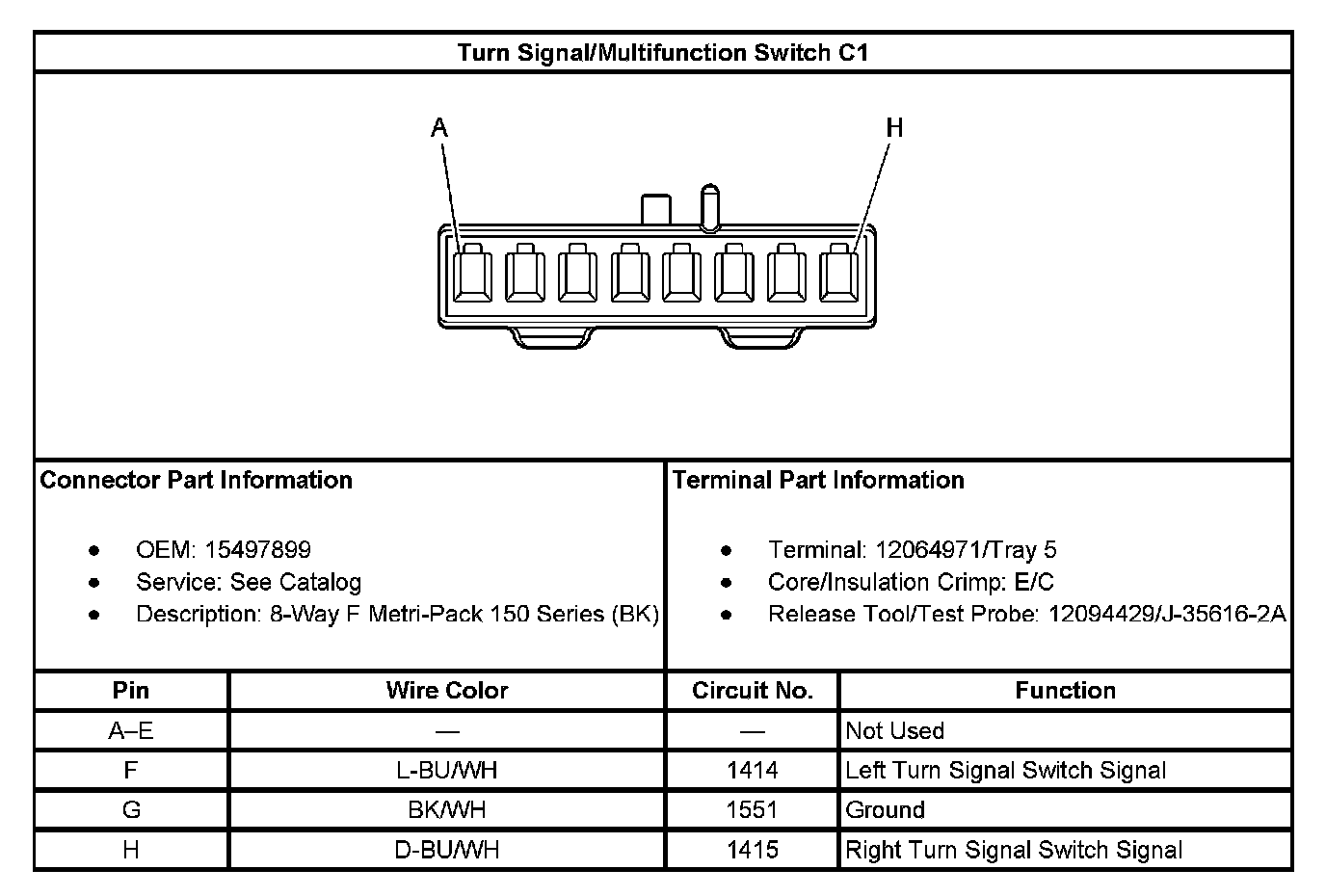

Turn Signal/Multifunction Switch C1:

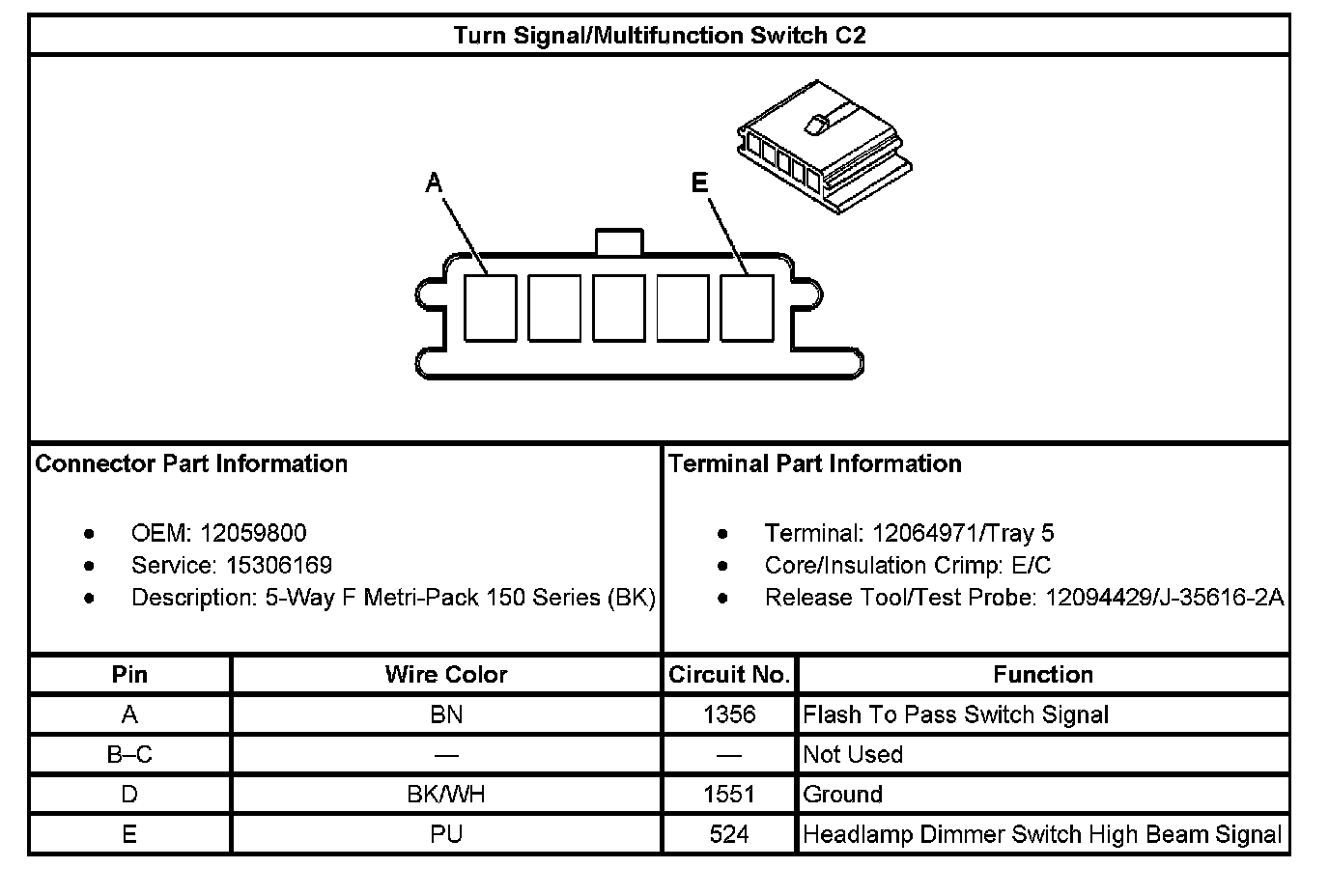

Turn Signal/Multifunction Switch C2:

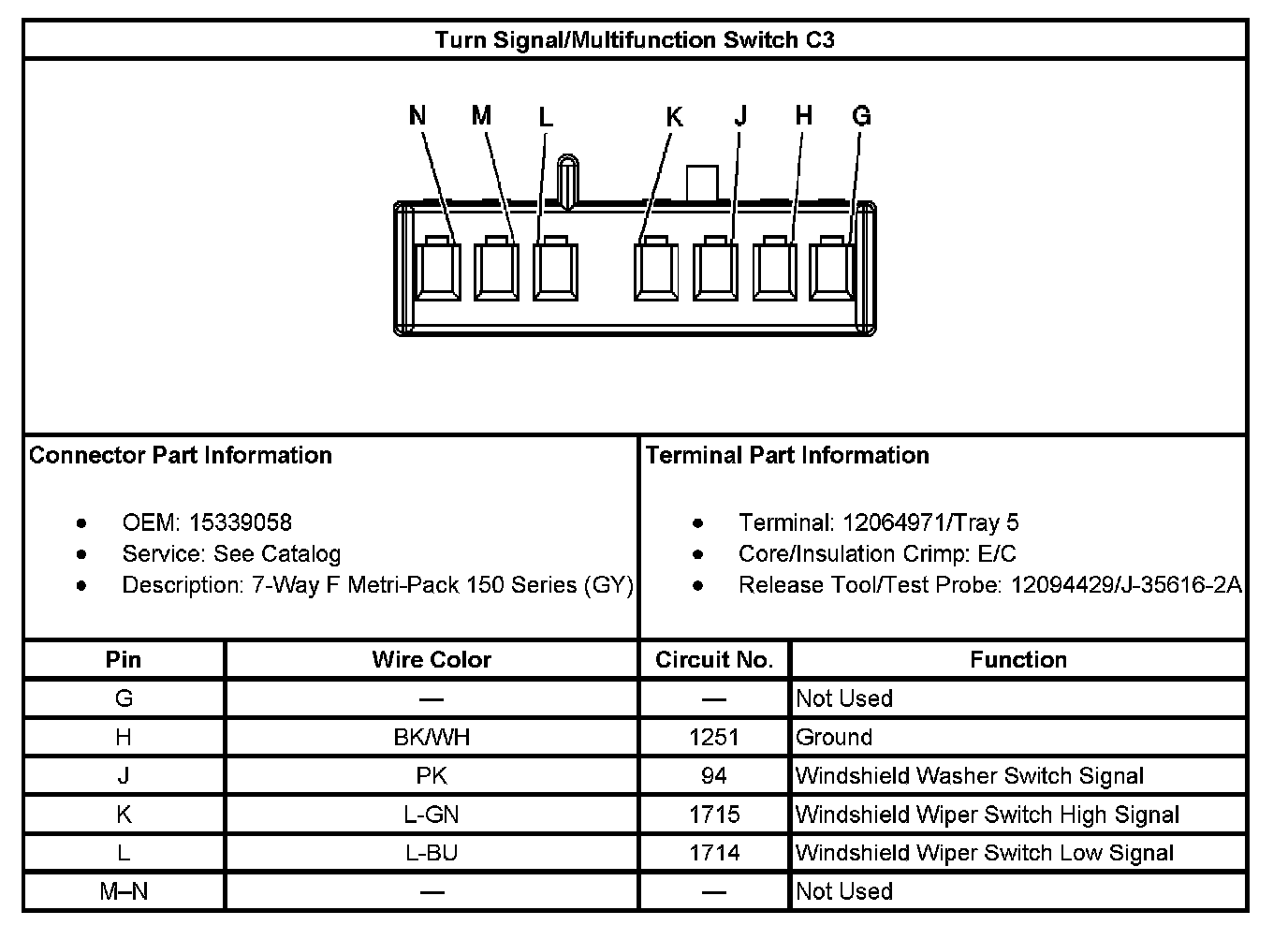

Turn Signal/Multifunction Switch C3:

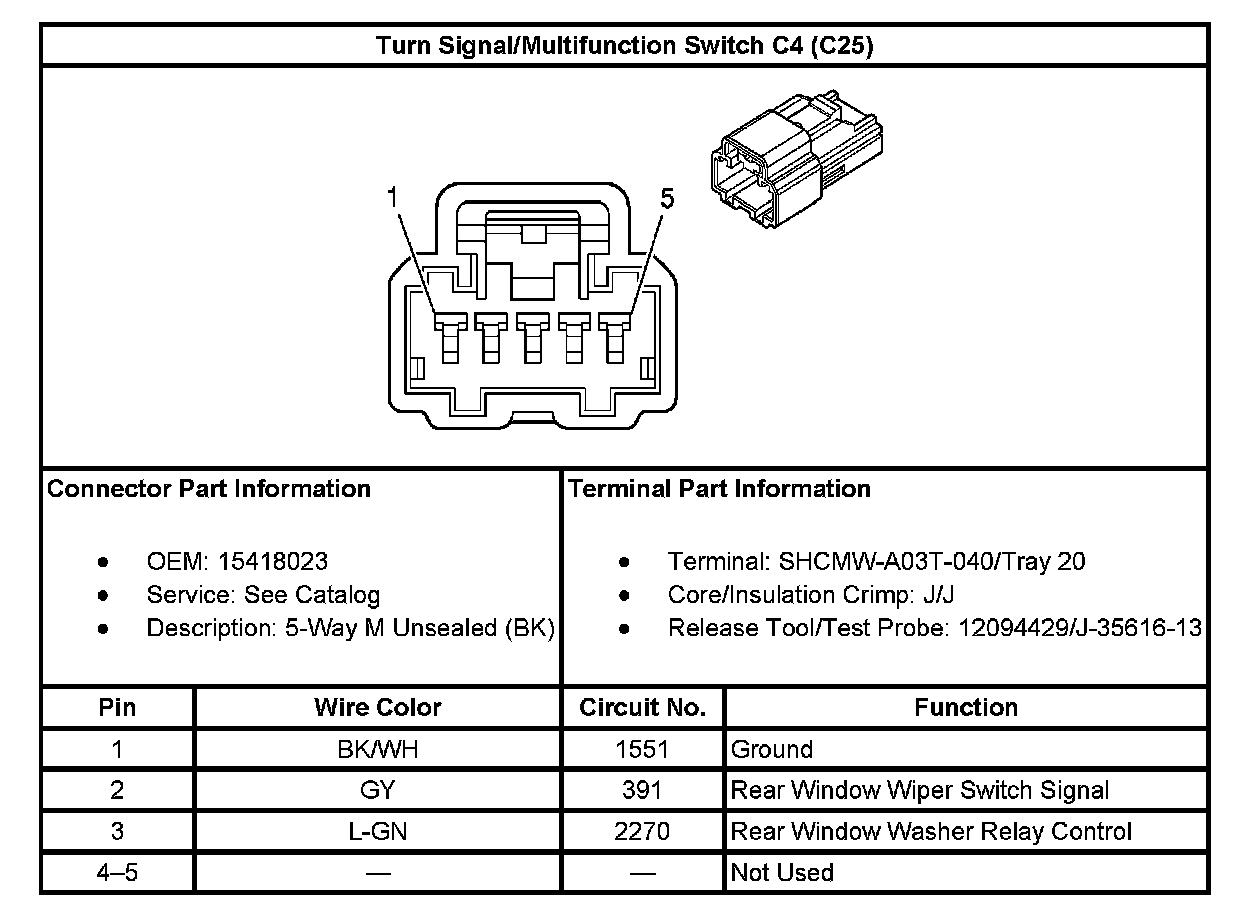

Turn Signal/Multifunction Switch C4 (With RPO Code C25):
