Home >> Saturn Truck >> 2006 >> RELAY AWD V6-3.5L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Inflatable Restraint Steering Wheel Module

Inflatable Restraint Steering Wheel Module

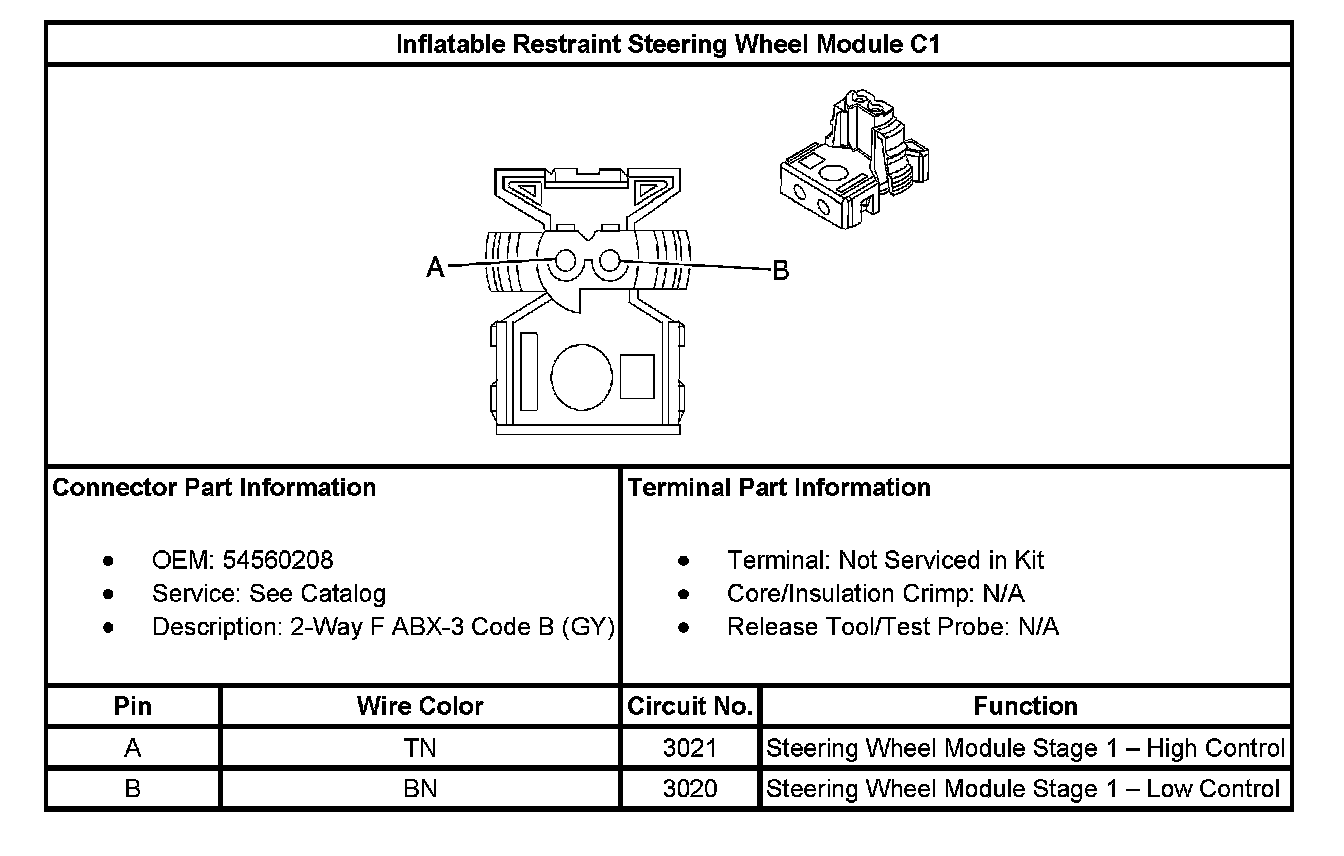

Inflatable Restraint Steering Wheel Module C1:

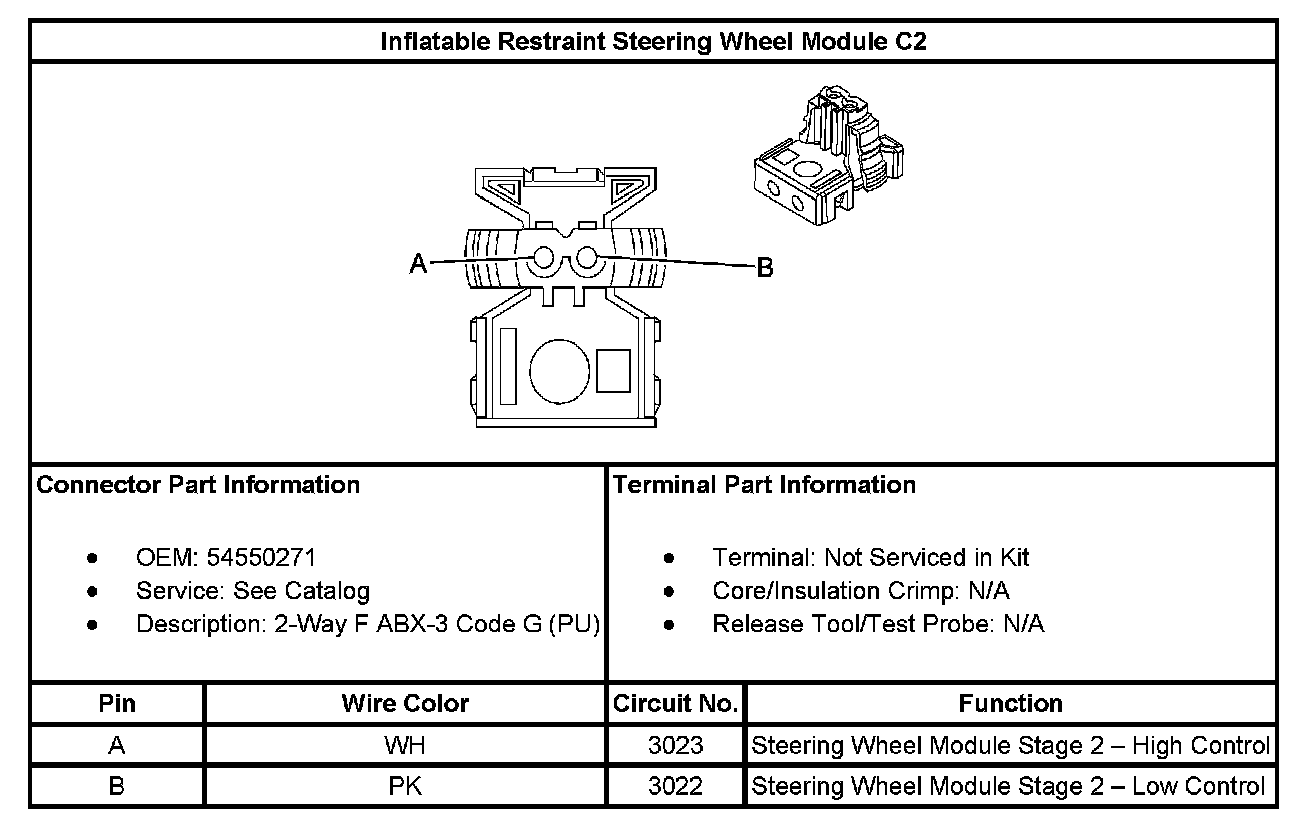

Inflatable Restraint Steering Wheel Module C2:
