Steering Control Module

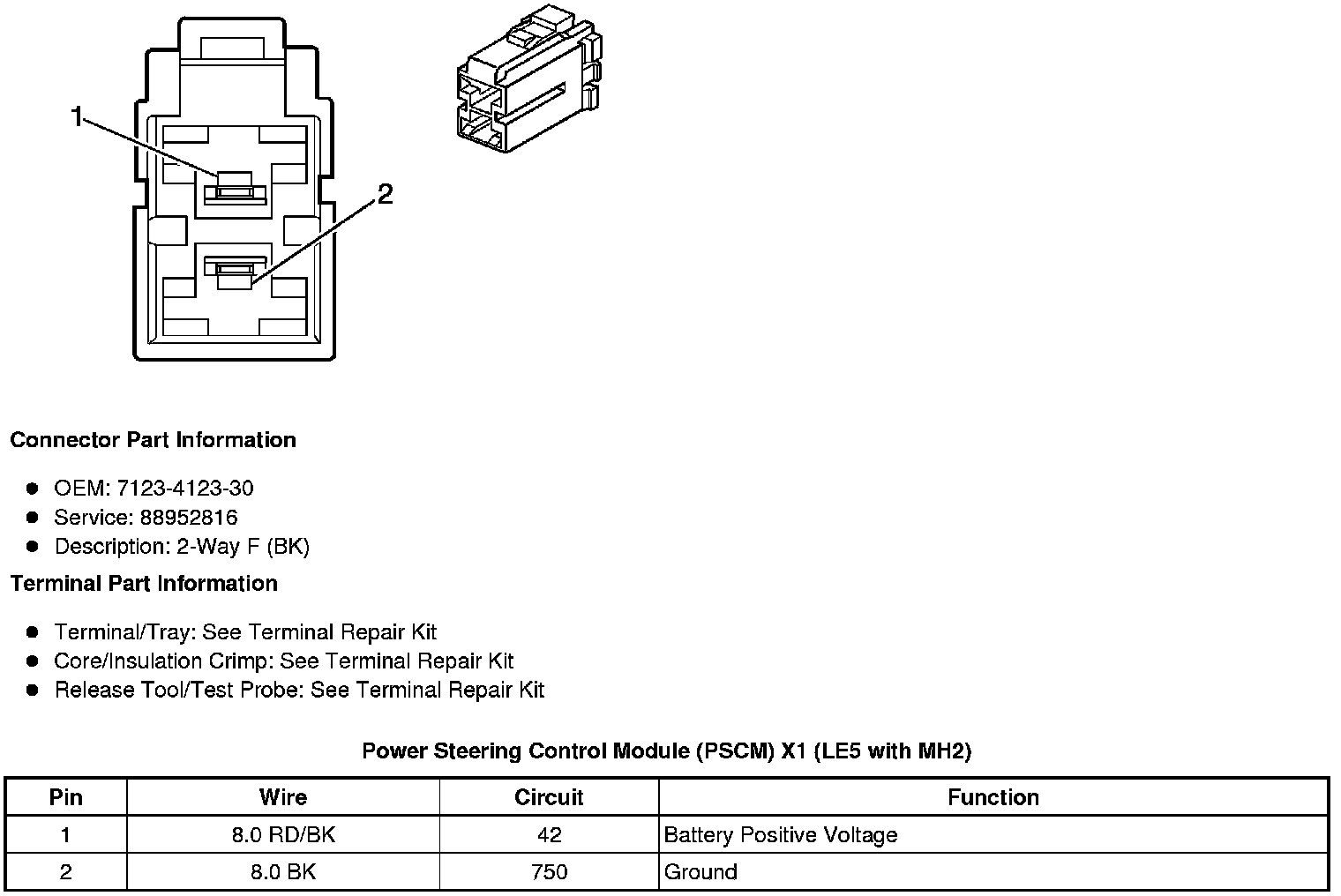

Power Steering Control Module (PSCM) X1 (LE5 2.4L with MH2)

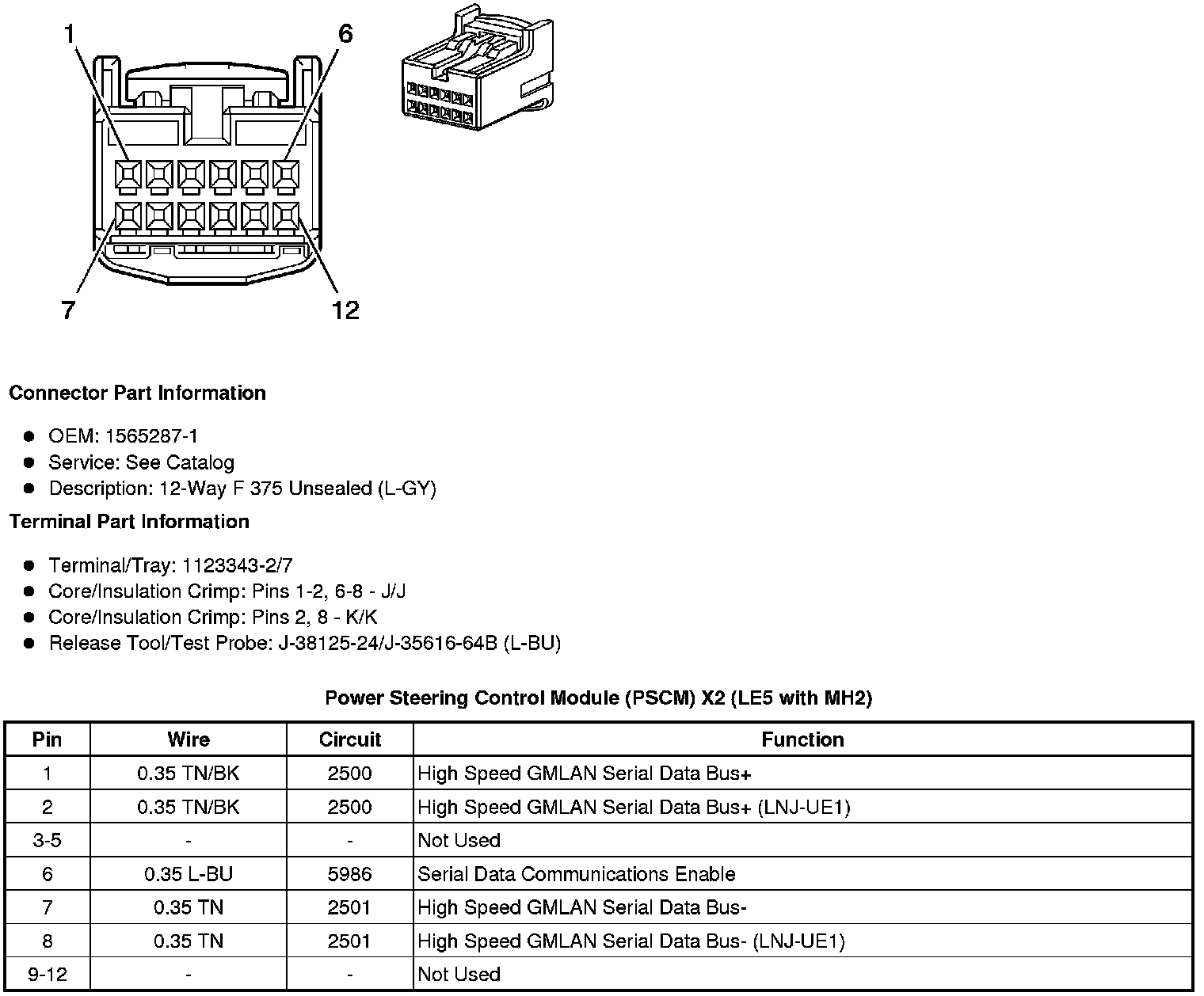

Power Steering Control Module (PSCM) X2 (LE5 2.4L with MH2)

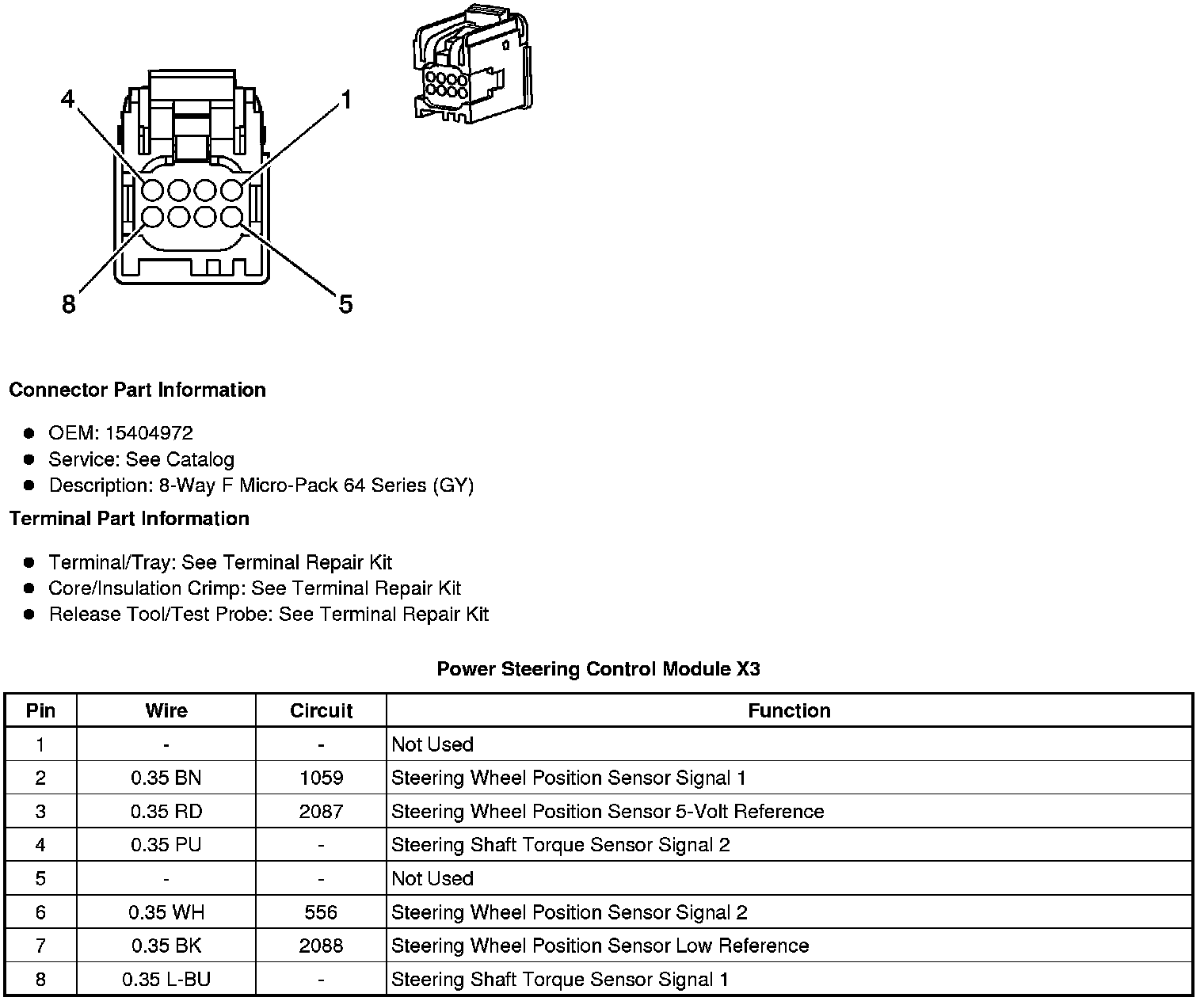

Power Steering Control Module (PSCM)X3 (LE5 2.4L with MH2)






Pump Driver (HP7)
