Initial Inspection and Diagnostic Overview

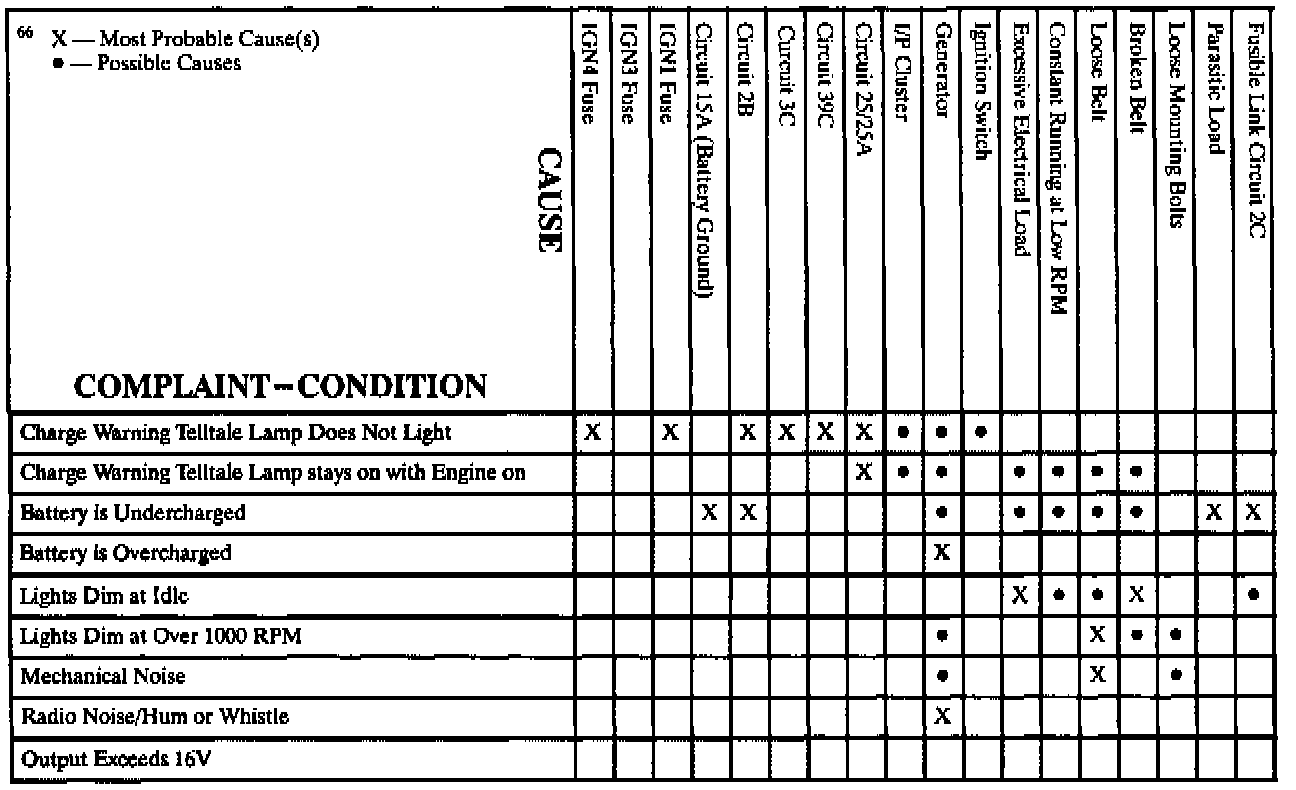

Fig. 2 Alternator System Troubleshooting Chart.:






Refer to Fig. 2. for alternator system troubleshooting procedures.
