Assembly

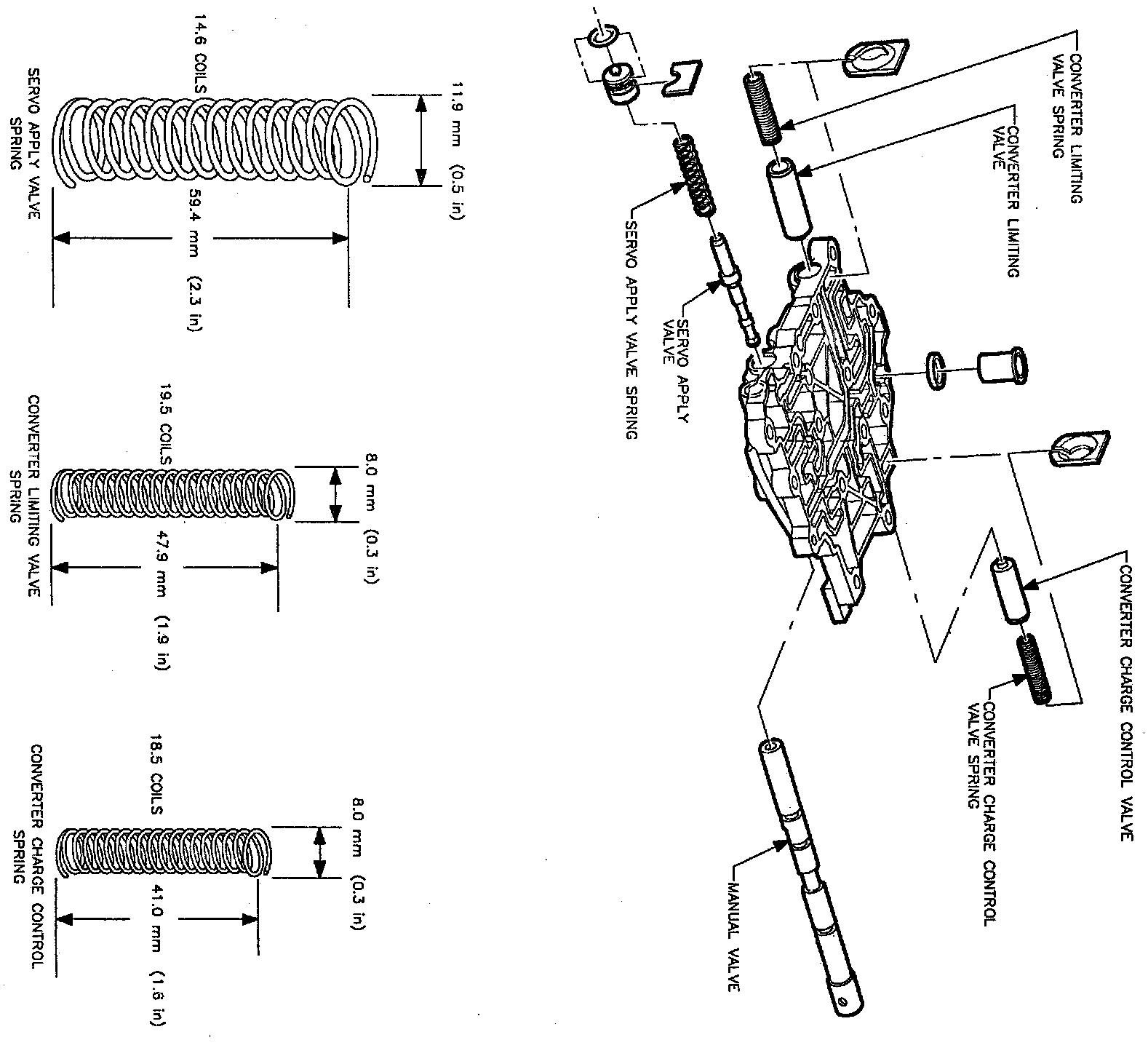

Spring and Check Ball Placement:

Upper Valve Body:

Lower Valve Body:

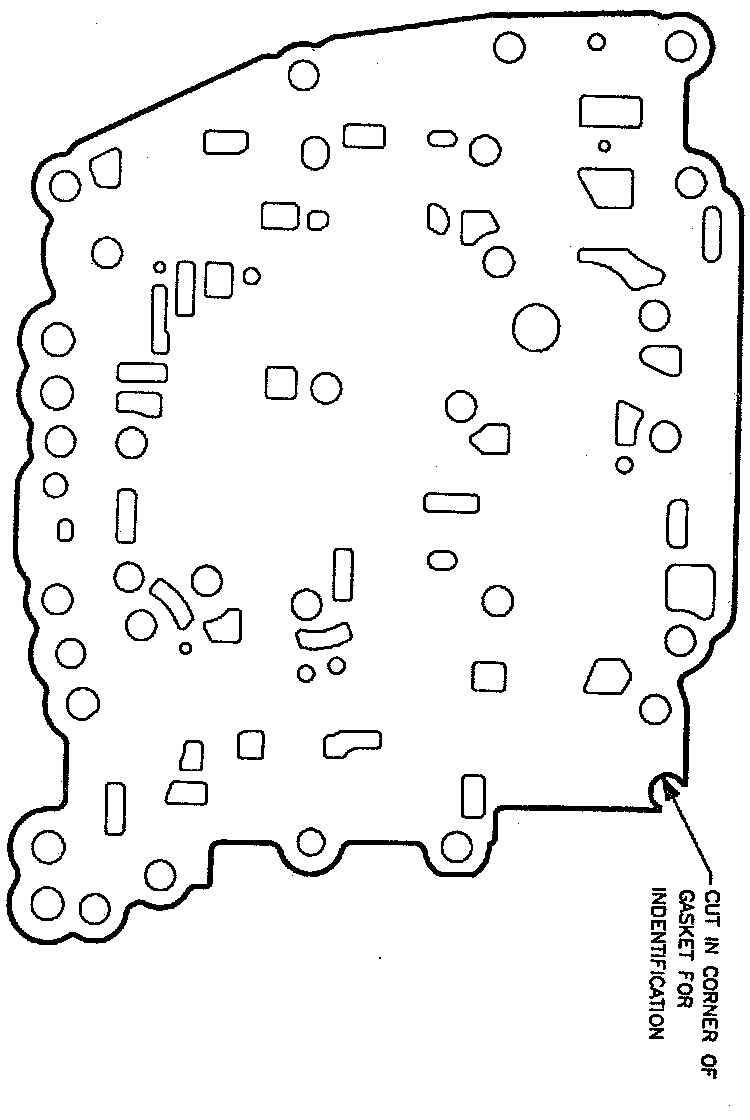

Valve Body Gasket:

IMPORTANT: Be sure all parts are clean and free of lint and dirt. Valve body should be assembled in a clean area.

1. Install valves, new gaskets, and check balls according to the figures.
2. Install two halves of valve body and install the one bolt holding the two halves together.

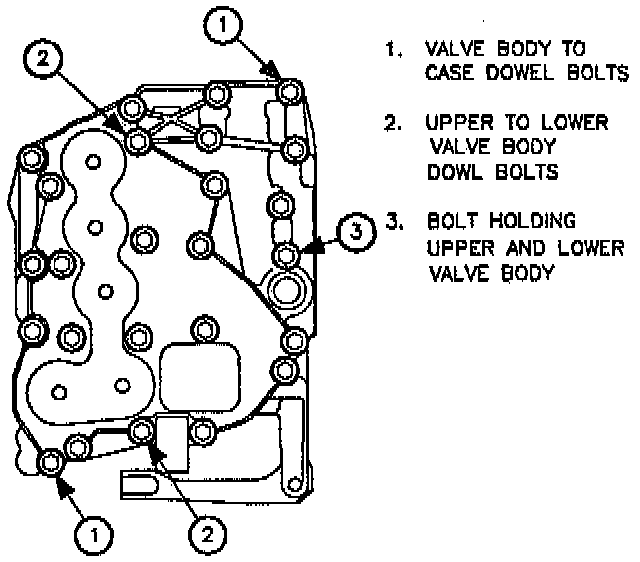

IMPORTANT: The dowel bolts must be placed in the holes shown to align the upper valve body to the lower valve body.

3. Lube actuator O-rings.
4. Install actuators using a twisting motion.
5. Install detent arm and bolt.
- Torque: 11 N.m (97 inch lbs).

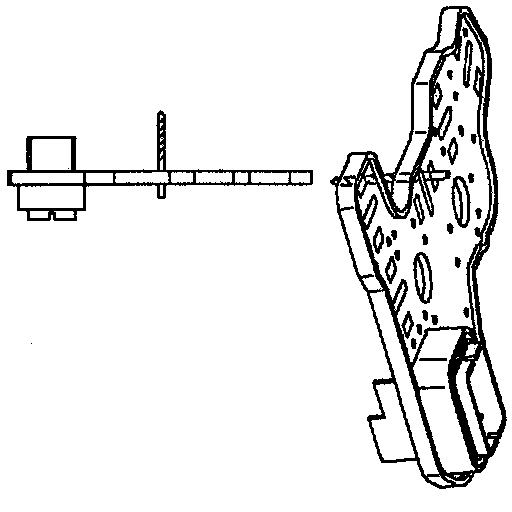

6. Check connector plate terminals with a #43 (2.25 mm) drill bit. There should be a slight drag on the shank. If there is no drag replace the connector plate.





7. Align the actuator pins to the connector plate.

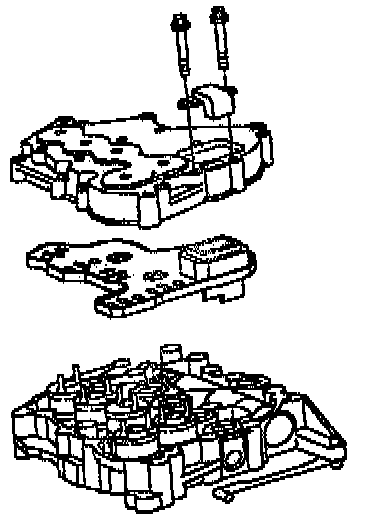

8. Install the connector plate.
9. Install the actuator cover.





10. Install the actuator cover bolts and finger tighten.

IMPORTANT: Clean and lubricate fasteners with Transaxle Fluid. Wipe off excess fluid and install.

IMPORTANT: The dowel bolts must be placed in the holes shown to align the upper valve body to the lower valve body.

NOTICE: Over-torquing bolts can cause valves to bind.

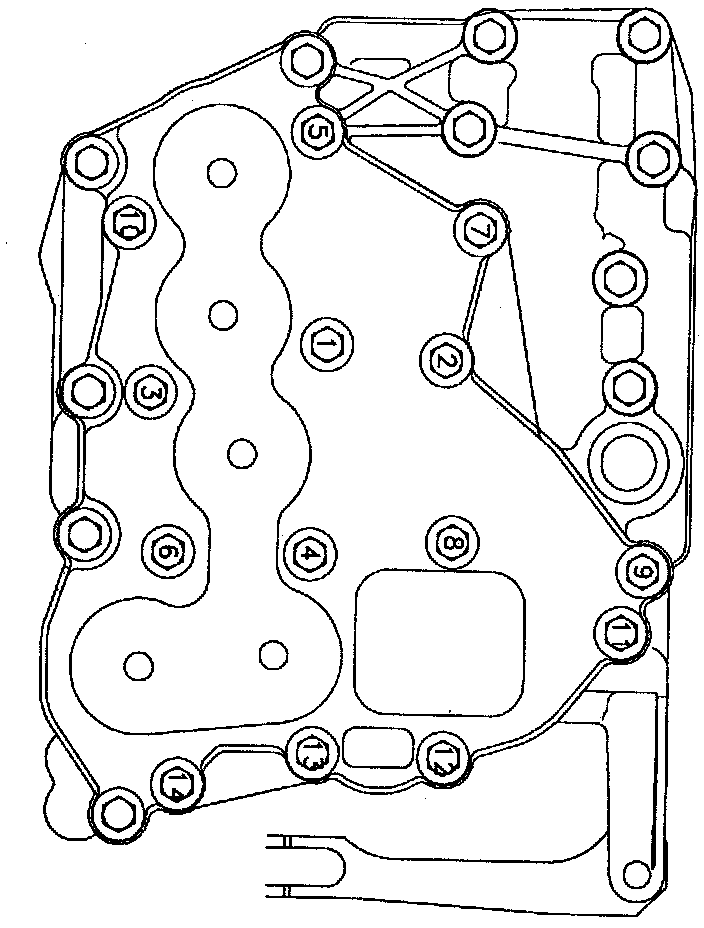

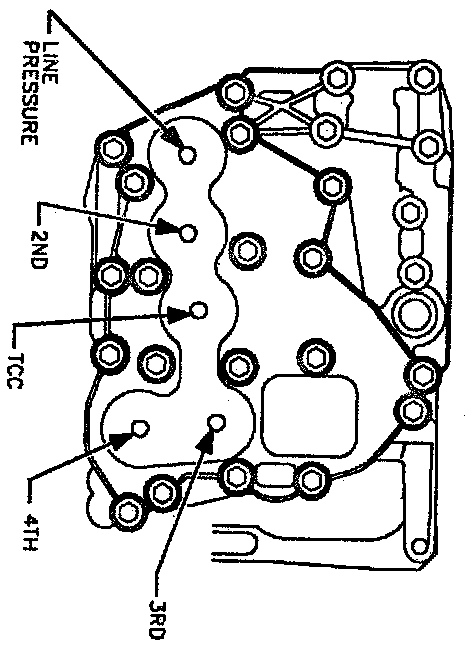

11. Torque actuator cover bolts using torque sequence shown in illustration.
- Torque: 11 N.m (97 inch lbs).
