Electrical Diagrams

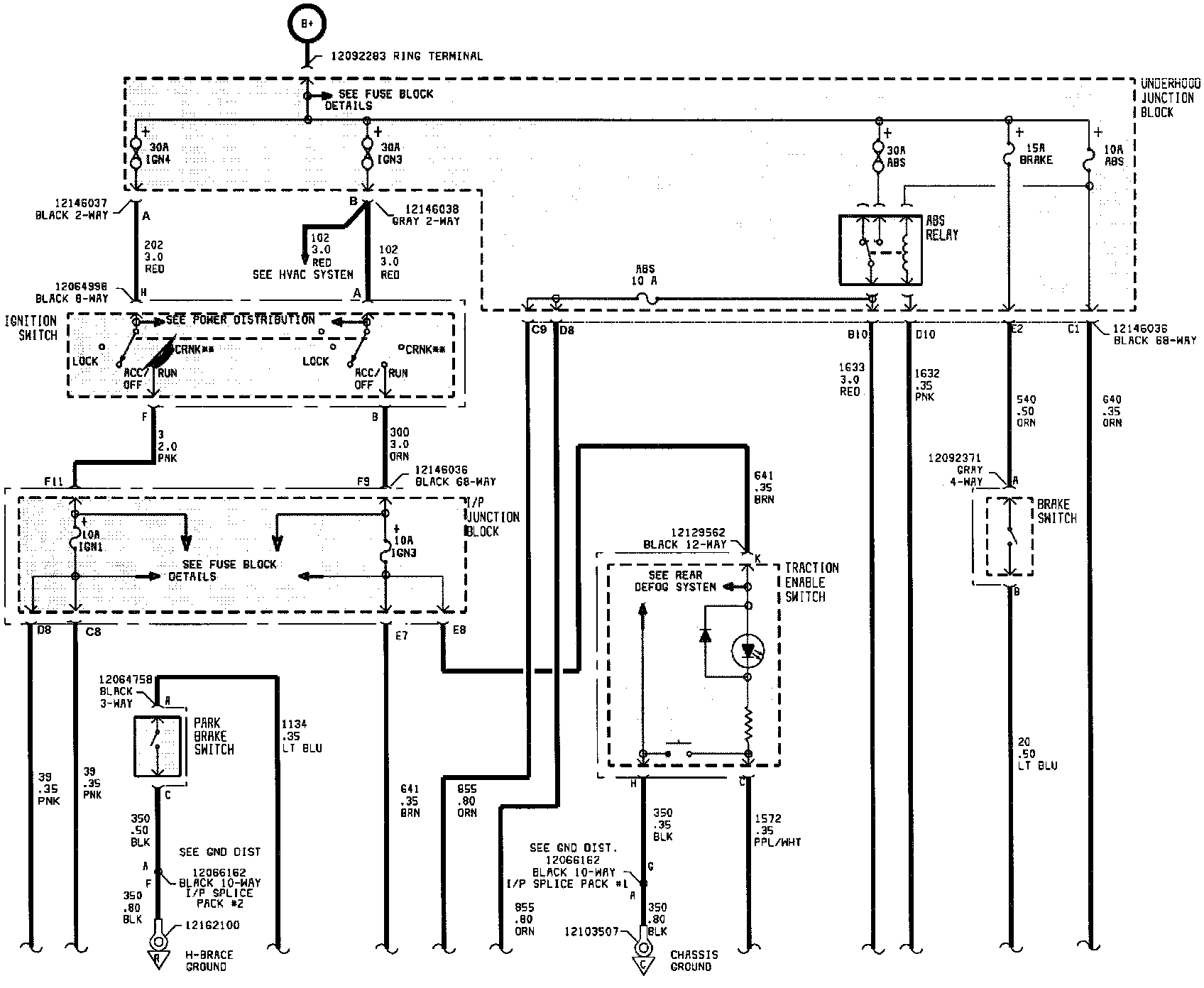

Antilock Brake System (ABS) With Traction Switch (Part 1 Of 3):

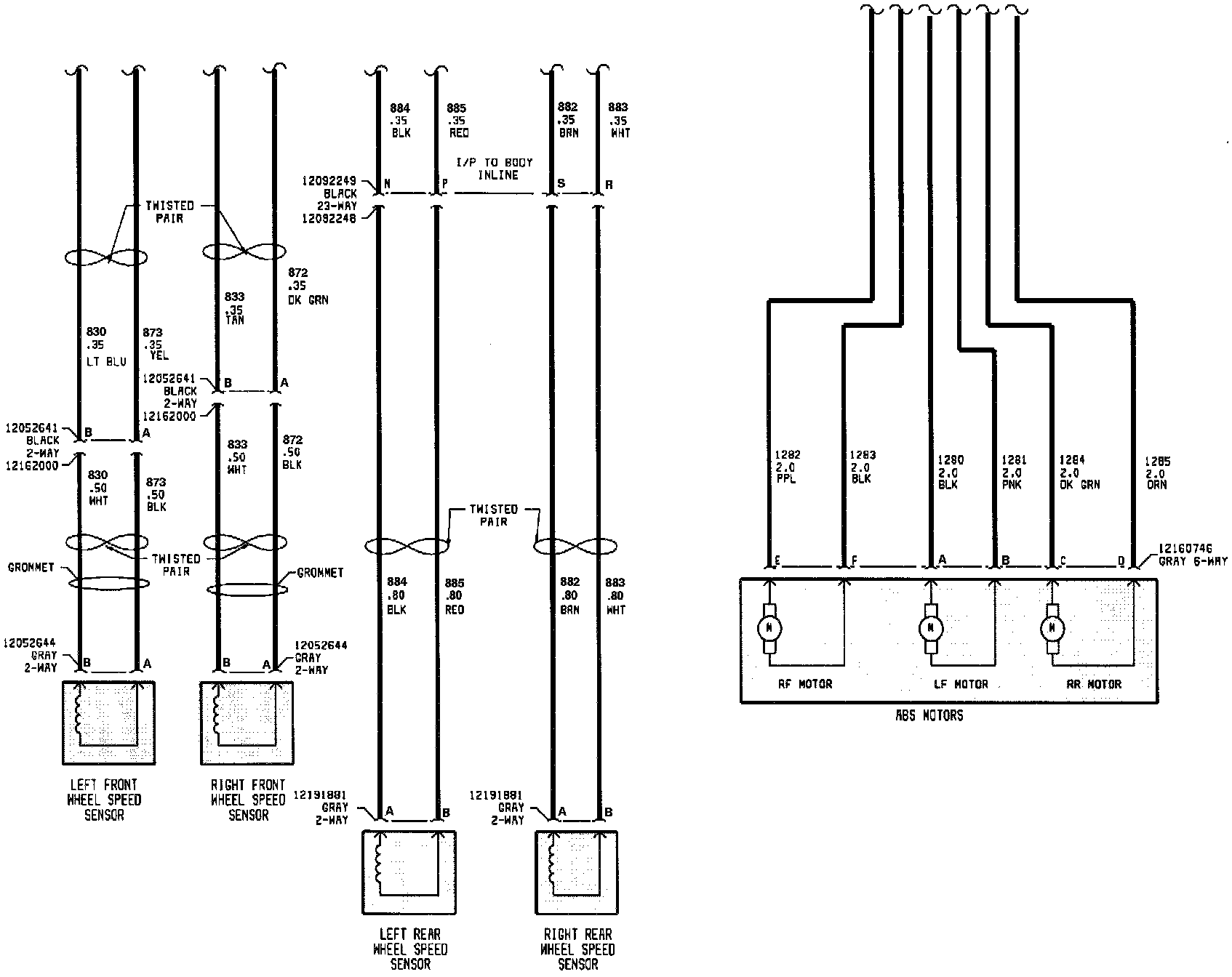

Antilock Brake System (ABS) With Traction Switch (Part 2 Of 3):



Antilock Brake System (ABS) With Traction Switch (Part 3 Of 3):
