Home >> Saturn >> 1999 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams

Electrical Diagrams

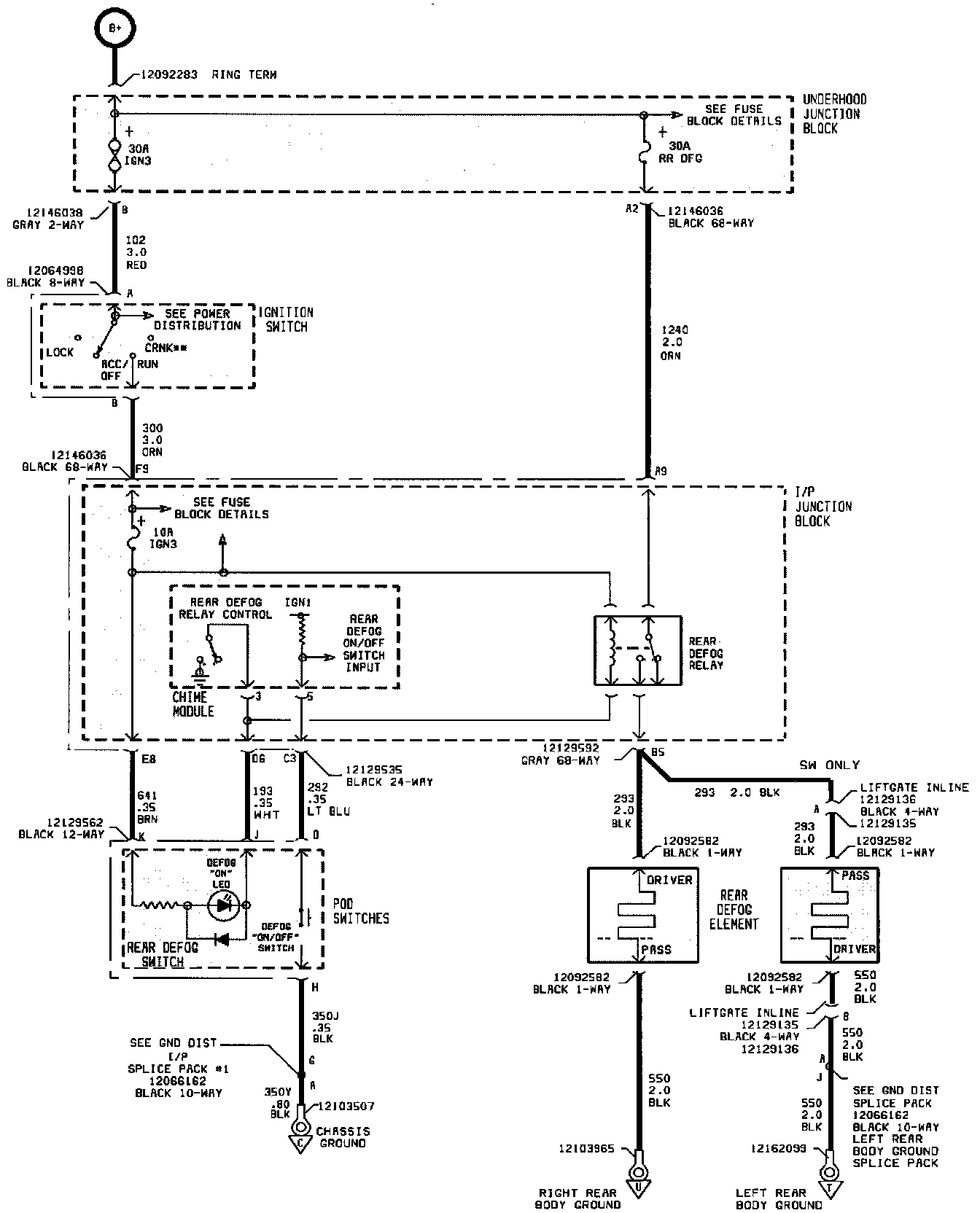

Rear Defogger- Left Hand Drive:
