Air Temperature Sensor ( Ambient / Intake )
>>
Diagrams
>>
Connector Views
>>
Right Hand Drive
Right Hand Drive

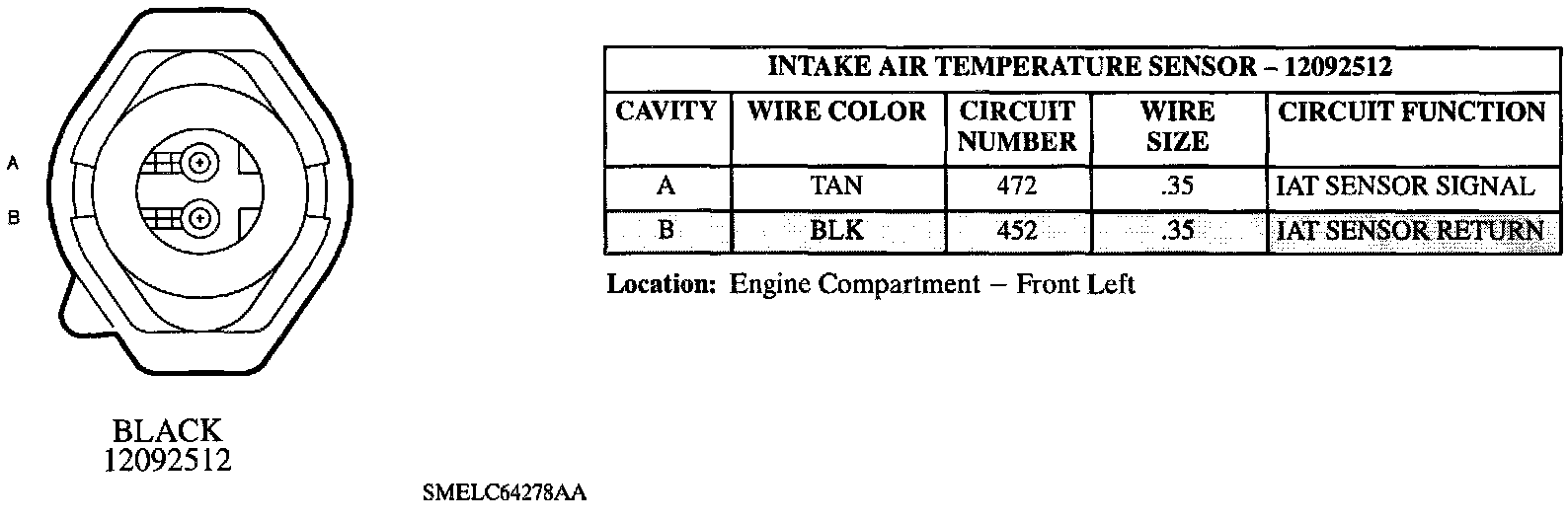

Intake Air Temperature Sensor:
