Home >> Saturn >> 1999 >> SW2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Diagrams >> Right Hand Drive

Right Hand Drive

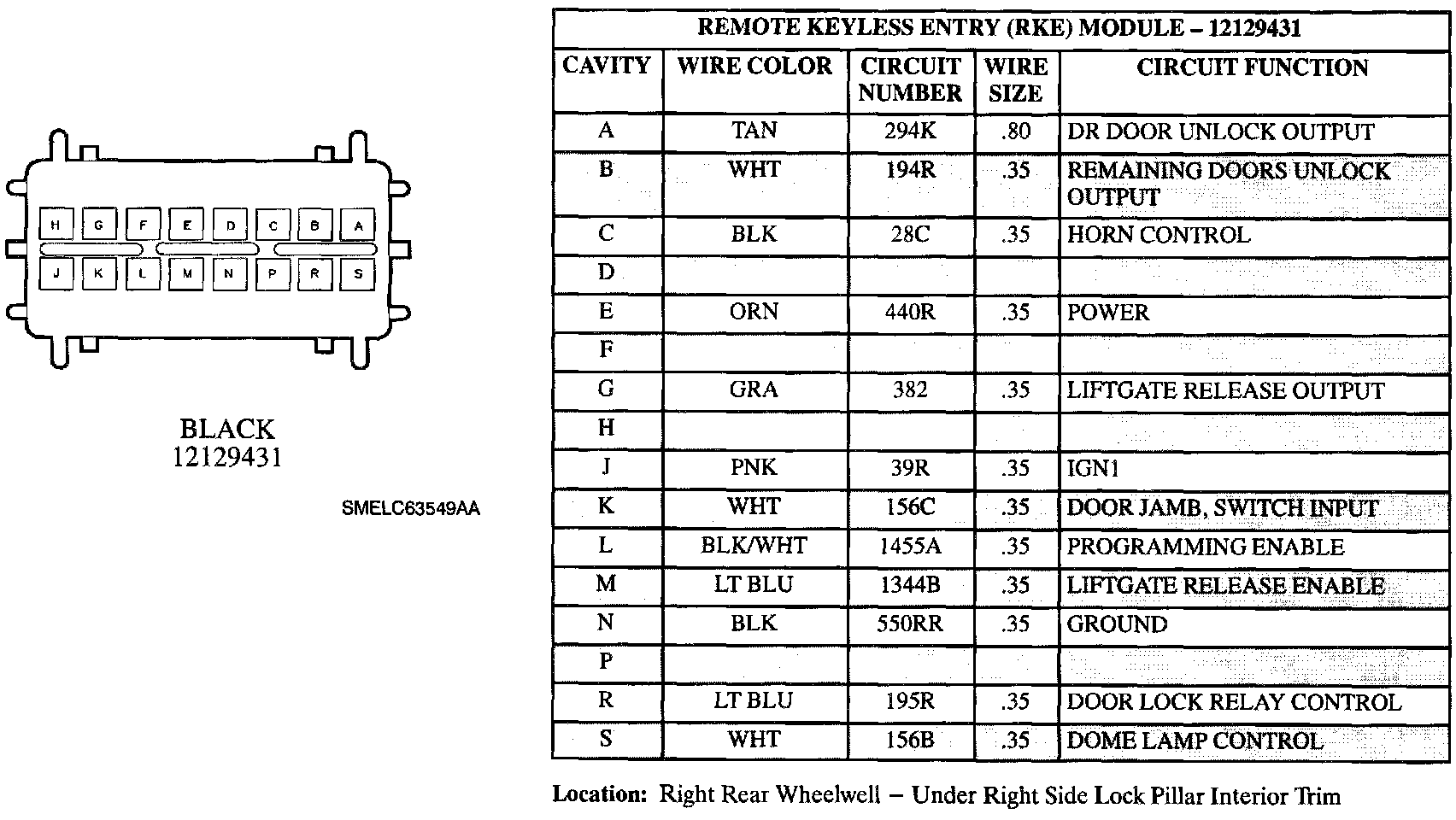

Remote Keyless Entry (RKE) Module:
