Home
>>
Saturn
>>
1999
>>
SW2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Fan Switch
>>
Right Hand Drive
Right Hand Drive

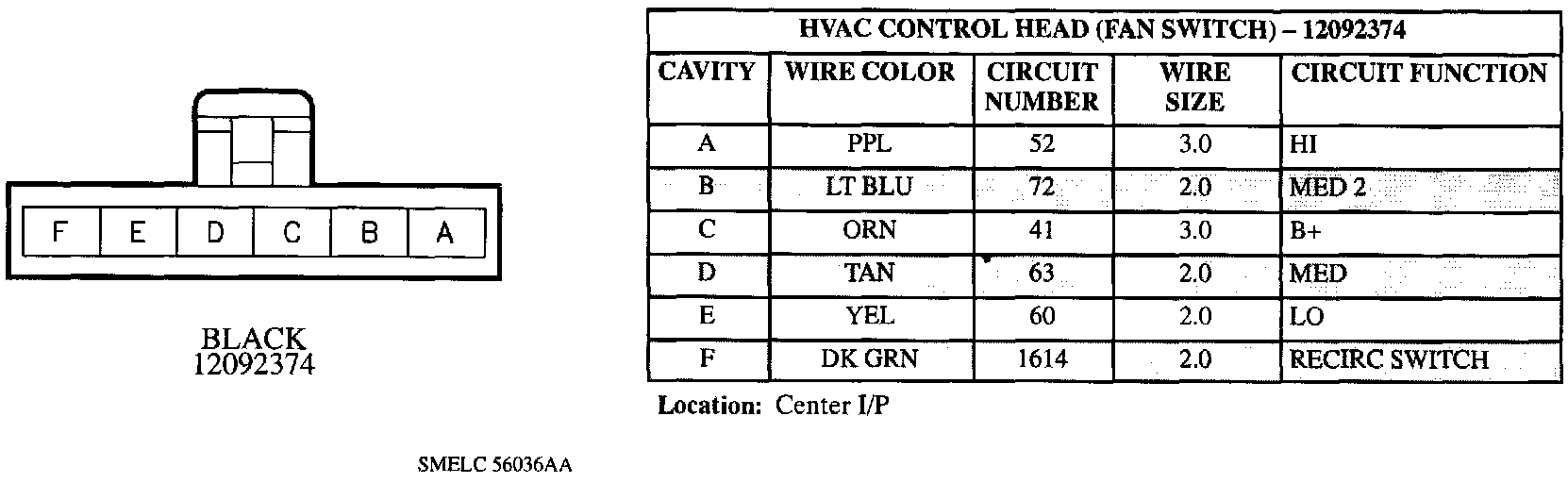

HVAC Control Head (Fan Switch):
