Home >> Saturn >> 1999 >> SW2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Diagrams >> Connector Views >> Right Hand Drive

Right Hand Drive

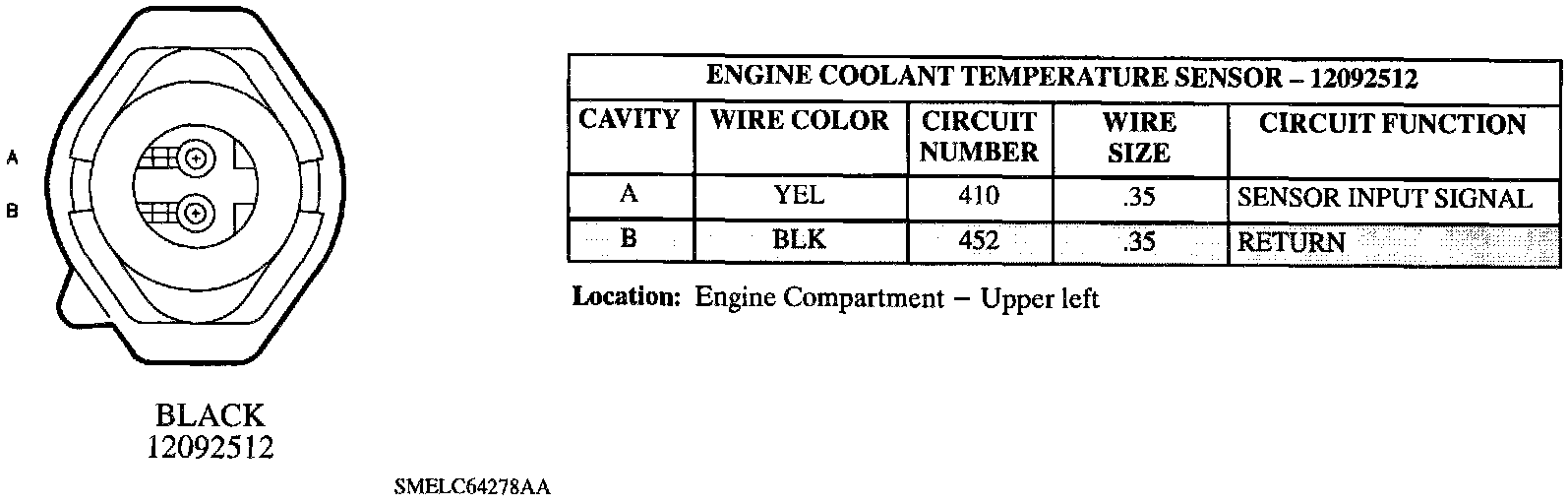

Engine Coolant Temperature Sensor:
