Home
>>
Saturn
>>
1999
>>
SW2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
>>
Diagrams
>>
Connector Views
>>
Right Hand Drive
Right Hand Drive

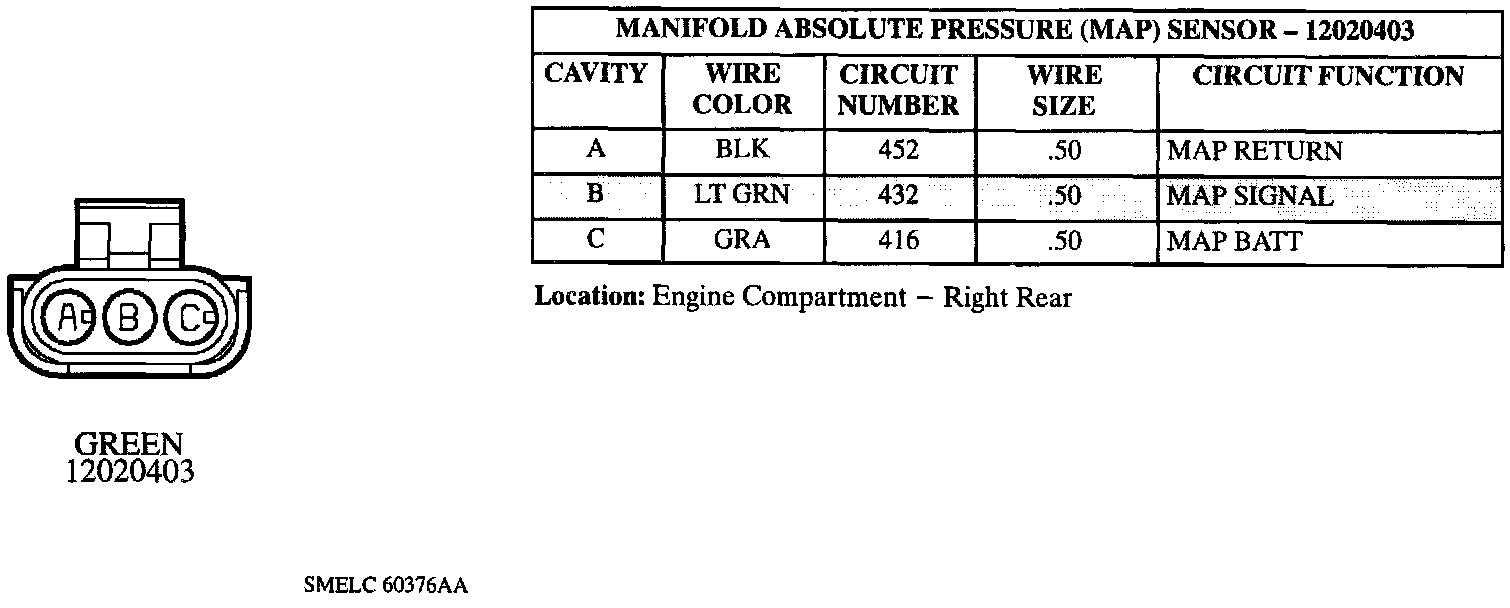

Manifold Absolute Pressure (MAP) Sensor:
