Ride/Trim Height Specifications

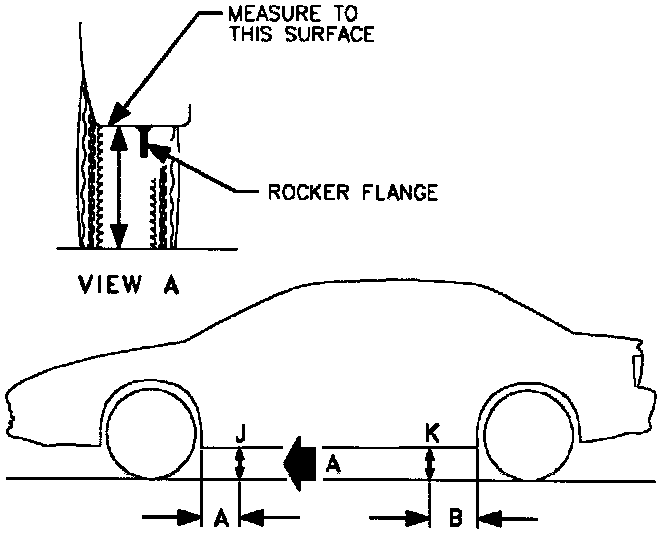

(Figure 1). Curb Height Measurement Points:
Wagon
A: 117 mm (4.6 inch)
B: 105 mm (4.1 inch)
J Front Rocker Height Range: 201 - 233 mm (7.8 - 9.1 inch)
K Rear Rocker Height Range: 202 - 234 mm (8.1 - 9.5 inch)
Wagon
A: 117 mm (4.6 inch)
B: 105 mm (4.1 inch)
J Front Rocker Height Range: 201 - 233 mm (7.8 - 9.1 inch)
K Rear Rocker Height Range: 202 - 234 mm (8.1 - 9.5 inch)
