Chart 3

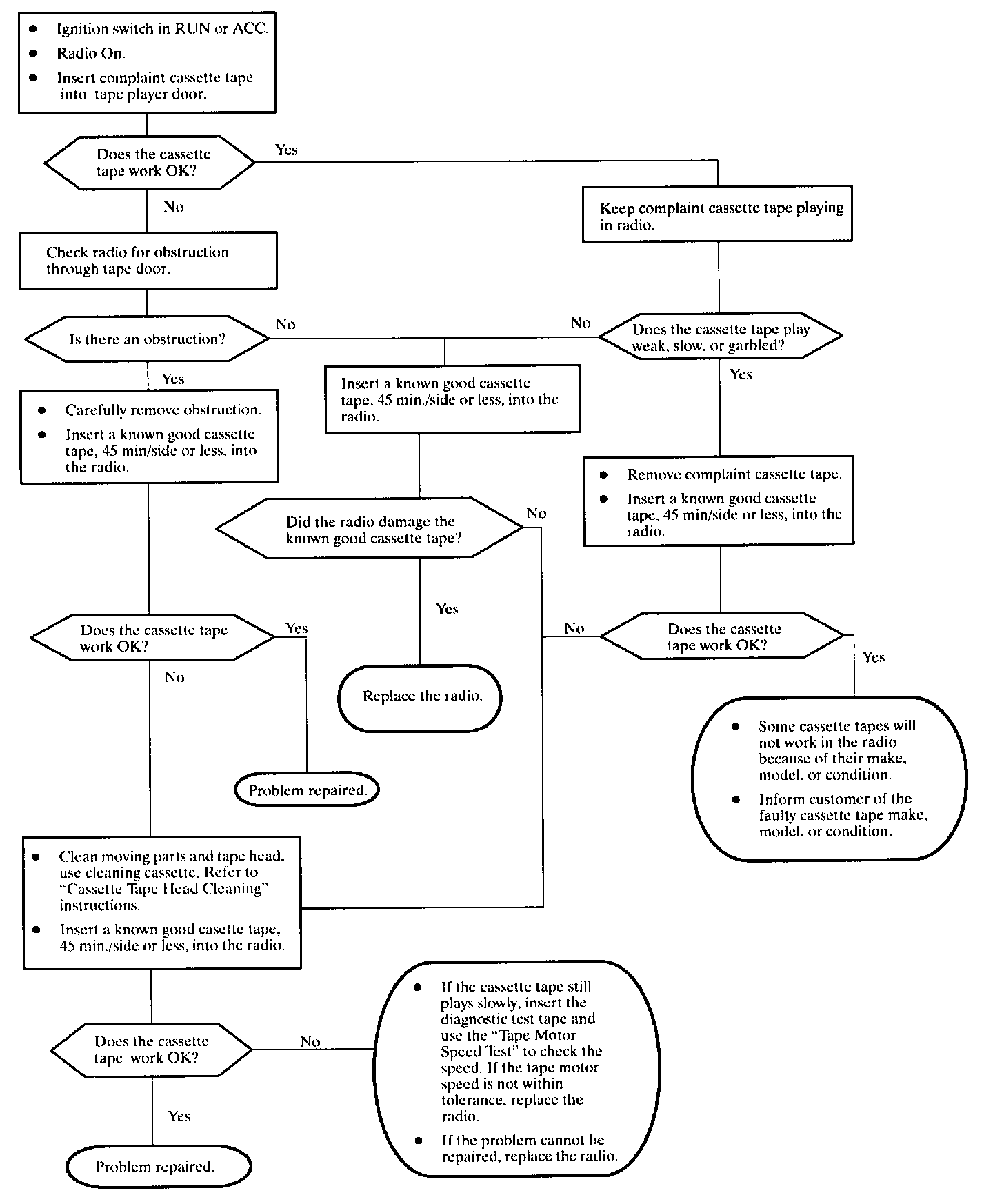

Diagnostic Chart 3:

Tape Player Does Not Operate Properly - Cassette Tape Will Not Play; Cassette Tape Plays Weak, Slow, or Garbled; Cassette Tape Gets Destroyed

IMPORTANT: Before continuing with any diagnostics, check the On Board Diagnostics to see if any Tape Errors (E- -01, E- -02, or E- -03) have been set Record codes and clear Continue with diagnostics.
