Home >> Saturn >> 2001 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Side Air Bag >> Side Air Bag Sensor - Left

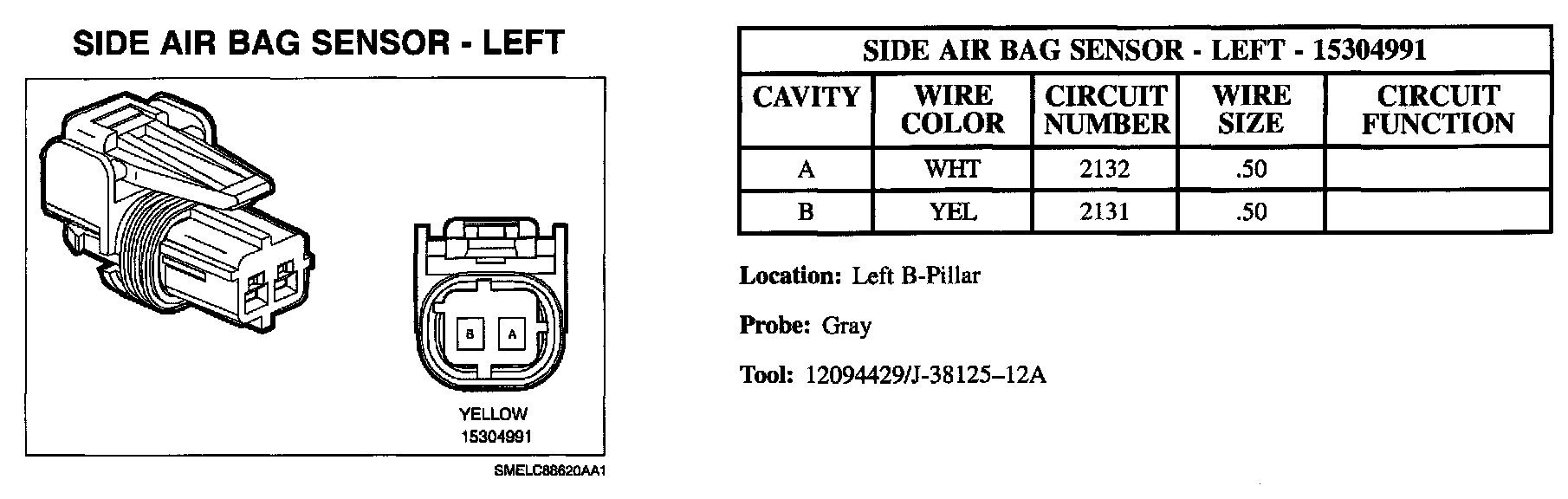

Side Air Bag Sensor - Left

Side Air Bag Sensor - Left:
