16. Fluid Pump Removal

Fluid Pump Removal

Tools Required
^ J43445 Fluid Pump Remover





1. Remove the 2 remaining bolts securing the fluid pump assembly to the transmission case assembly.

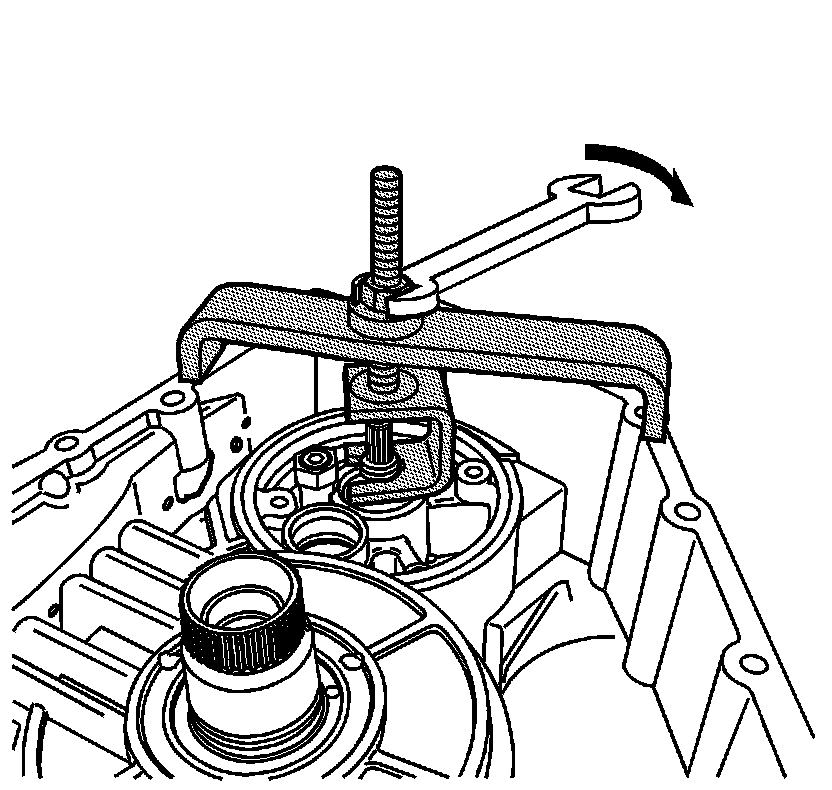

2. Position the forked clamp of the J43445 under the splines of the fluid pump shaft.
3. Position the support bracket of the J43445 on the transmission case assembly.

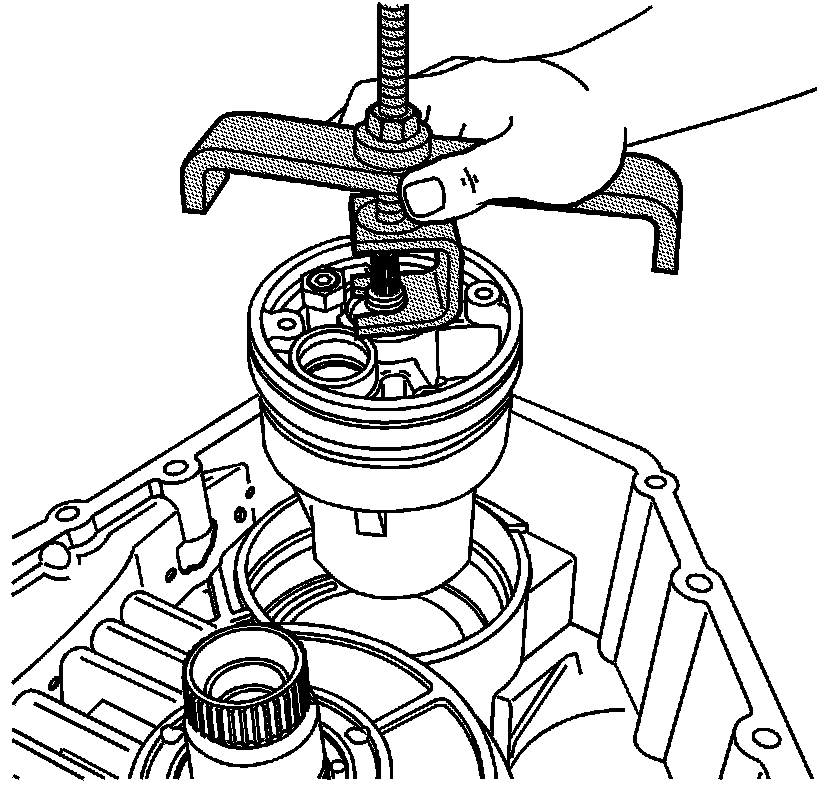

4. Turn the hex nut of the J43445 clockwise in order to lift the fluid pump assembly out of the transmission case assembly.





5. Remove the fluid pump assembly.
6. Remove the J43445.
