23. Wiring Harness Removal

WIRING HARNESS REMOVAL

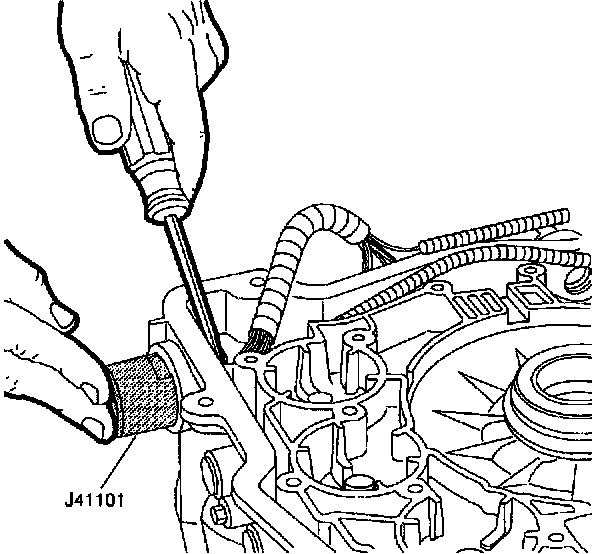

1. Push the Pass-Through Connector Remover J41101 Onto the pass-through connector from the outside of the transaxle case in order to compress the pass-through connector's retaining tabs.





2. With retaining tabs compressed, use a screwdriver in order to remove the pass-through connector through the inside of the transaxle case.
Remove wiring harness.
