Brake Warning Indicator Inoperative

Brake Warning Indicator Inoperative

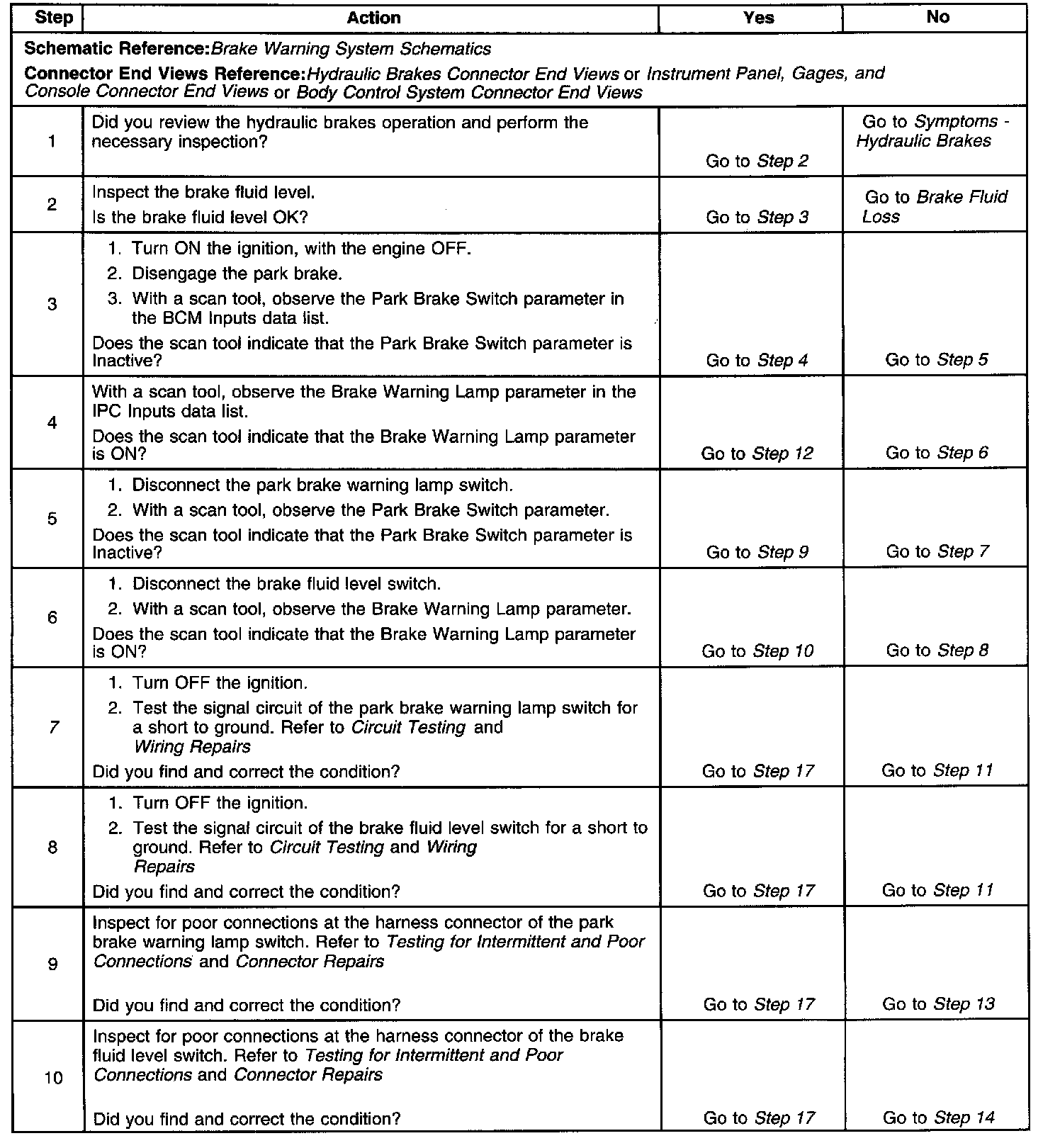

Test 1-10:

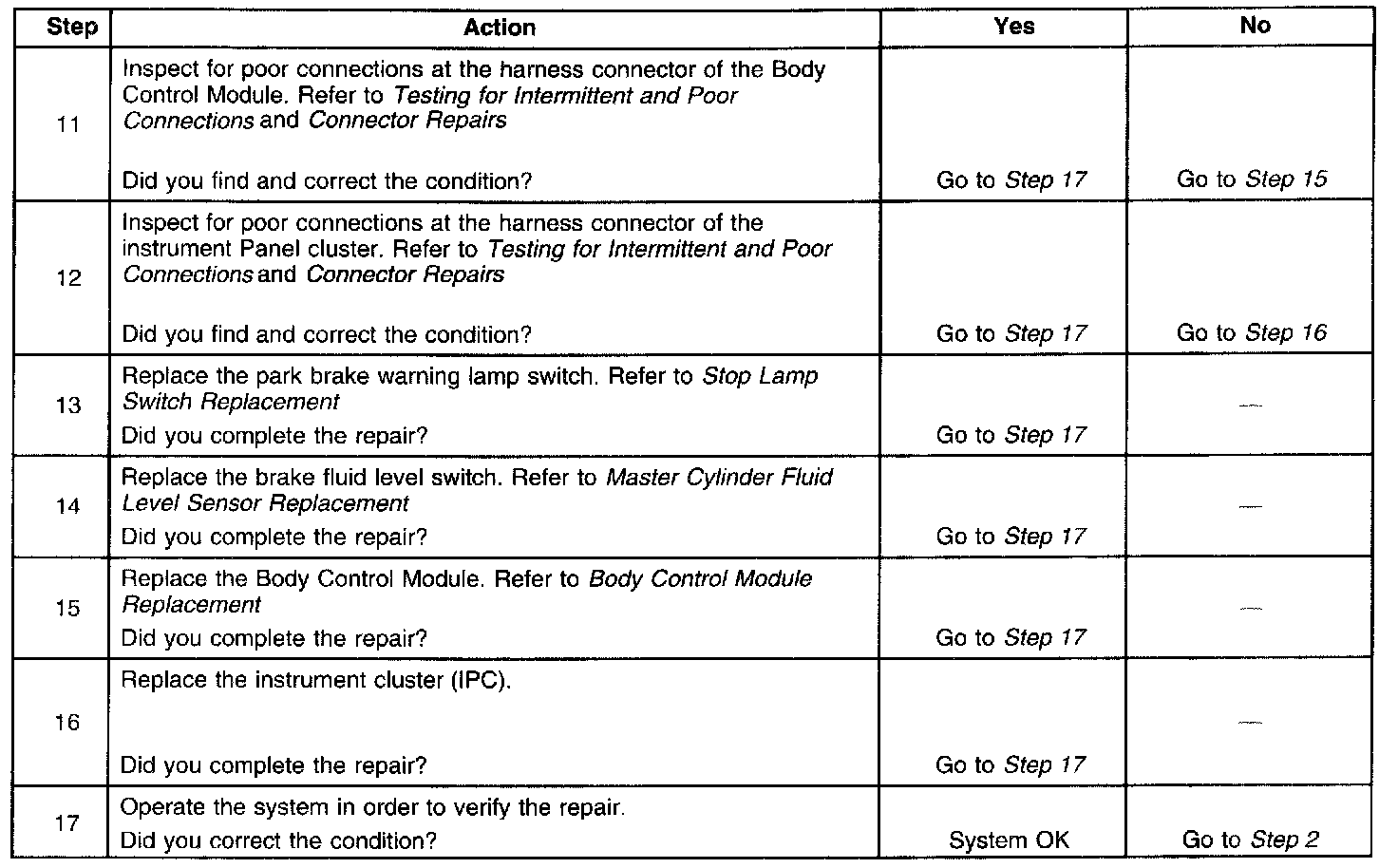

Test 11-17:

Test Description
The number(s) refer to the step number(s) on the diagnostic table.
7. If the fuse in the jumper opens when you perform this test, the signal circuit of the brake fluid level switch is shorted to voltage.
