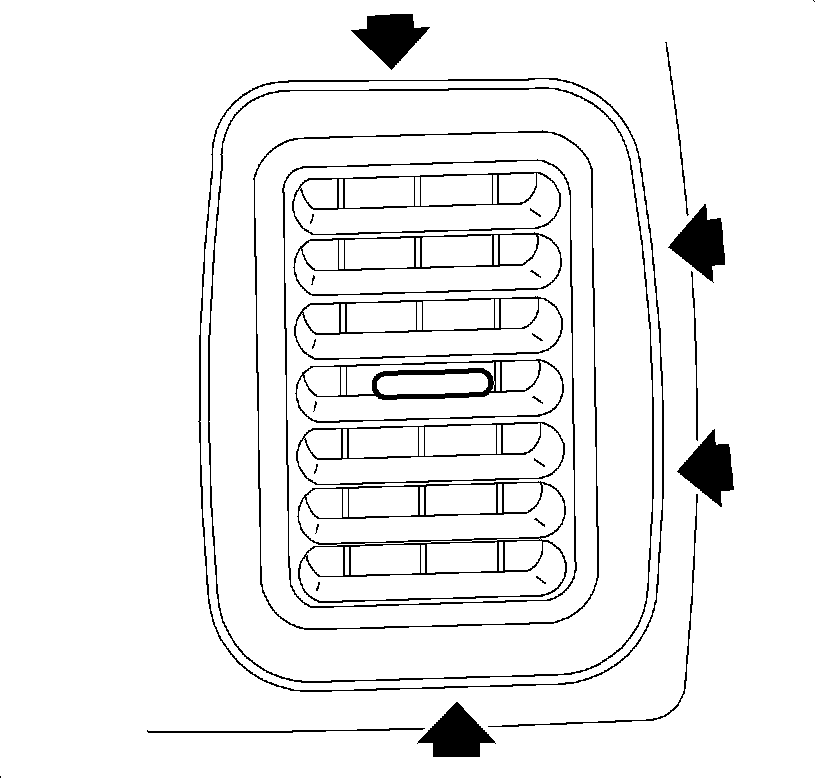

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT

REMOVAL PROCEDURE




1. Insert a flat-bladed tool between the instrument panel (I/P) and the air deflector.
2. Remove the deflector from the I/P.

INSTALLATION PROCEDURE




1. Install the deflector to the I/P.
2. Press the deflector to the I/P until the deflector is fully seated.
