Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Transmission Fluid Pressure (TFP) Manual Valve.........

Transmission Fluid Pressure (TFP) Manual Valve.........

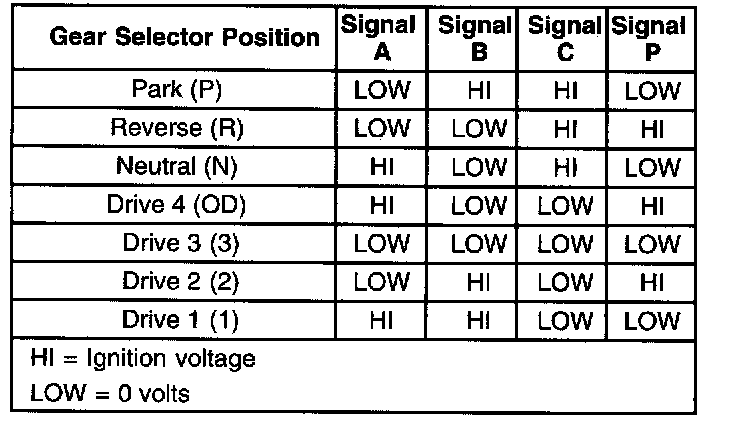

Transmission Range Switch Logic 2.0:
