29. Input Internal Gear, Forward Clutch Hub Removal

Input Internal Gear, Forward Clutch Hub Removal

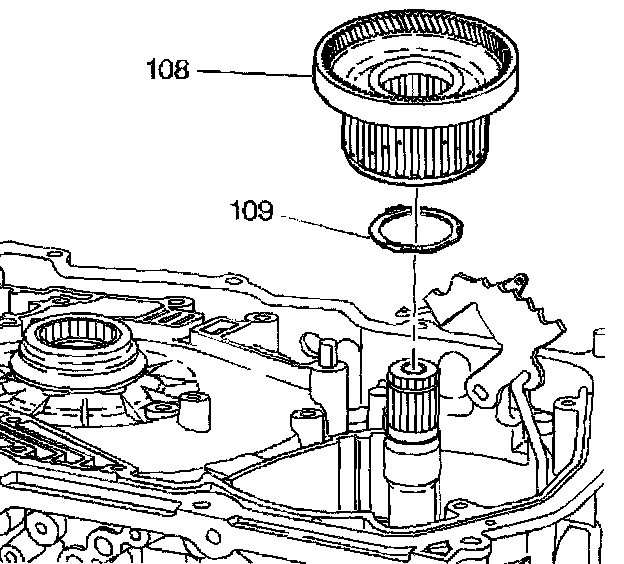

1. Remove the input internal gear and forward clutch hub assembly (108).
2. If the forward clutch hub to race thrust washer (109) did not remain with the forward clutch hub, remove the forward clutch hub to race thrust washer (109).
