Home >> Saturn >> 2006 >> ION L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Compartment Views >> Front of Engine

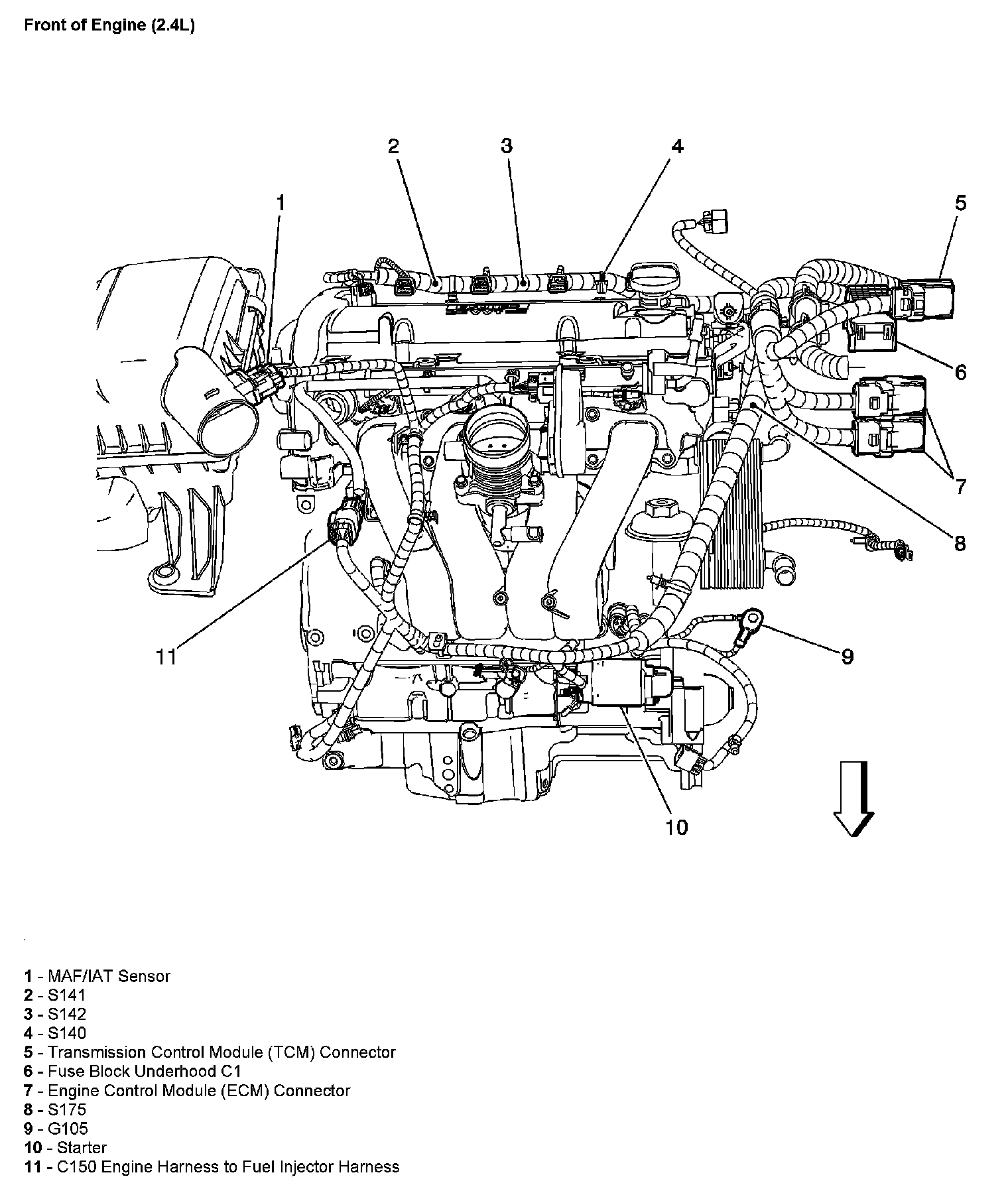

Front of Engine

Front Of Engine:
