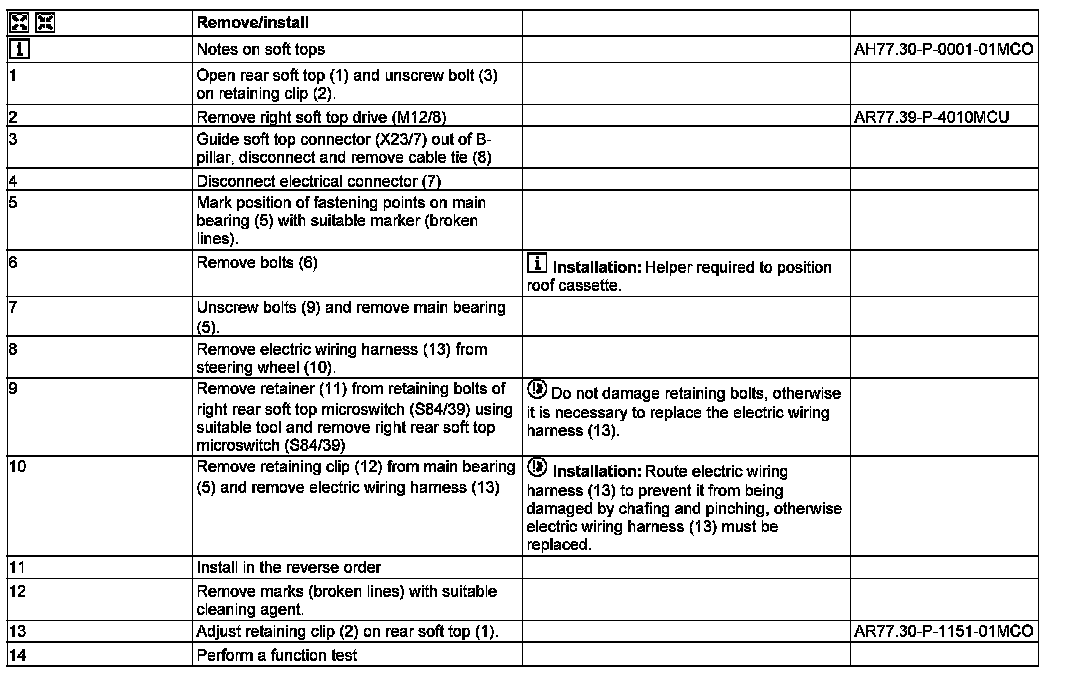

AR77.30-P-1108MCV Remove/Install Soft Top Main Bearing

AR77.30-P-1108MCV Remove/Install Soft Top Main Bearing

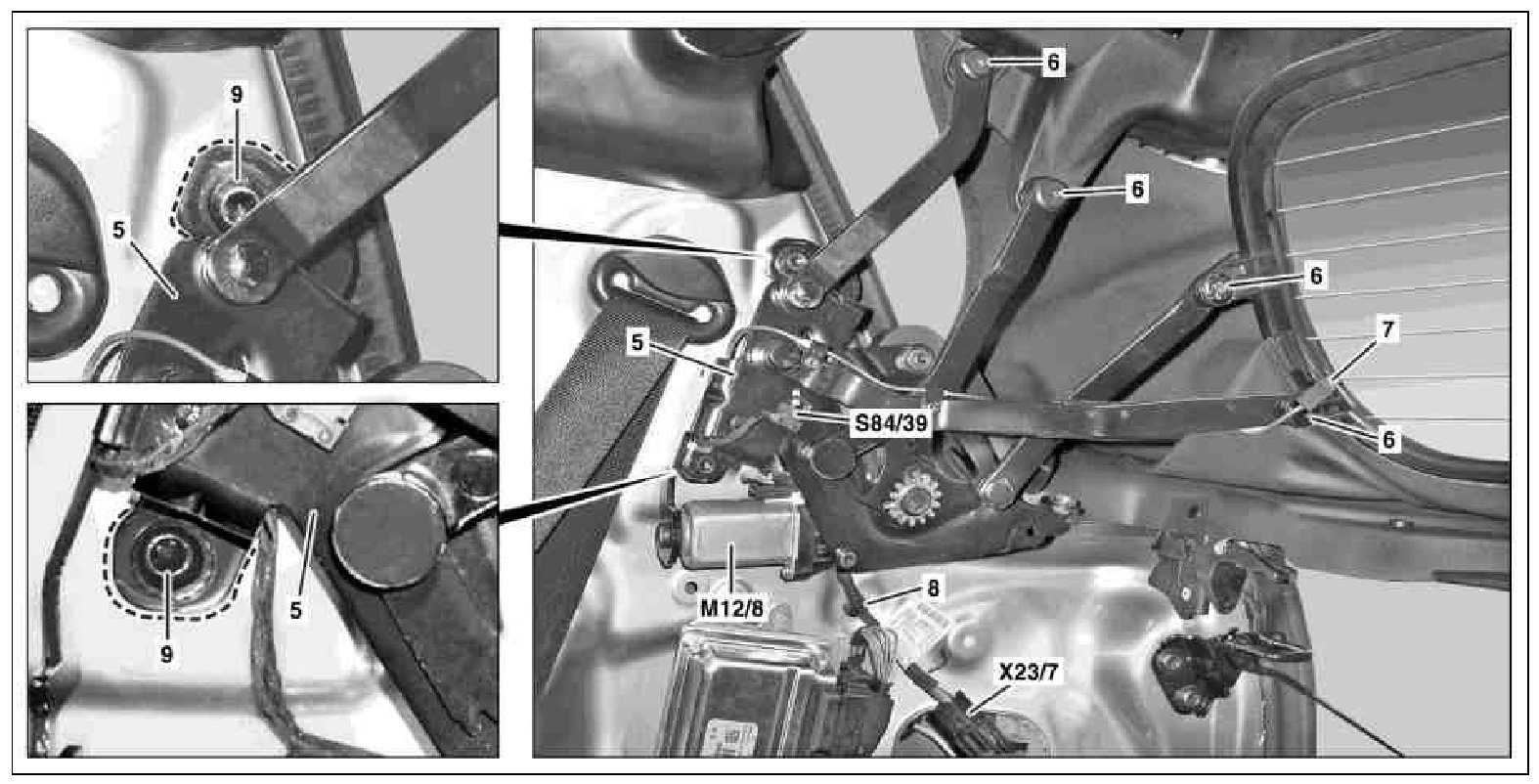

- Right main bearing







1 Rear soft top
2 Retaining clamp
3 Screw
4 Nut







5 Main bearing
6 Screw
7 Electrical connector
8 Cable tie
9 Screw
M12/8 Right soft top drive
S84/39 Right rear soft top microswitch
X23/7 Soft top connector

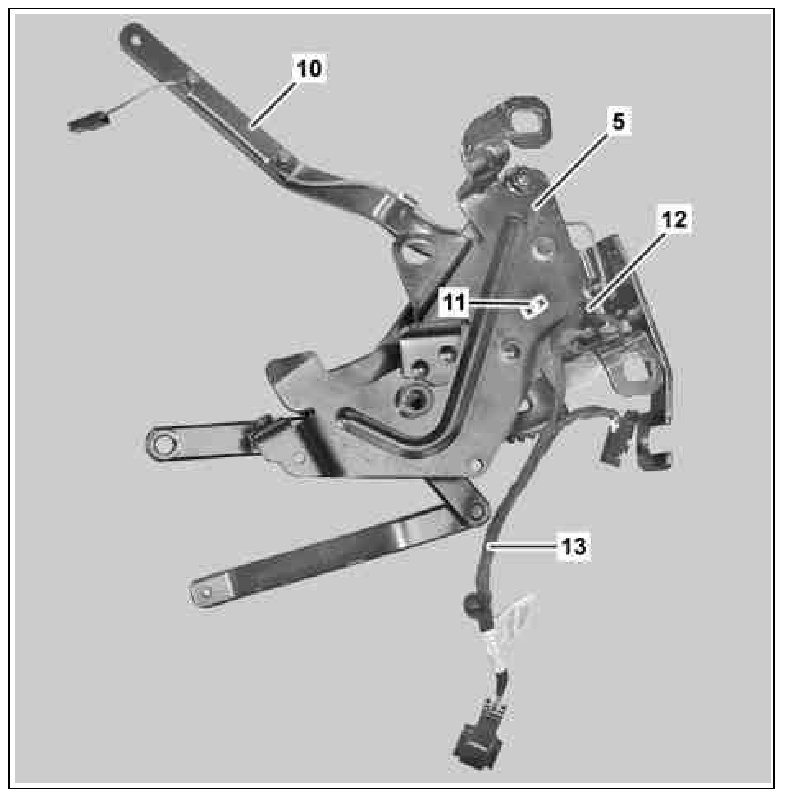

5 Main bearing
10 Rod
11 Retainer
12 Retaining clip
13 Wiring harness
