Air Injection Vacuum Control Solenoid Valve: Testing and Inspection

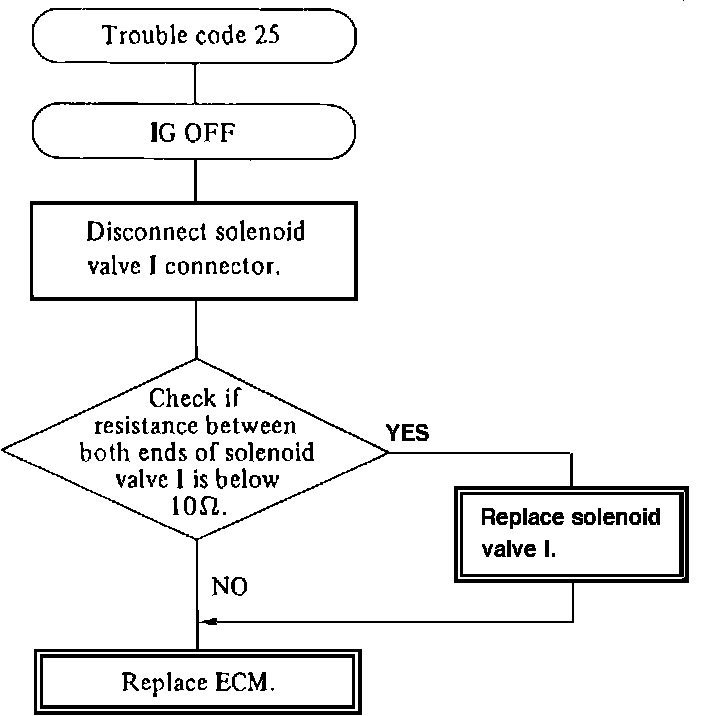

Fig.23b ECC Troubleshooting-Trouble code 25:

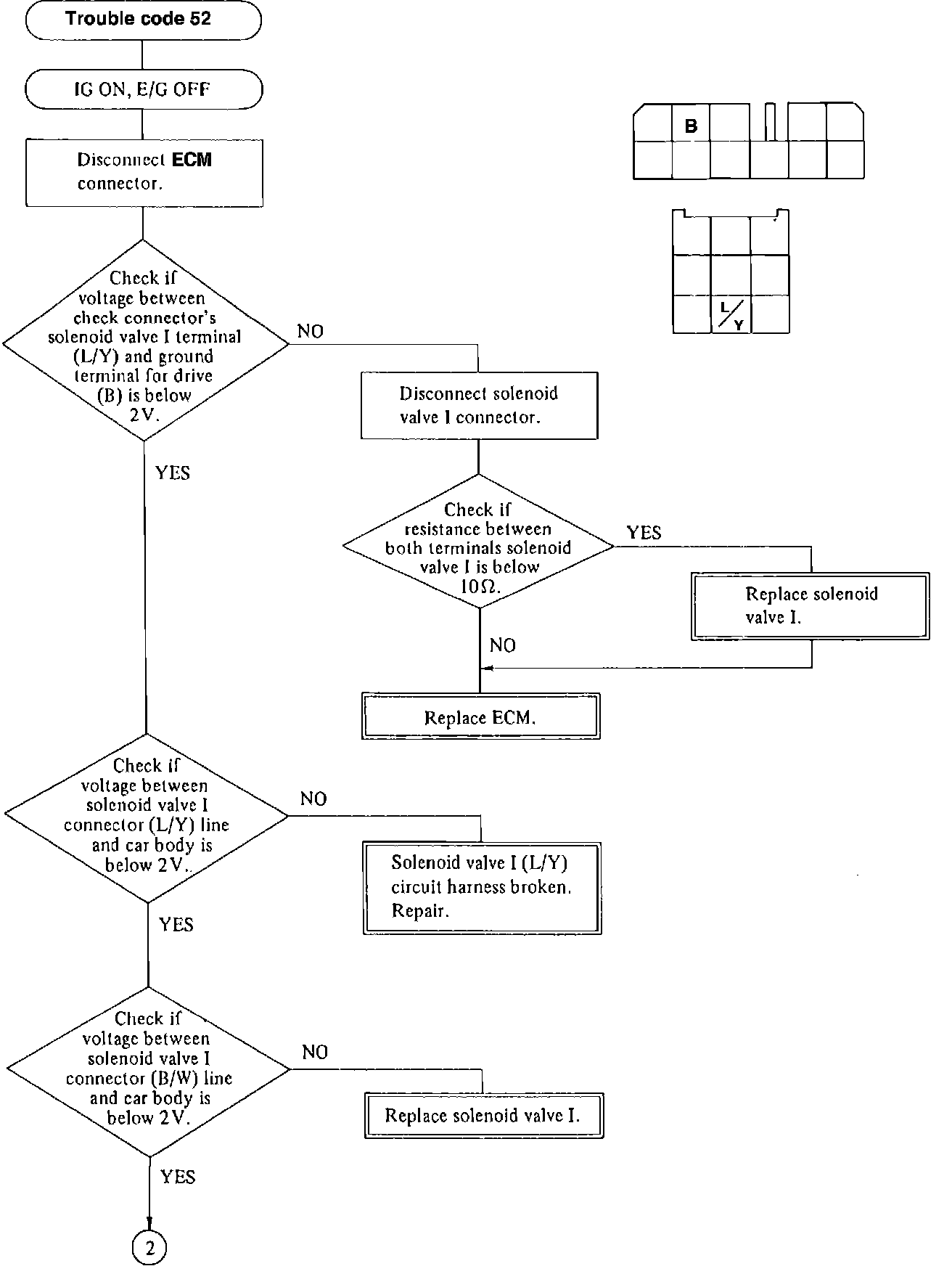

Fig.37 ECC Troubleshooting-Trouble code 52:

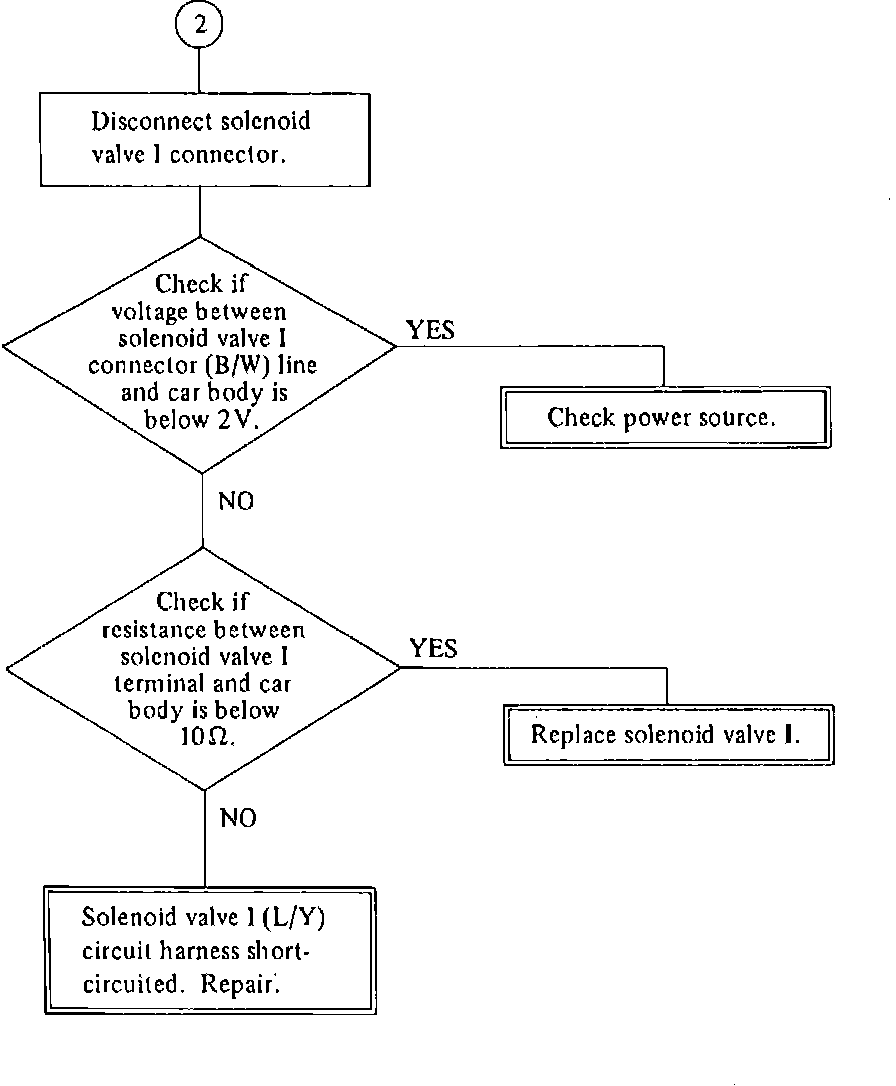

Fig.38 ECC Troubleshooting-Trouble code 52:
