Drive Belt: Service and Repair

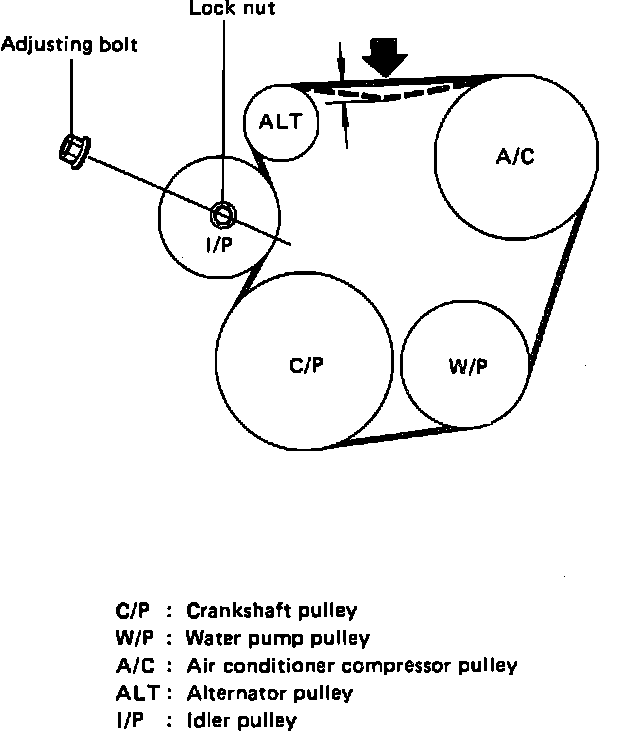

Fig. 60 Drive Belt Routing & Tension Data:

1. Loosen idler pulley locknut, Fig. 60, then slide pulley to release belt tension.
2. Remove drive belt.
3. Install drive belt. When proper belt tension is achieved, as specified in Fig. 60, tighten idler pulley locknut.
4. For new belt installation, readjust belt tension to specifications after running engine for five minutes.
