Cruise Control Servo Cable: Adjustments

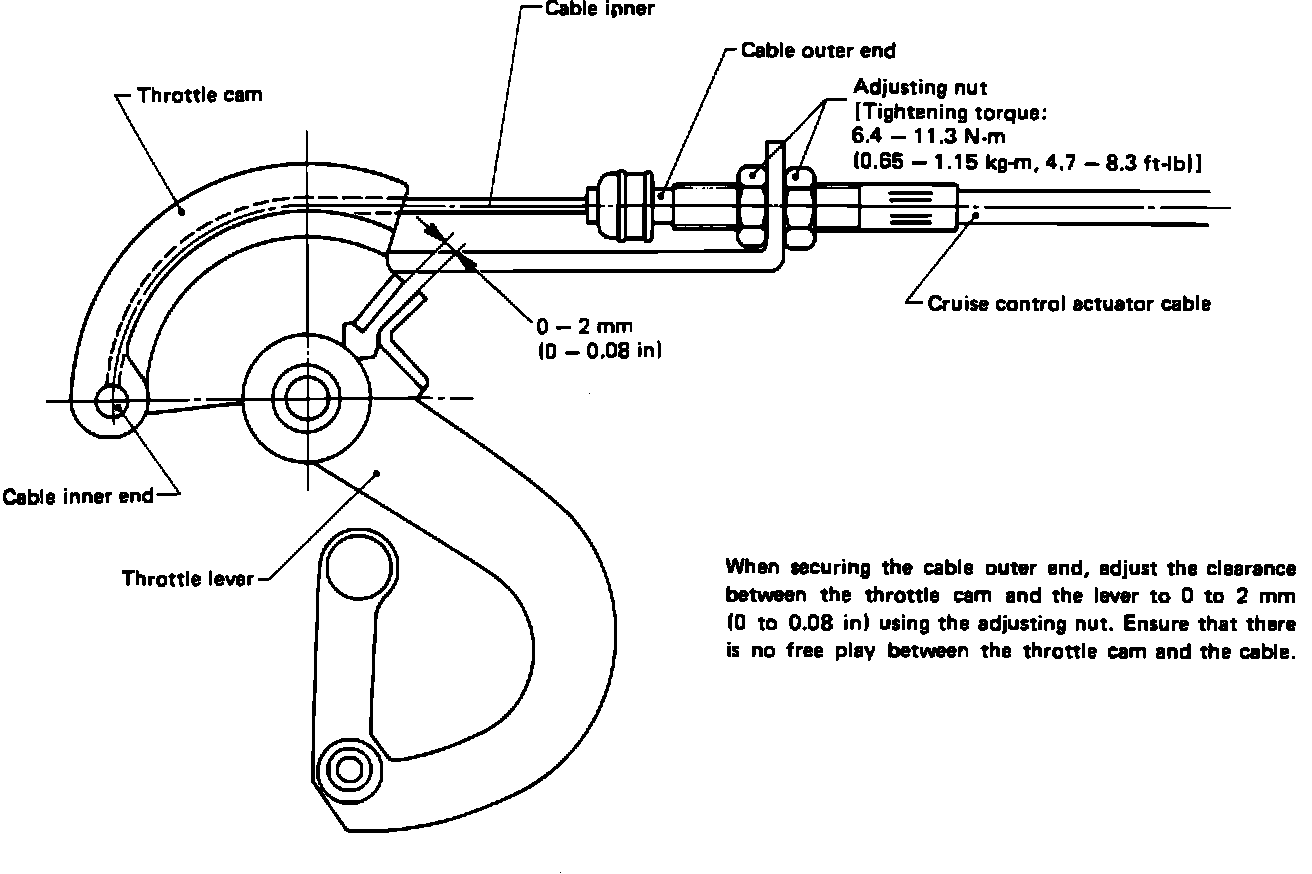

Fig. 21 Control Cable Adjustment:
Refer to
Fig. 21,
when adjusting the control cable.
Use caution not to bend the cable sharply, or crush the inner cable when installing the cam.
