Home >> Subaru >> 1992 >> Legacy Sedan 2WD F4-2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo Cable >> Adjustments

Cruise Control Servo Cable: Adjustments

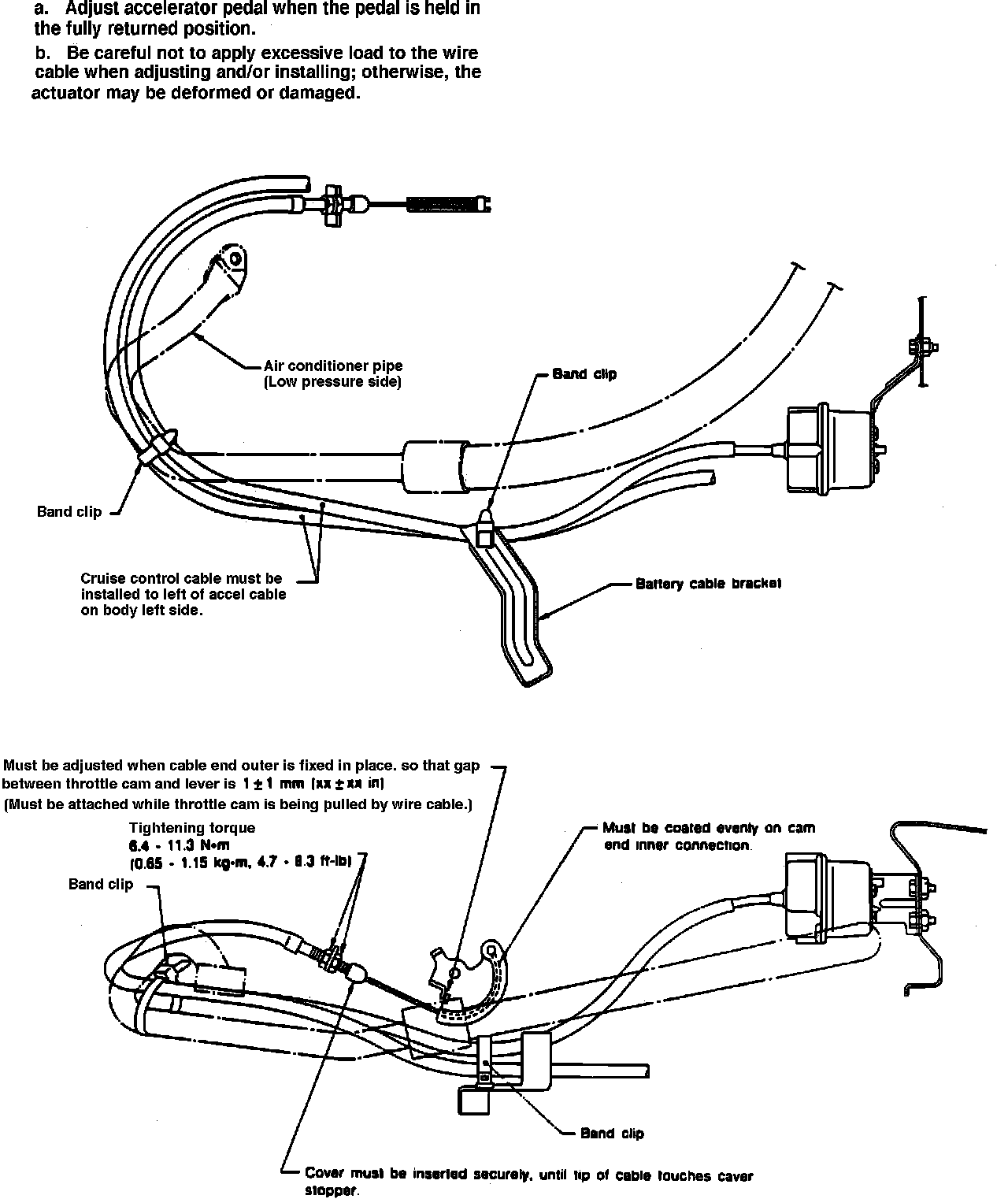

Fig. 20 Control Cable Adjustment:
