Condenser Fan: Testing and Inspection

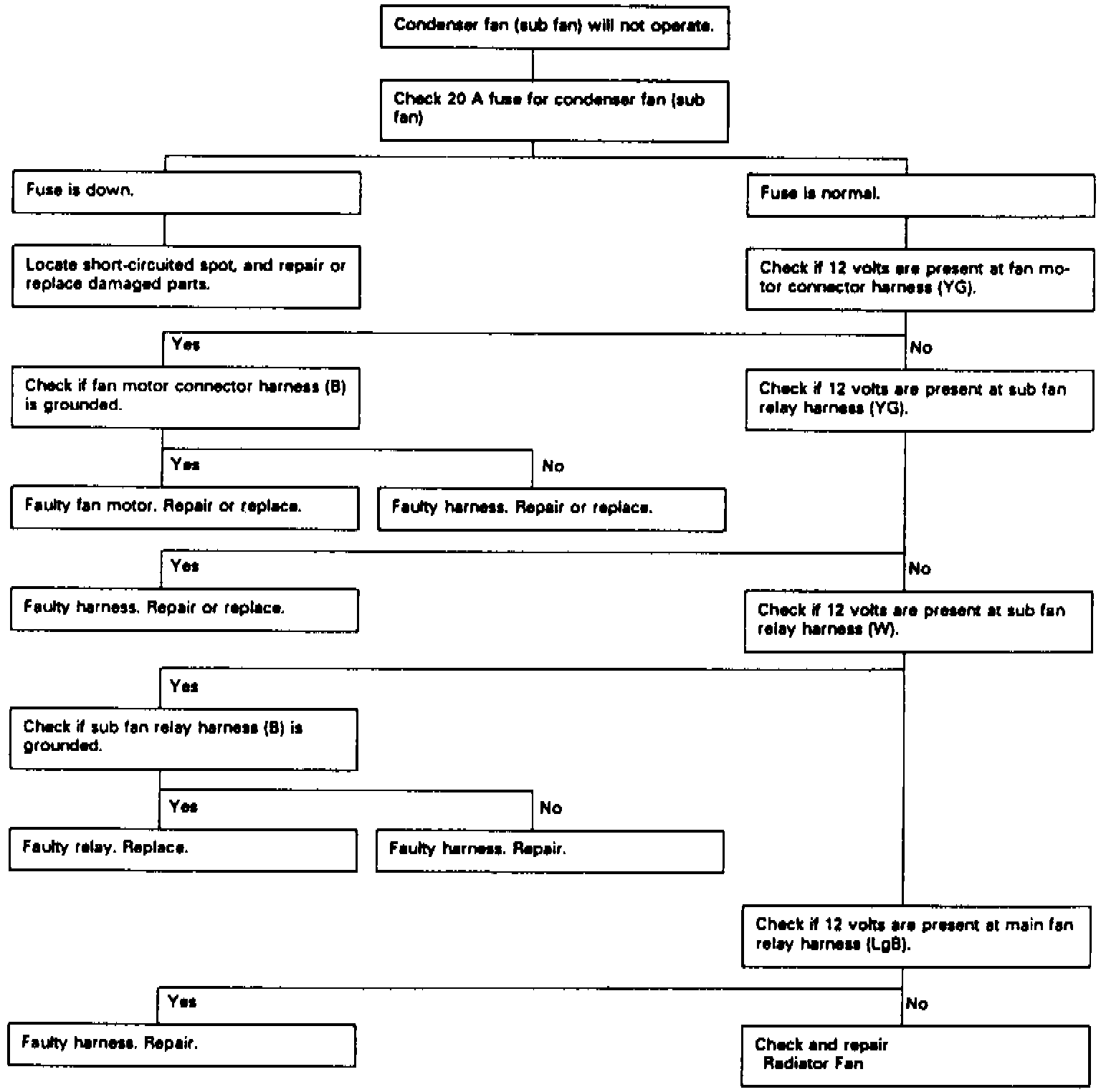

Fig. 7 Condenser Fan Diagnosis (Fan Will Not Operate):
Fig. 9 Condenser Fan Diagnosis (Fan Speed Does Not Change):
Refer to Figs. 7 and 9, for condenser fan diagnosis.
Refer to Figs. 7 and 9, for condenser fan diagnosis.
