Air Injection Check Valve: Testing and Inspection

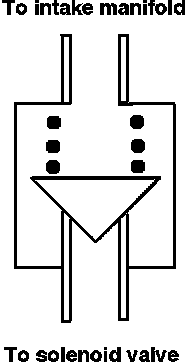

Check Valve:

1. Apply vacuum to the intake manifold fitting of the valve. Vacuum should not hold.
2. Apply vacuum to the solenoid fitting of the valve. Vacuum should hold.
3. Replace the valve if it fails the above tests.
